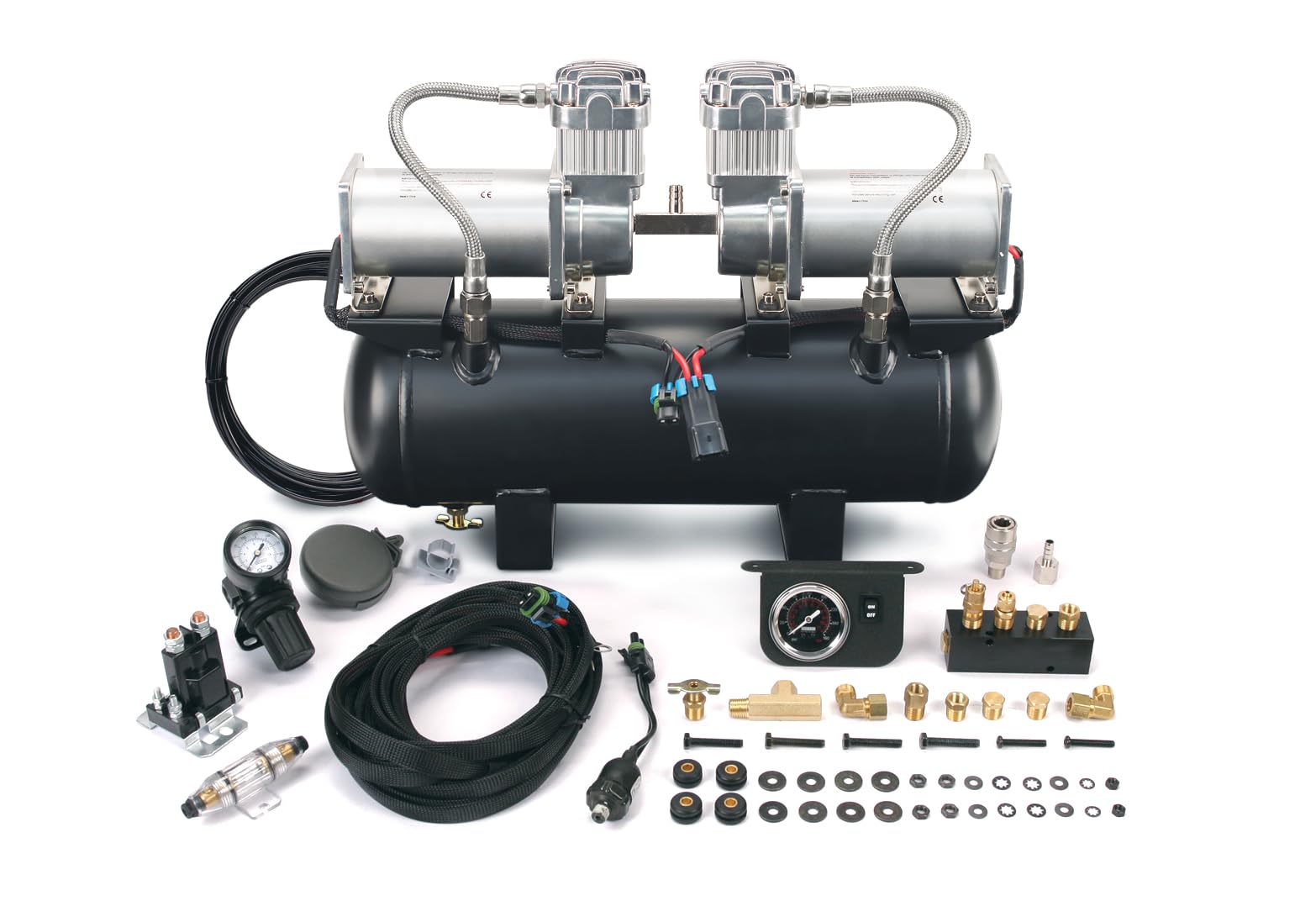

Mounted to a 2.0 gallon, 5-port air tank, two high output compressors are included to install a high speed onboard air system that provides maximum pressure of 150 PSI.
All 2ON2 systems come complete with an easy-to-install wiring harness and manifold to make plumbing and wiring the system straightforward.
SPECIFICATIONS – 12-Volt – Permanent Magnetic Motor – Duty Cycle: 33% @ 100 PSI – Max.
Working Pressure: 150 PSI – Max.
Amp Draw: 59 Amps – Ingress Protection Rating: IP67 – Dimensions: 18.5″L x 5.9″W x 13.5″H – Net Weight: 30 lbs.
PRE-INSTALLED – 2.0 Gallon 5-Port Air Tank – (2) 400C Air Compressors – (2) 1/4″ Stainless Steel Braided Leader Hoses – (2) 1/4″ JIC Fittings on Leader Hoses – 1/4″ NPT Swivel to 1/4″ NPT Swivel – T-Fitting (Remote Mount Filter) – 1/4″ NPT Drain Cock – Sealed Pressure Switch with Delphi Connectors (110 PSI On, 145 PSI Off) (2) Loomed Compressor Wires Terminated with Delphi Connectors – Inline Fuse Holder with Fuse – 1/4″ NPT Safety Valve – (4) 1/4″ NPT M Recessed Plugs INCLUDED IN KIT – 60-amp Fuse & Fuse Holder – 80-amp Relay – (2) 1/4″ BSP Adapters for Air Lockers – T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M – 1/8″ to 1/4″ NPT Reducer – Wiring Harness with Delphi Connectors – (2) Delphi Connector Plug Kits – Billet 1/4″ NPT x 6-Port Manifold and Mounting Bracket – Air Filter Housing with Installed Element – (2) Replacement Air Filter Elements – Dash Panel Air Pressure Gauge (0-160 PSI Illuminated) – Air Pressure Regulator – 15ft.
DOT Air Line PERFORMANCE DATA PSI CFM A BAR LPM A 0 4.55 39 0 129.0 39 10 4.18 40 1.0 115.6 41 20 3.96 42 2.0 106.5 45 30 3.74 45 3.0 96.6 47 40 3.50 46 4.0 86.4 50 50 3.25 48 5.0 78.4 53 60 3.00 50 6.0 70.8 58 70 2.83 52 7.0 64.0 57 80 2.60 55 8.0 57.5 54 90 2.46 59 9.0 50.6 52 100 2.28 57 10.0 43.7 50 110 2.12 55 120 1.97 53 130 1.80 52 140 1.60 51 150 1.48 49 * Supply Voltage: 13.8 Volts FILL RATES 2.0 GALLON TANK FILL RATE 0 to 145 PSI 1 min.
00 sec.
(± 05 sec.) 110 to 145 PSI 20 sec.(± 03 sec.) 37″ X 12.5″ FILL RATE 0 to 30 PSI 3 min.
25 sec.
(± 10 sec.) 15 to 30 PSI 1 min.
40 sec.
(± 05 sec.) 40″ X 15.5″ FILL RATE 0 to 30 PSI 3 min.
35 sec.
(± 10 sec.) 15 to 30 PSI 1 min.
45 sec.
(± 05 sec.)
