Compressors of industrial grade (IG) feature an innovative head design that is patents pending for better heat dissipation and are specifically designed to fill reservoir tanks.
All compressors IG are certified CE spec.
and feature outstanding sealing properties against the elements.
Additionally, all compressors IG are equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.
This unit is oil-less and rated at 28.0 volts to a charging car battery.

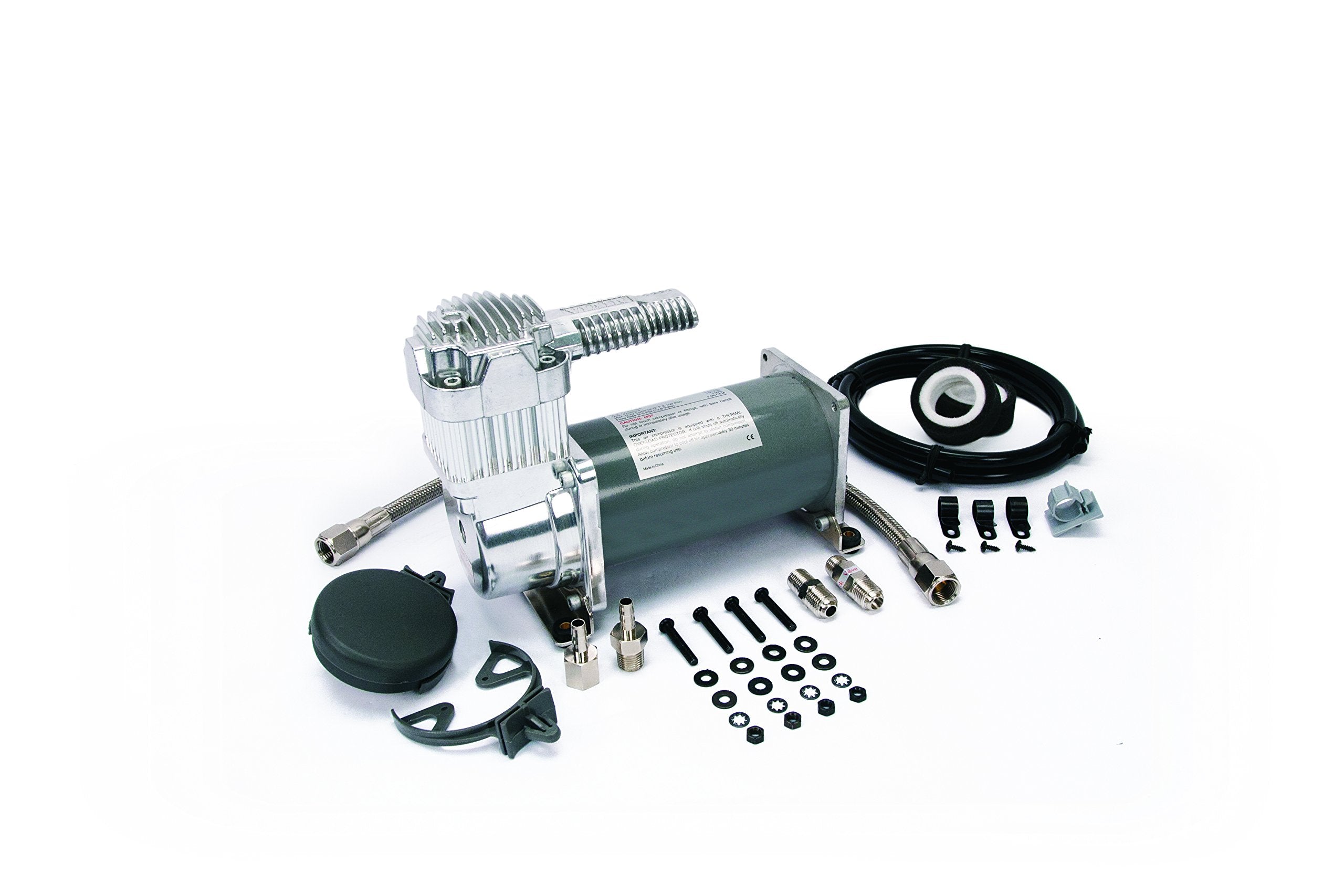

FEATURES – Vibration Isolators – Mounting Hardware – Heavy Duty 1/4” NPT Check Valve – Stainless Steel Braided PTFE-Lined Leader Hose – Air Line for Remote Mount Air Filter – Remote Mount Air Filter Assembly – (2) Replacement Air Filter Elements – Installation Instructions SPECIFICATIONS 24-Volt – Permanent Magnetic Motor – Duty Cycle: 100% @ 100 PSI – Max.
Working Pressure: 150 PSI – Max.
Air Tank Size: 5.0 Gallon – Max.
24V Amp Draw: 9 Amps – Ingress Protection Rating: IP67 – Max.
Ambient Temp: +158°F – Min.
Ambient Temp: -40°F – Dimensions: 9”L x 4”W x 6.75”H – Net Weight: 8.25 lbs.
PERFORMANCE DATA 24-Volt Compressor PSI CFM A BAR LPM A 0 1.16 4 0 33.0 4 10 1.05 5 1.0 28.5 5 20 0.95 5 2.0 25.1 6 30 0.88 6 3.0 22.6 6 40 0.81 6 4.0 21.2 7 50 0.78 6 5.0 20.0 7 60 0.74 7 6.0 19.0 7 70 0.71 7 7.0 17.7 8 80 0.69 7 8.0 16.5 9 90 0.66 7 9.0 15.0 9 100 0.63 8 10.0 13.5 8 110 0.60 8 120 0.57 9 130 0.53 9 140 0.49 8 150 0.46 8 * Supply Voltage: 28.0 Volts FILL RATE 24-Volt Compressor 2.5 Gallon Tank Fill Rate 0 to 105 PSI 3 min.
09 sec.
(± 10 sec.) 85 to 105 PSI 45 sec.
(± 05 sec.) 0 to 145 PSI 5 min.
00 sec.
(± 10 sec.) 110 to 145 PSI 1 min.
31 sec.
(± 05 sec.) 5.0 Gallon Tank Fill Rate 0 to 105 PSI 6 min.
20 sec.
(± 10 sec.) 85 to 105 PSI 1 min.
26 sec.
(± 05 sec.) 0 to 145 PSI 10 min.
00 sec.
(± 15 sec.) 110 to 145 PSI 3 min.
12 sec.
(± 10 sec.)
