Air Lift's 1000 Series Rear Air Spring kit is the inexpensive, easy solution to vehicle 'bottom out' events, body roll, sway, and rough rides that are often the result of inadequate or uneven rear suspension.

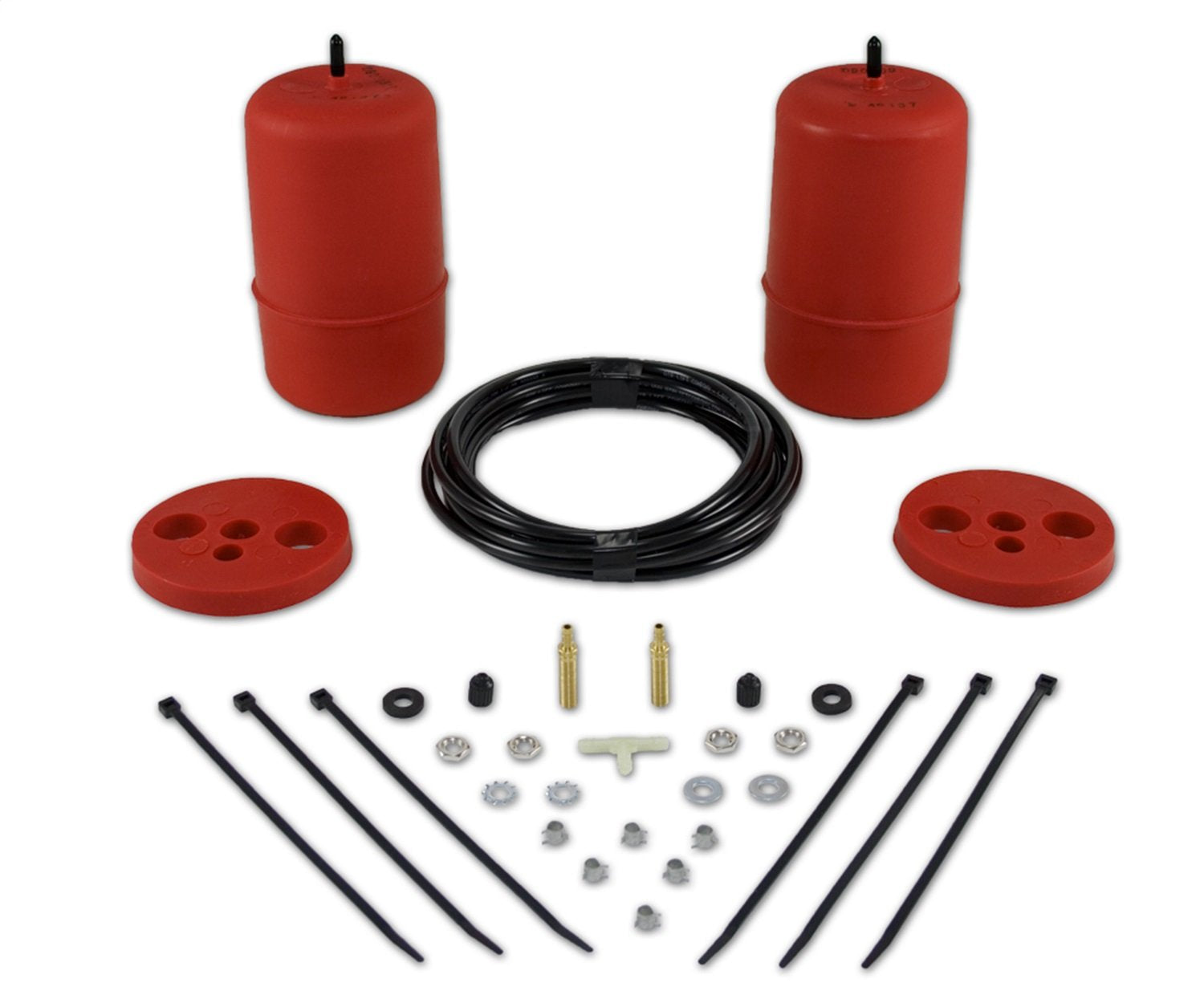

This kit consists of two durable, easy to install and use pressurized cylinders, providing up to 1,000 pounds of load leveling power on each rear wheel, ensuring a smooth, safe, and level ride when needed.
Simple in-coil installation is possible.
Inflate via easy access air line.
Air Lift 1000 Series Air Springs are pressurized air cylinders designed to provide up to 1,000 pounds of additional leveling capacity to heavily loaded vehicles.
The two air springs included in Air Lift's 1000 Series Rear Air Spring kit work in tandem to support your vehicle's rear suspension.

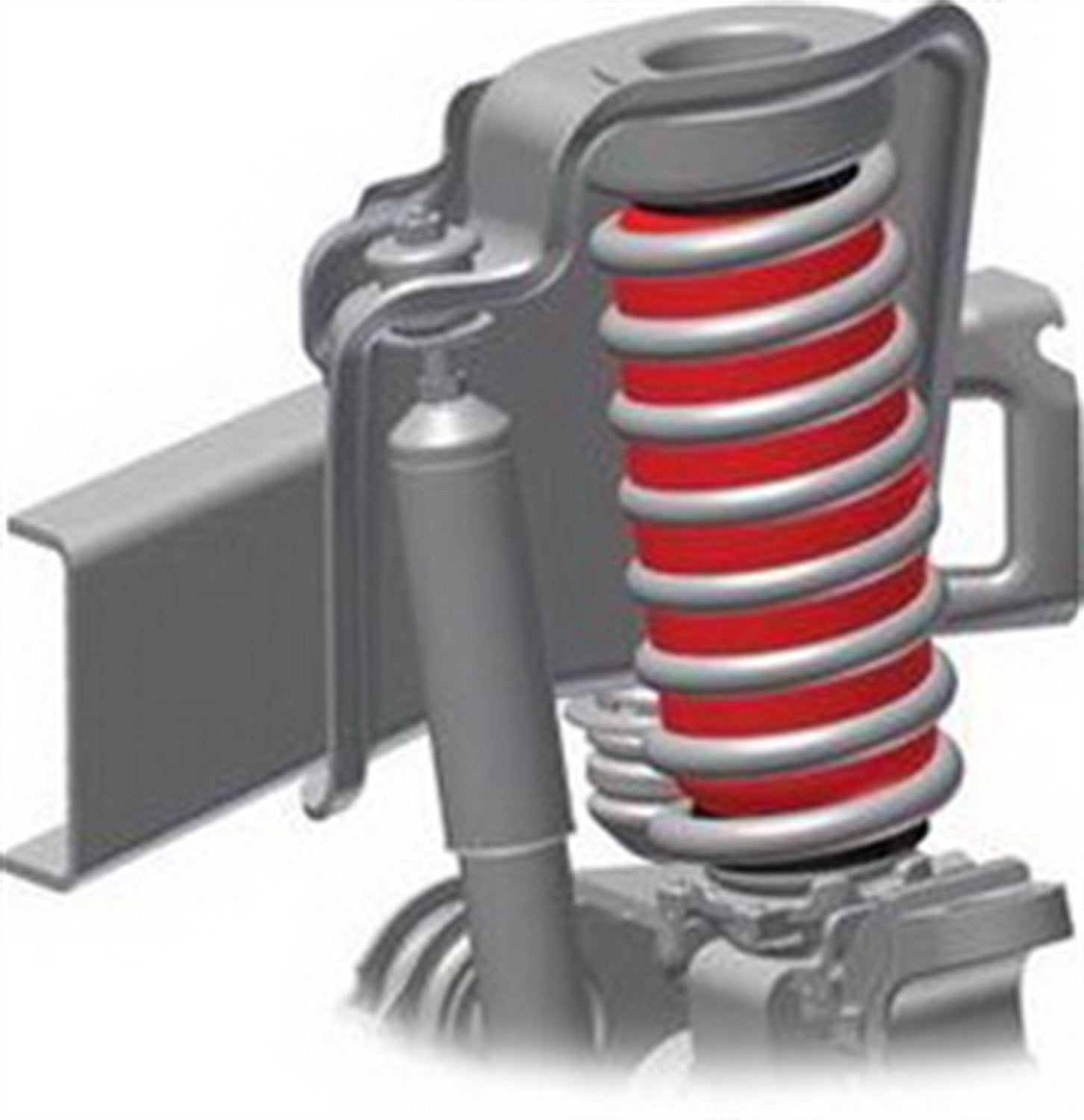

Installed within your vehicle's standard coil springs when deflated and malleable, these cylinders can be inflated to up to 50-psi (minimum of 5-psi to avoid chafing and coil pinch) via a series of included air line tubing located by the user at the most convenient spot along the vehicle chassis.
Air lines may also be arranged in a dual routing configuration, allowing the two air springs to be inflated to different pressures if necessary, at different spots selected along the car's chassis.
Inflation can be done with any air compression tool capable of delivering the pressure, ranging from a dedicated onboard air compression system to portable air compression tools built into jump-start tools or even a hand pump.
The cylinders are constructed of rugged, durable materials and feature high burst strength.
You can achieve rear-end suspension adjustment easily and inexpensively with Air Lift's 1000 Series Rear Air Spring kit.
Features fully adjustable rear air springs level your vehicle when towing or hauling a heavy load for a comfortable ride.
Easily installs inside your vehicle's standard rear coil springs to eliminate sag and bottoming out.
Rugged durable materials ensure that air springs and all hardware will last indefinitely under proper conditions.
Inflatable to an absolute max of 50-psi, with a minimum of 5-psi, and provides up to 1,000 pounds of leveling capacity.
Both air springs can be inflated to the same pressure via a single air line or can be inflated to differing pressure when needed via a dual air line configuration.
Lifetime Limited Warranty.
Air Lift Company warrants its Air Lift 1000 products to the original retail purchaser against manufacturing defects when used on catalog-listed applications on cars, vans, light trucks, and motor homes under normal operating conditions for as long as Air Lift manufactures the product.
The warranty does not apply to products that have been improperly applied, improperly installed, used in racing or off-road applications, used for commercial purposes, or which have not been maintained in accordance with installation instructions furnished with all products.
