C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length

$19.18 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Gates Corporation
Gates C5C Hydraulic Hose has a length of 385 feet.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length
C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length
View Detail
Type
Air Tool Parts & Accessories
Title
C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length
Price
$19.18 USD
Vendor
Gates Corporation
Description
Recommended for petroleum-base hydraulic oils, glycol antifreeze compounds, engine lubricating oils, and air, the Gates C5C Hydraulic Hose meets SAE 30R2, SAE 30R6, and SAE 30R7 requirements for fuel and B20 biodiesel fuel transfer applications to +125°F.This hose is NOT recommended for applications involving vibration or pressure surges.One braid of high-tensile carbon steel wire reinforces the hose over one braid of polyester.The tube is -4 and -5: black, oil and heat resistant synthetic rubber (Neoprene - Type A); -6 through -40: (Nitrile - Type C).C5 Field Attachable Couplings are the recommended coupling for this hose.The temperature ranges are as follows: Under SAE 100R5 (hydraulic) conditions -40°F to +212°F (-40°C to +100°C).All-purpose fleet applications (hot lube oil lines) -40°F to +300°F (-40°C to +149°C).Air to +160°F (+71°C) only.Continuous use at maximum temperature concurrent with maximum working pressures should be avoided.

More about this item : C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length

Recommended for petroleum-base hydraulic oils, glycol antifreeze compounds, engine lubricating oils, and air, the Gates C5C Hydraulic Hose meets SAE 30R2, SAE 30R6, and SAE 30R7 requirements for fuel and B20 biodiesel fuel transfer applications to +125°F.

This hose is NOT recommended for applications involving vibration or pressure surges.

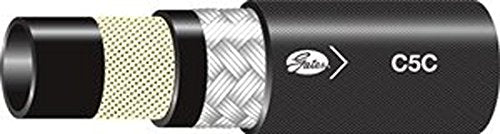

One braid of high-tensile carbon steel wire reinforces the hose over one braid of polyester.

The tube is -4 and -5: black, oil and heat resistant synthetic rubber (Neoprene - Type A); -6 through -40: (Nitrile - Type C).

C5 Field Attachable Couplings are the recommended coupling for this hose.

The temperature ranges are as follows: Under SAE 100R5 (hydraulic) conditions -40°F to +212°F (-40°C to +100°C).

All-purpose fleet applications (hot lube oil lines) -40°F to +300°F (-40°C to +149°C).

Air to +160°F (+71°C) only.

Continuous use at maximum temperature concurrent with maximum working pressures should be avoided.

C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length
Key Features
  • For petroleum-base hydraulic oils, glycol antifreeze compounds, engine lubricating oils, and air
  • Not recommended for applications involving vibration or pressure surges
  • Reinforcement: One braid of fiber
  • Tube: -4 and -5: black, oil and heat resistant synthetic rubber (Neoprene - Type A), -6 through -40: (Nitrile - Type C)
  • Coupling recommendation: C5 field attachable couplings
  • Maximum pressure: 2250
Technical Specifications
  • Length : 16.88 lb
  • Width : 16.0 lb
  • Height : 16.0 lb
  • Weight : 92.4 lb
Product Identifiers
  • ASIN B00KD6PVOQ
  • UPC: 72053227895
Shipping Information
  • Ships From : United States
  • Brand : Gates Corporation

Frequently Asked Questions About : C5C Hydraulic Hose, Gates 6C5CXREEL Synthetic Rubber, SAE 100R5, Maximum Pressure: 2250, -40 degrees F to 300 degrees F Temperature Range, 385' Length

01 What is the maximum pressure of the Gates C5C Hydraulic Hose?

The maximum pressure is 2250.

02 What is the length of the Gates C5C Hydraulic Hose?

The length is 385 feet.

03 What materials is the Gates C5C Hydraulic Hose recommended for?

It is recommended for petroleum-base hydraulic oils, glycol antifreeze compounds, engine lubricating oils, and air.
