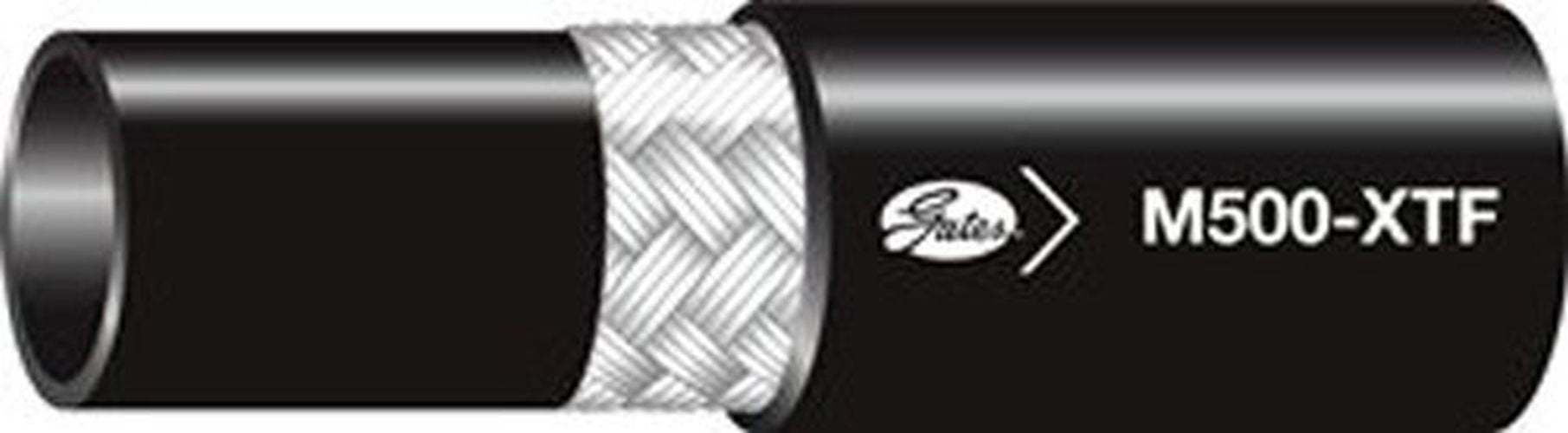

This black wire-braid hydraulic hose from Gates 6M500-XTFXREEL has a 1" inside diameter and a length of 330-ft.
It has a maximum operating pressure of 500 psi for low-pressure applications such as pilot lines, grease lines, and pressure return lines.
The hose meets Flame Resistance Acceptance Designation Mine Safety and Health Administration (MSHA) 2G specifications.
Both the tube and cover are made of black, oil-resistant synthetic rubber.
The XtraTuff cover is resistant to flames, ozone, and UV light and offers up to 25 times more abrasion resistance than a standard hose cover.
Reinforcement is provided by high-tensile steel wire braid between the tube and cover.
Specifications Inside diameter 1" Outside diameter 1.40" Length 330 ft.
Temperature range -40 to +212 degrees F/-40 to +100 degrees C Maximum working pressure 500 psi Minimum burst pressure 2,000 psi Minimum bend radius 6.
