A compact battery switch that offers various installation options.

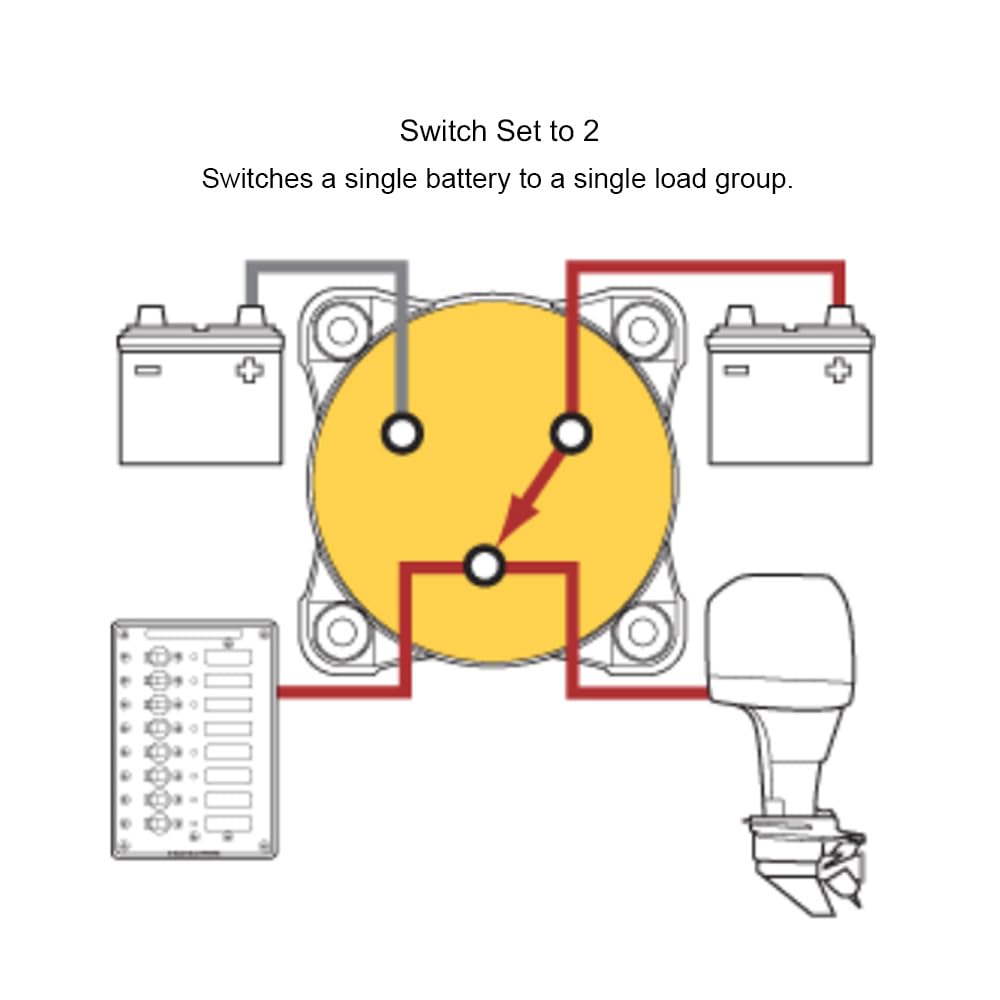

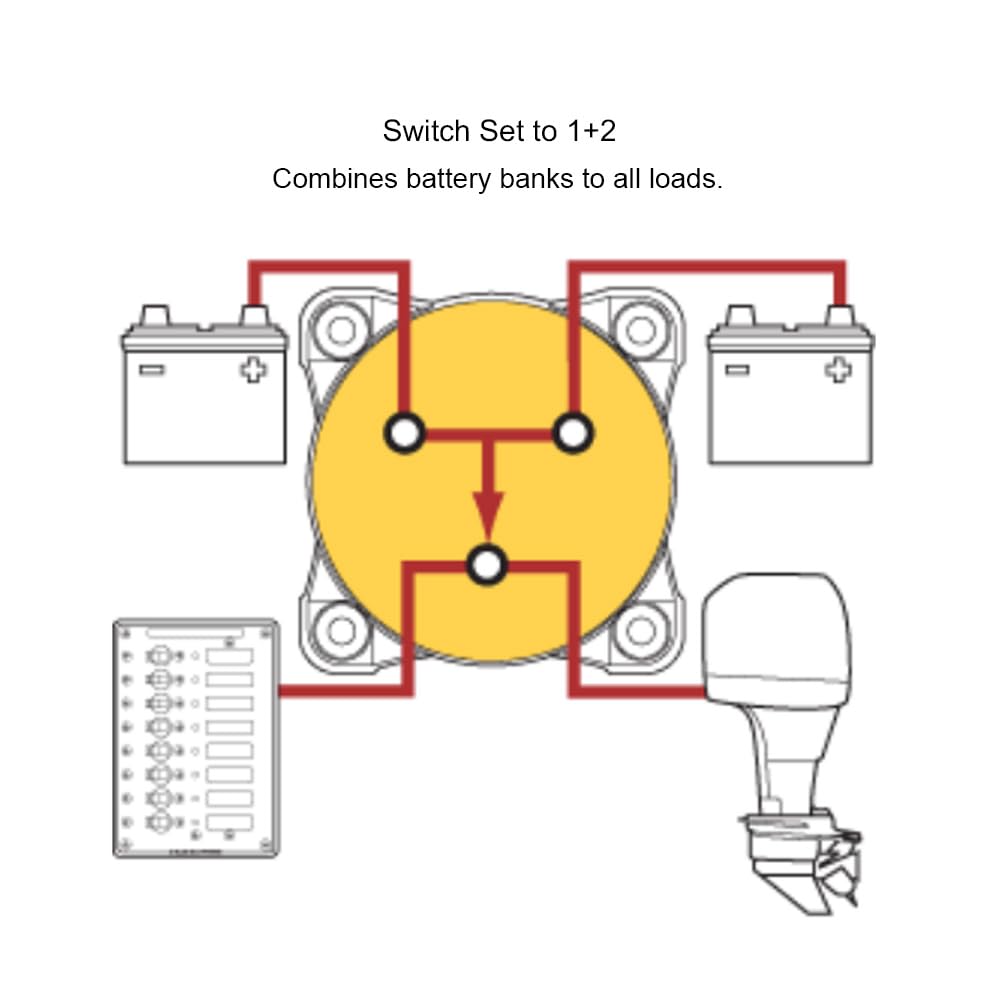

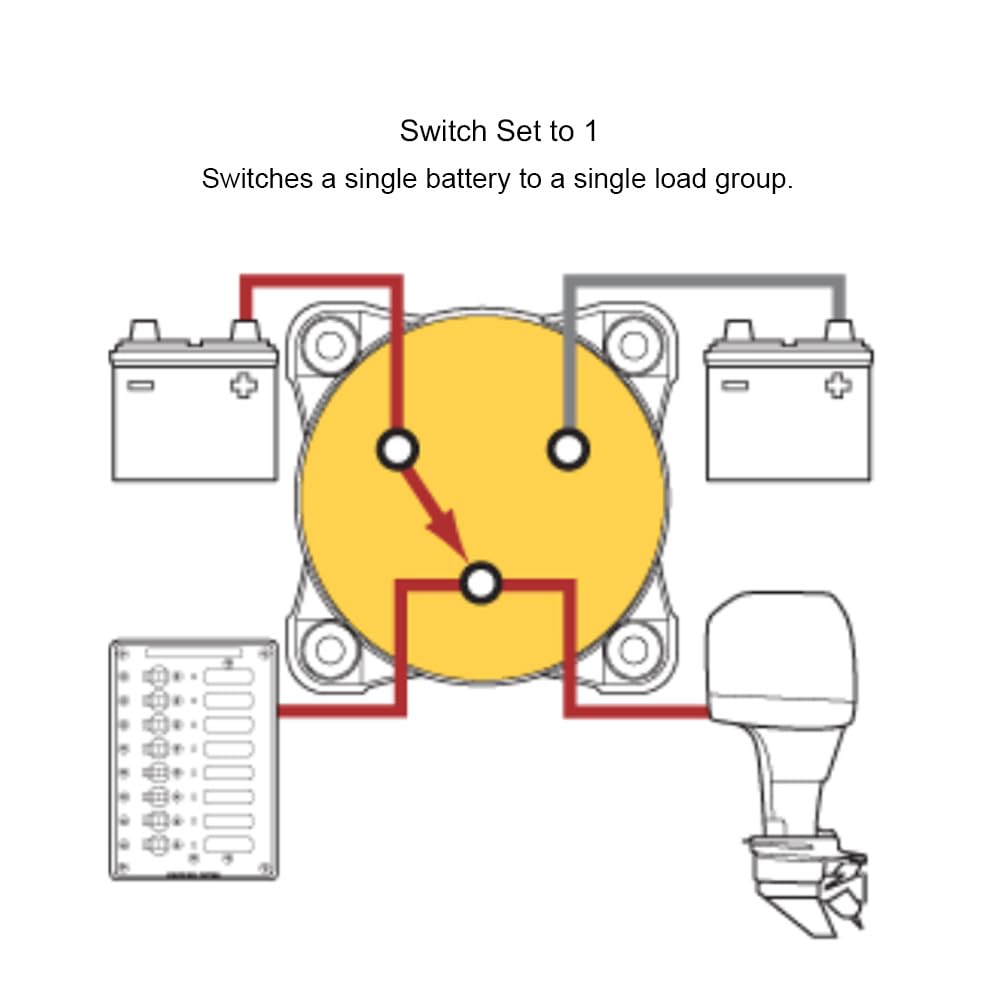

Isolated battery banks can be switched to all loads or battery banks can be combined to all loads.
Blue Sea Systems m-Series battery switches are suitable for small inboard and outboard boats.
Safe for use in engine rooms of gasoline-powered boats, M-Series switches are ignition-protected.

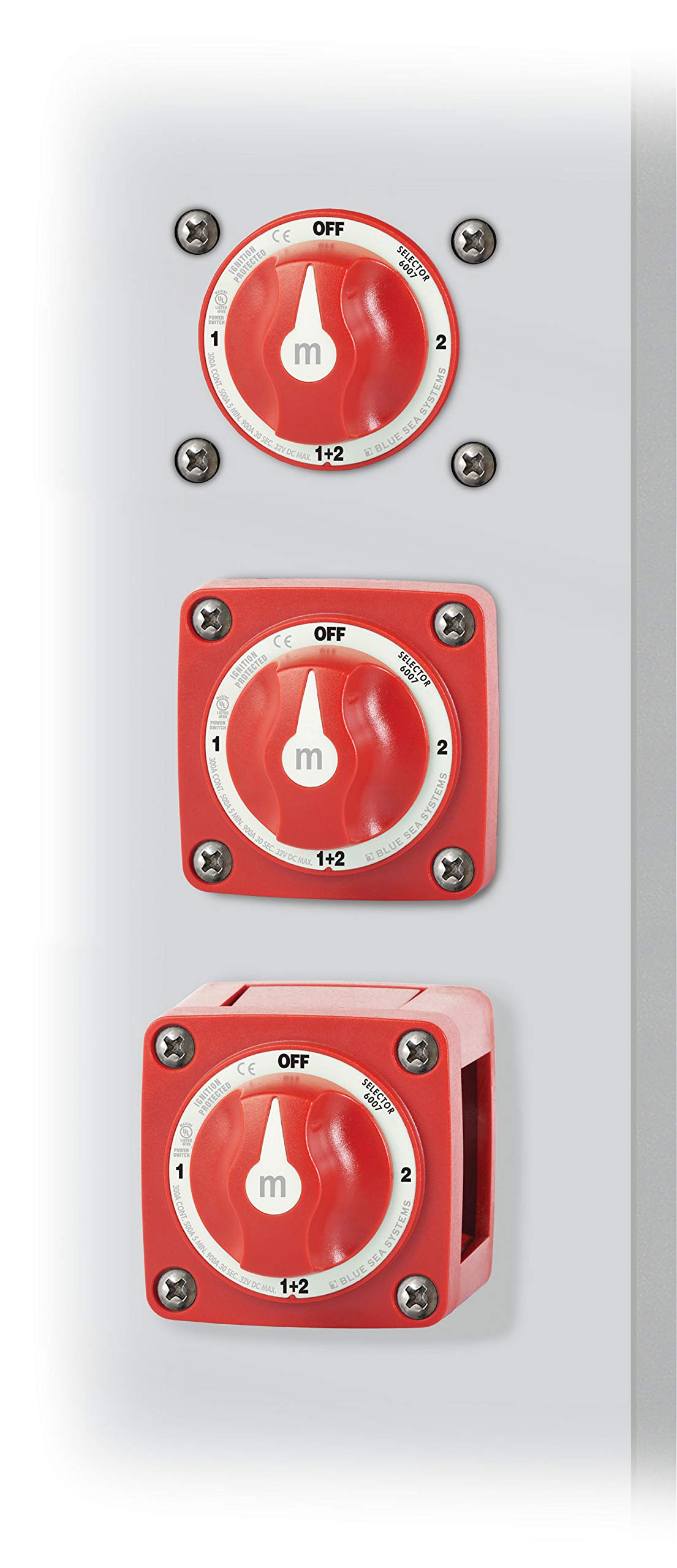

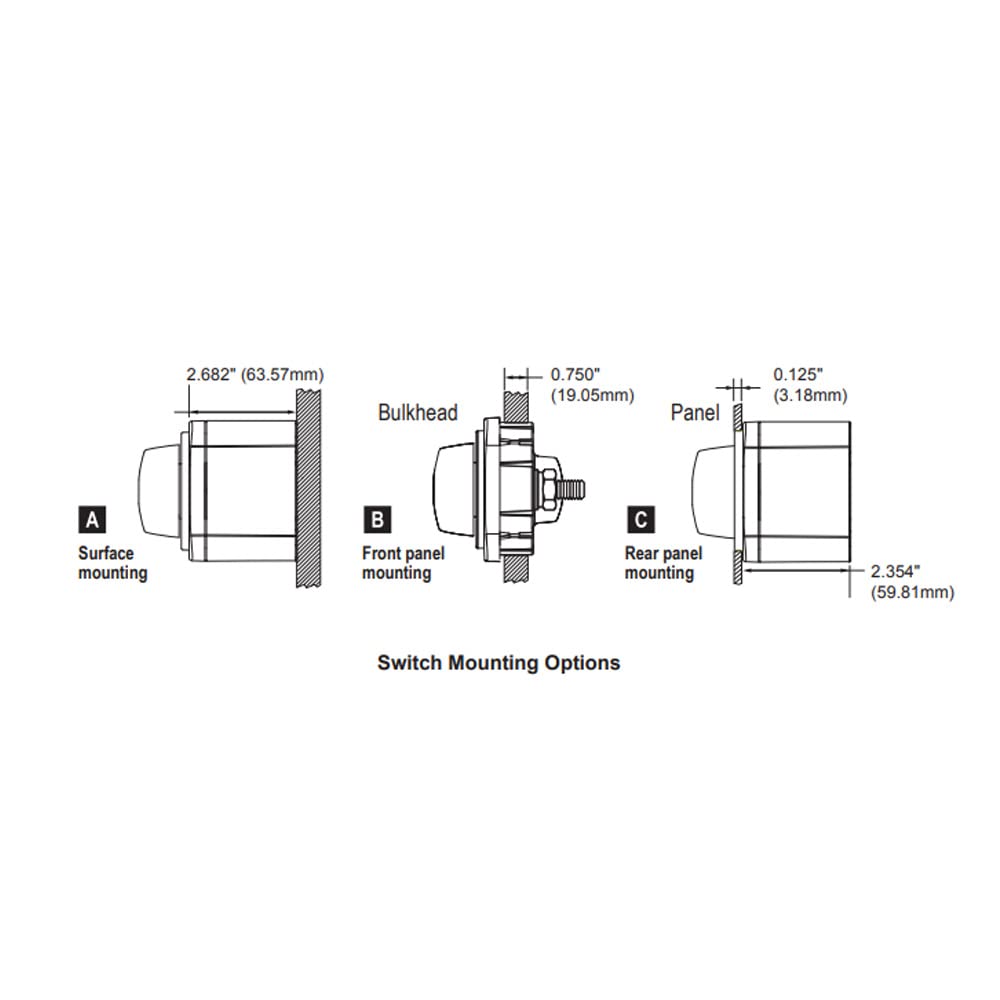

Waterproof and offering three mounting options, they measure just 2-7/8" square.
Almost anywhere will fit m-Series switches.

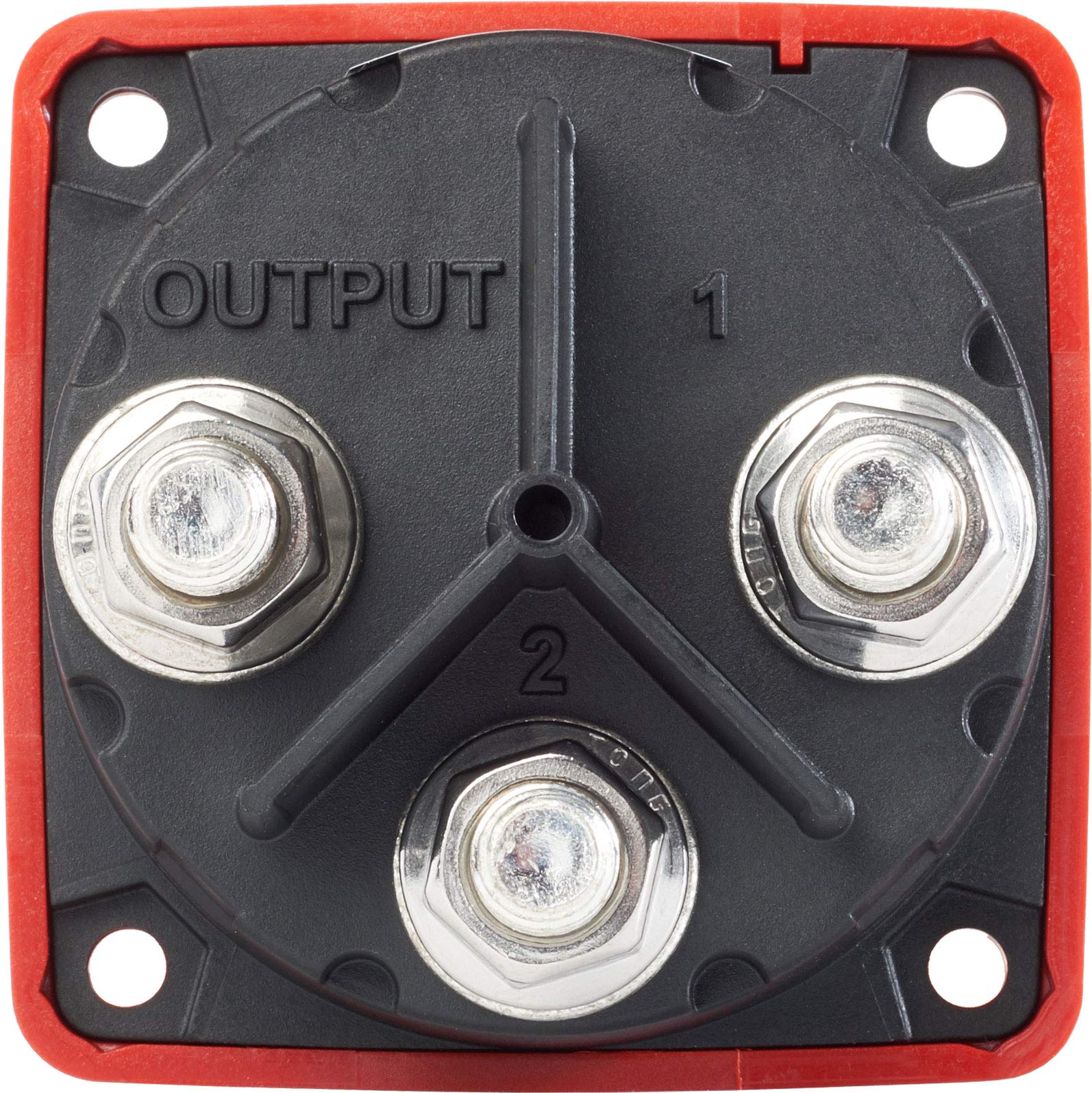

The one-piece tin plated copper terminal studs are 7/8" long and handle multiple cables and the high torque loads needed to maximize contact and minimize resistance.

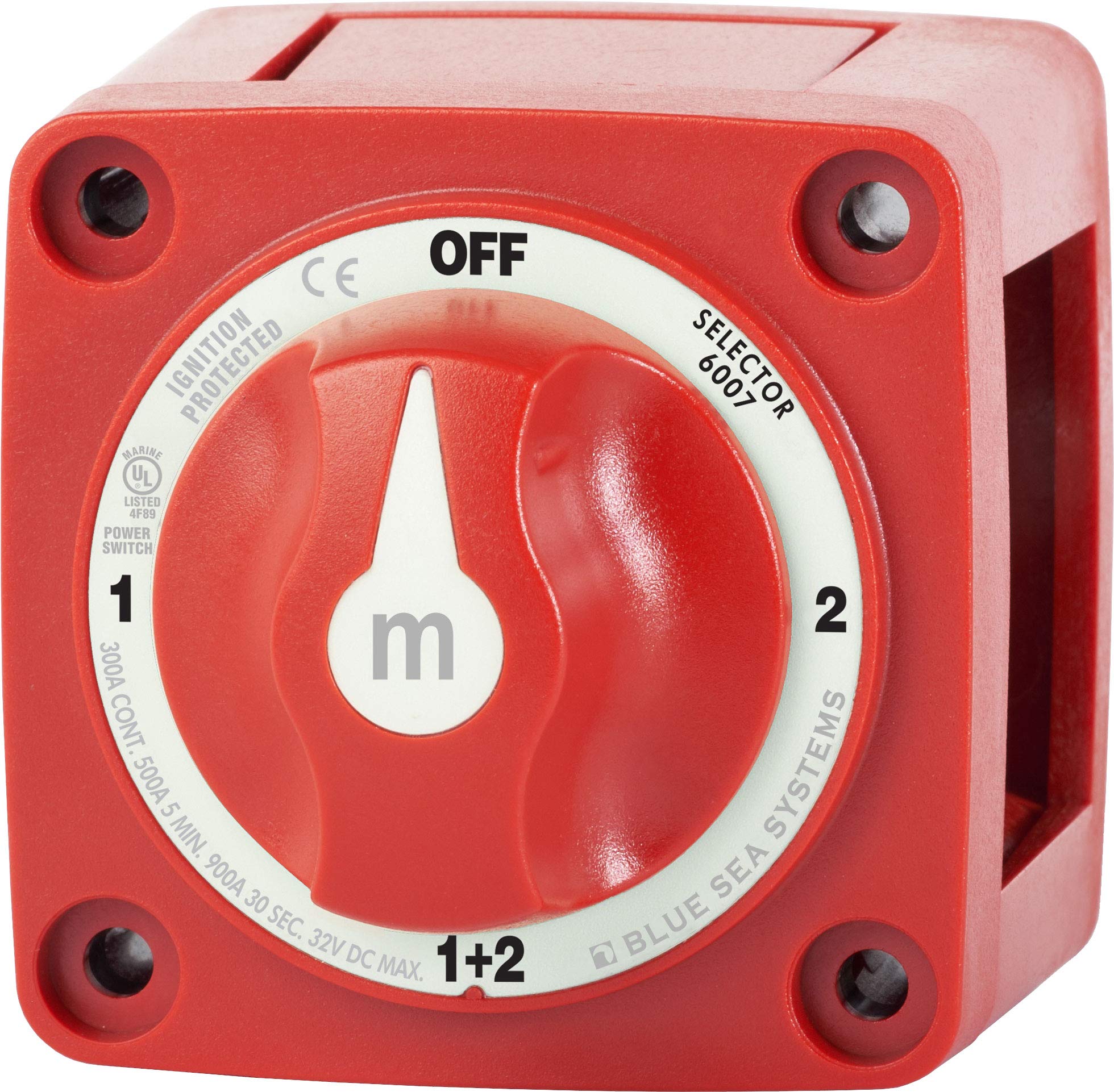

The design of the case allows cables to be run from every direction through knock-out panels on each side.

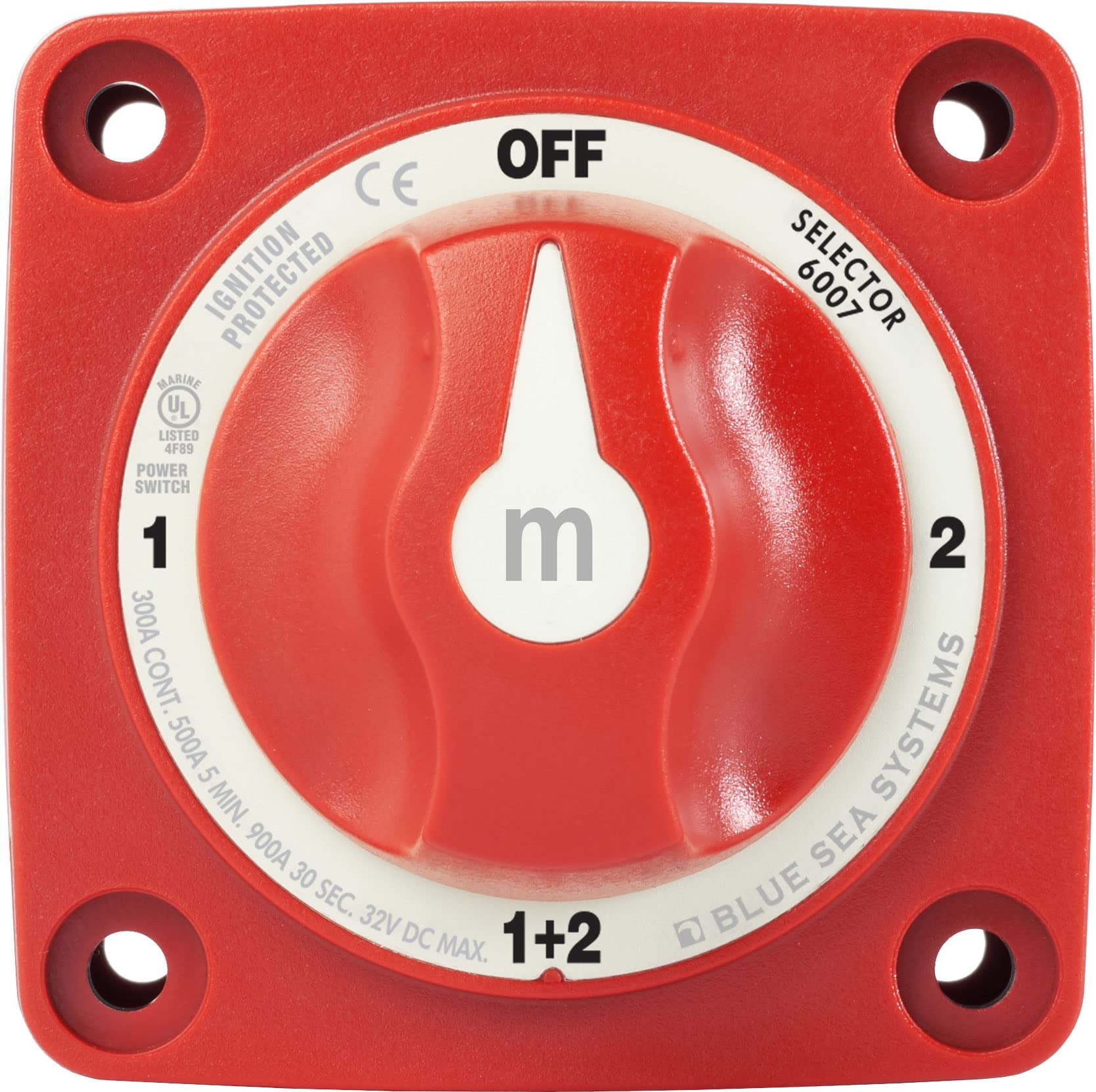

Tactile textures on the face allow you to know the knob position by feel.
To add another level of security, the knob is removable and provides a service lock-out for safety.
