Blue Sea Systems e-Series Battery Switch Dual Circuit Plus, 32V DC, 350A, Red

More about this item : Blue Sea Systems e-Series Battery Switch Dual Circuit Plus, 32V DC, 350A, Red

A compact battery switch that offers various installation options.

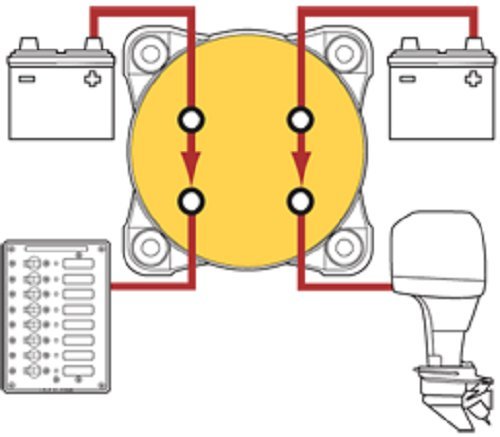

It switches isolated battery banks to all loads or combines battery banks to all loads.

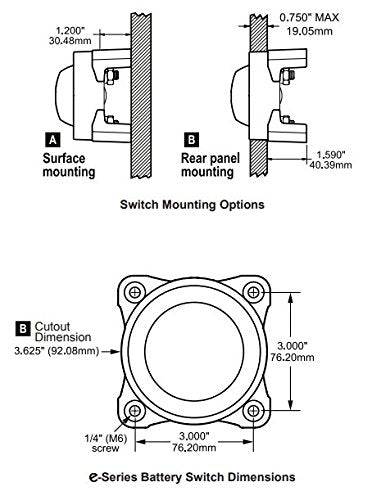

Blue Sea Systems e-Series battery switches can be installed in different locations.

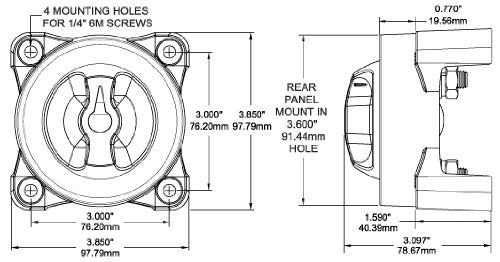

Their compact footprint and two mounting options make installation straightforward.

They are ignition protected and can be located in gasoline powered boats' engine rooms.

This version does not include an alternator field disconnect to protect the alternator diodes from damage if the switch is accidentally turned to the OFF position while the engine is running.

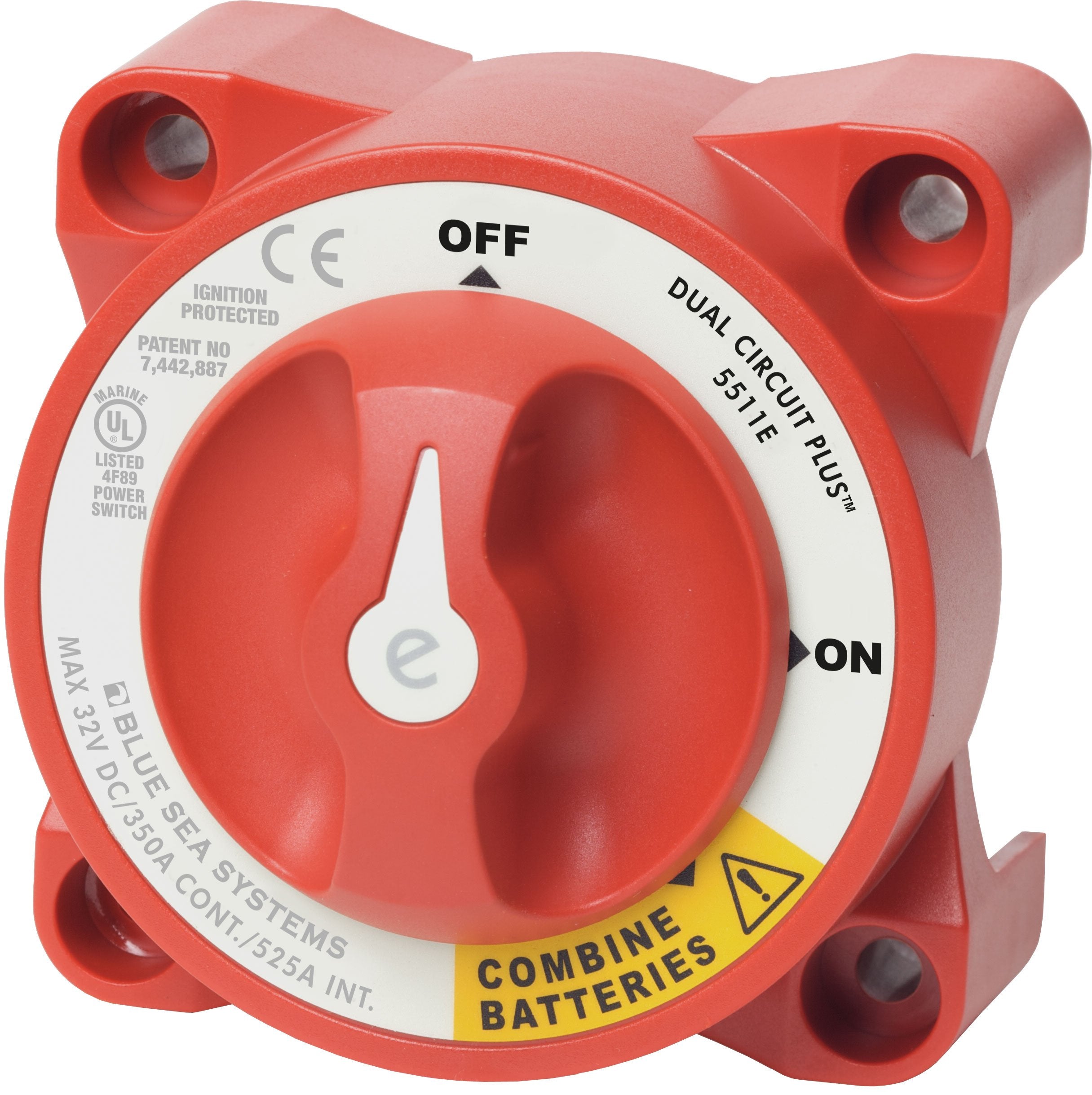

The tactile texture of the switch face and knob allows operation by feel in low or no light situations.

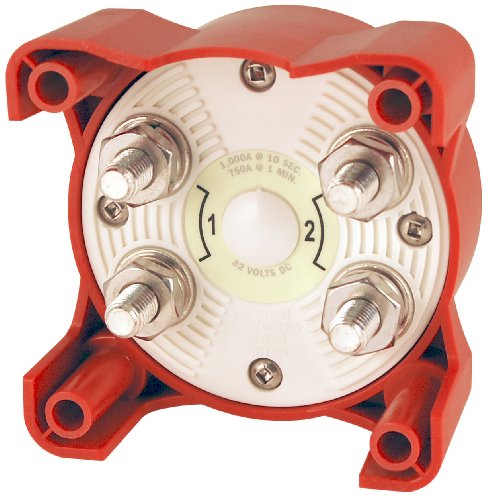

The one piece tin-plated copper terminal studs are long enough to accept multiple cables and will accept the torque required to create a secure connection that minimizes resistance.
