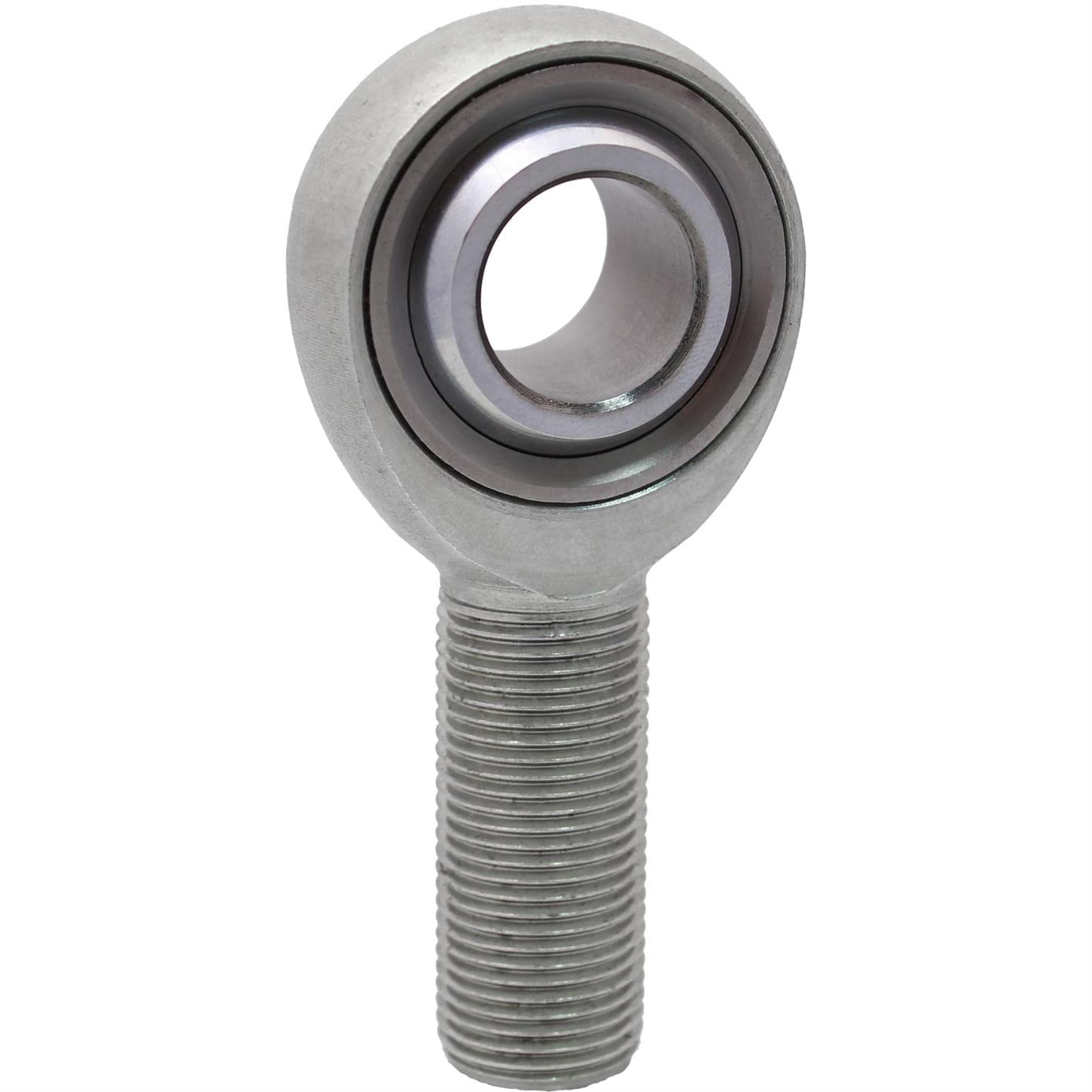

QA1 Precision Products HMR8 HM Series Alloy Steel Male Rod End In QA1s 3-Piece rod end, the sleeve is swaged around the ball after the ball is pressed into it.
The insert is called the unit after swaging.
The O.D.
of the insert is then faced off and turned down to square up the sides for staking into a rod end body.
This unit offers better conformity for ball to race tolerances.
This style rod end is suitable for applications that require tighter tolerances.
KM Series Carbon Steel Male The traditional three-piece carbon steel rod end is defined as QA1s KM Series rod ends.
Available in right and left hand threads and inch dimensions, these truly are precision rod ends.
Grease fittings and stud configurations are also available.
BALL52100 Bearing Steel Heat Treated Hard Chrome Plated Precision Ground RACE Alloy Steel Corrosion and Wear Resistant BODY Carbon Steel (Alloy Steel Mfr.s Option) Protective Coated for Corrosion Resistance KM-T Series Carbon Steel Male Add a PTFE liner to the traditional three-piece carbon steel male rod end and you have QA1s KM-T Carbon Steel Series rod ends.
Available in right and left hand threads and inch dimensions, these truly are precision rod ends.
Stud configurations are also available.
BALL52100 Bearing Steel Heat Treated Hard Chrome Plated Precision Ground RACE Alloy Steel Corrosion and Wear Resistant PTFE Lined BODY Carbon Steel (Alloy Steel Mfr.s Option) Protective Coated for Corrosion Resistance HM Series Alloy Steel Male QA1s HM Series rod ends are a traditional three-piece chromoly steel male rod end.
These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions.
Grease fittings and stud configurations are also available.
BALL52100 Bearing Steel Heat Treated Hard Chrome Plated Precision Ground RACE Chromoly Heat Treated Steel Corrosion and Wear Resistant BODY Chromoly Steel Heat Treated Protective Coated for Corrosion Resistance HM-T Series Alloy Steel Male With a PTFE liner added to the traditional three-p
