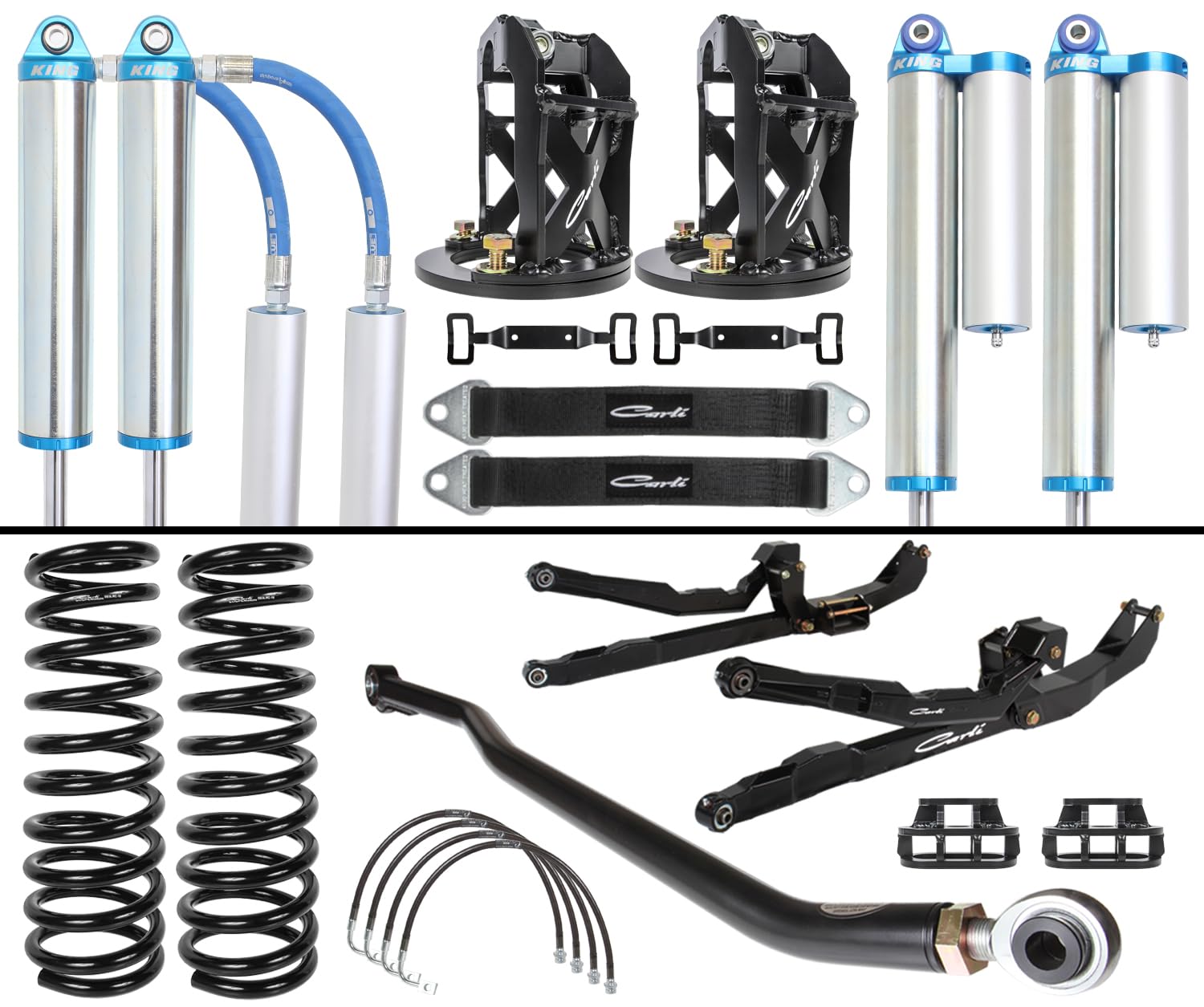

This 3 inch Performance Long Arm lift system from Carli Suspension CS-DPER25-10-D is designed for the Dodge Ram 2500 4wd diesel models.
It is an ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires.
Using custom tuned King 2.5" Remote Reservoir Shocks, this kit is ideal for Ram owners wanting the best ride quality and off-roading performance.
Excellent during on-road, highway, towing/hauling along with slow to high speed off road use.
The top feature of this lift system is the long arm system that replaces the factory control arms.
This upgrade gives your vehicle increased suspension articulation and much better handling due to the corrected geometry.
The included arms are extremely heavy duty and 50% longer than the factory arms (factory control arm mounts will need to be cut off).
To take full advantage of the long arm system, Carli also includes slide over-design shock towers that accommodate the longer 12 inch travel shocks.
Also in this lift system are 3 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort.
Paired with the coil springs are King 2.5" Remote Reservoir Shocks.
These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished.
There is no finish or coating to wear off.
The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models.
Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.
To keep the front axle centered properly, an adjustable front track bar is included.
In typical Carli fashion, this bar has features that are not found in other track bars.
This includes 3/8 inch DOM construction that allows for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.
In the rear, Carli gives you a variety of choices to lift or not lift the rear of the vehicle.
The base kit does not lift the rear; however, for a level ride and much improved travel and performance, you will want to choose the Carli progressive rate 1" lift leaf springs.
The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a 3/4 ton spec or choose the HD version for those with 1500 lbs in the bed at all times.
You can make your selection in the options section below.
