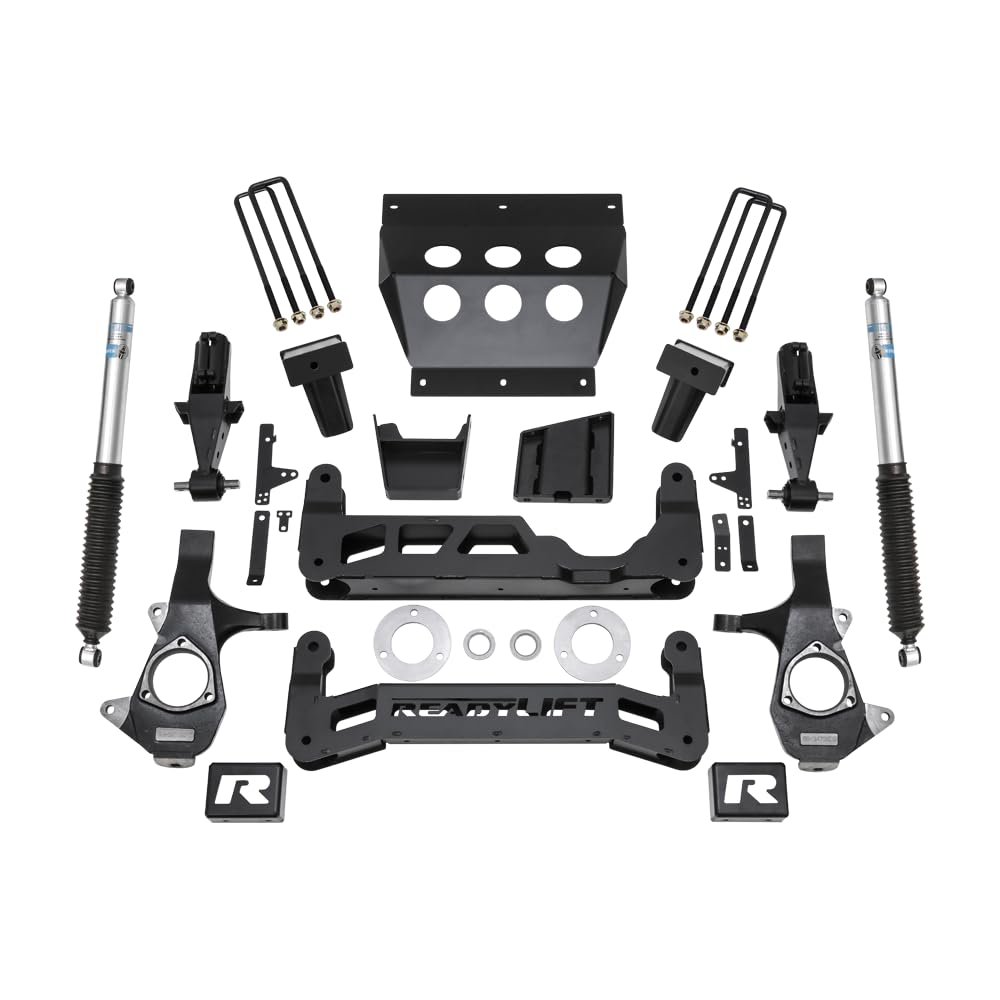

The brand new 7 inch big lift kit from ReadyLIFT for Chevy Silverado and GMC Sierra 1500 trucks, model years 2014-2018.
This lift system works with trucks equipped with or without MagneRide.
Designed for use on GM 1500 trucks with factory Forged Steel front suspension, the 44-3471 7 inch lift kit retains the factory turning radius while minimizing track width increase to less than 0.5 inches per side.
It allows for up to a 35 inch tall tire on a 9 inch wide wheel with -12 offset.
The clam-shell style lower strut extension retains the factory struts (both standard and front MagneRide) and does not require strut rotation.
These clam-shell brackets utilize TCT lower bushings to provide a precise pivot point that maintains the factory ride.
Boxed steel front and rear cross members and full width front skid plate are constructed of thick 3/16 inch plate steel while allowing for use of the OE front plastic gravel guard to protect the engine bay and retain the proper air flow as intended by GM designers.
New 1/4 inch boxed plate steel differential drop brackets feature a double gusset and boxed center rib to withstand front differential torsional twisting.
Not for use on AWD applications - 2WD or 4WD only.
Rear lift is achieved with fabricated 3/16 inch thick plate steel rear lift blocks that include built-in bump stop landings and an offset pin design to properly center the axle and specific angles to the blocks to retain the proper pinion angle.
This lift system includes premium extended length Bilstein rear shocks.
Notes: Fits up to a 35 inch tall off road tire - requires a 9 inch wide wheel with -12 offset for no rub (tire tread varies - some aggressive tires may require minor trimming).
Not for use on AWD applications.
Includes ReadyLIFT ReadyGuard Powertrain Warranty.
Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide.
Only Front MagneRide compatible.
