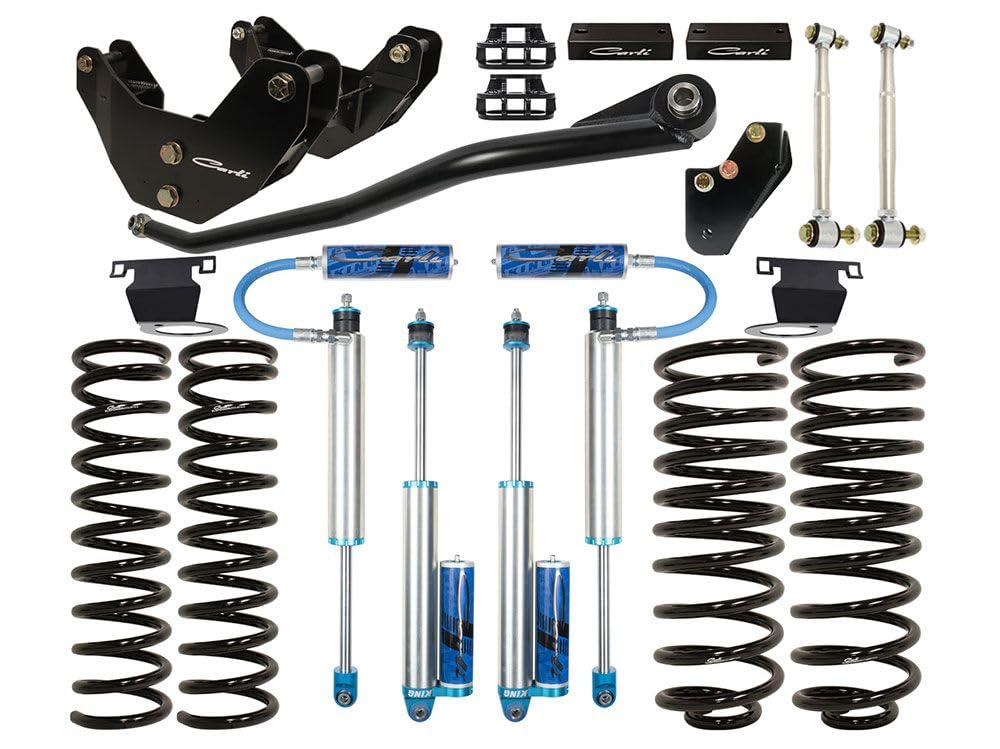

The Carli Suspension CS-DPT25-19-H Pintop 3 inch lift system for the Dodge Ram 2500 4wd Hemi models is an ultra premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires.
This kit is perfect for Ram owners wanting the best ride quality and off-roading performance, using custom tuned King 2.5" Remote Reservoir Shocks.
Excellent during on-road, highway, towing/hauling along with slow to high speed off road use.
Featured in this lift kit system are 3 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort.
Paired with the coil springs are King 2.5" Remote Reservoir Shocks.
These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished, meaning there is no finish or coating to wear off.
The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models.
Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.
An adjustable front track bar is included to keep the front axle centered properly.
In typical Carli fashion, this bar has features that are not found in other track bars, including 3/8 inch DOM construction that allows for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.
Radius arm drop brackets lower the factory radius arms, which rotates the axle back to factory angles to maintain proper caster and geometry.
Made from 1/4 inch cold rolled steel, these heavy duty brackets will provide a solid link between the arms and chassis.
In the rear, Carli gives you the choice of rear coil springs that will best fit your needs.
R1 coil springs will provide .5 to 1 inch of rear lift and are designed to soften the ride by sacrificing some load capacity (maxed at 1,500 lbs).
R2 coil springs provide 2 to 3 inches of rear lift and maintain the factory payload, but have a firmer ride.
