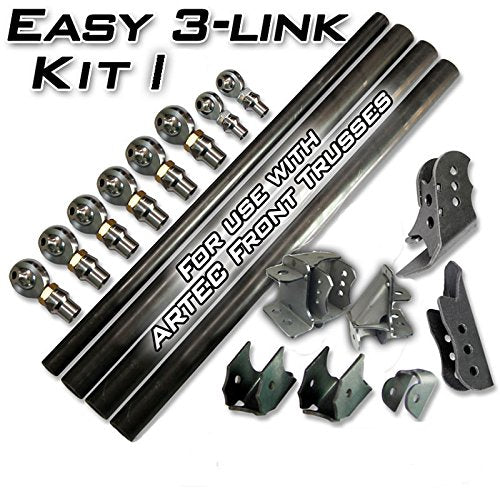

3 Link Easy - Kit I - Dual Bracket For Artec Truss.
The Kit G Easy 3-Link is the simplest way to get your links done.
Based off our Dual 3 Link Bracket with panhard bar, this Kit is intended for use with our 60 trusses.
If a truss isn't being used, please select Kit H.
The strongest and longest lasting on the market are the heat and cryogenically treated chromo rod ends.
The tube adapters included feature machined Wrench Flats for easy adjustments and tightening, conforming to the outer diameter of the tubing it welds to.
Maximum articulation in the rod end is allowed by the included stainless steel high misalignment spacers.
This Kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your particular vehicle as an option.
Drilling of lower link holes to 3/4 inch will be required unless 9/16 inch bolts for your lower links are specified.
Features: Sold as Kit Includes: 1 RH, 1 LH - 7/8 inch -14TPI X 3/4 inch bore rod ends for panhard 1 RH, 1 LH - 7/8 inch -14TPI Tube Adapters for panhard 1 RH, 1 LH - 7/8 inch -14TPI Jam nuts for panhard 4 - 3/4 inch-9/16 inch High Misalignment Spacers 3 RH, 3 LH - 1.25 inch -12TPI X 1.0 inch bore rod ends 3 RH, 3 LH - 1.25 inch -12TPI Tube Adapters 3 RH, 3 LH - 1.25 inch -12TPI Jam nuts 12 - 1.0 inch-3/4 inch High Misalignment Spacers 1 - Pair Lower Link Axle Brackets (10 dig) 1 - Single Truss Upper Link Mount(2.63 inch) 1 - BRACKET Dual 3 Link 1 - Adjustable Panhard Frame Mounts- Choose Front Outside Frame 1 - Adjustable Panhard Truss Mount - Choose Chevy/Ford 78-79 1 - 4 FT 1.5 inch OD .250 inch Thick DOM Tubing (optional) 3 - 4 FT 2.0 inch OD .250 inch Thick DOM Tubing (optional).
