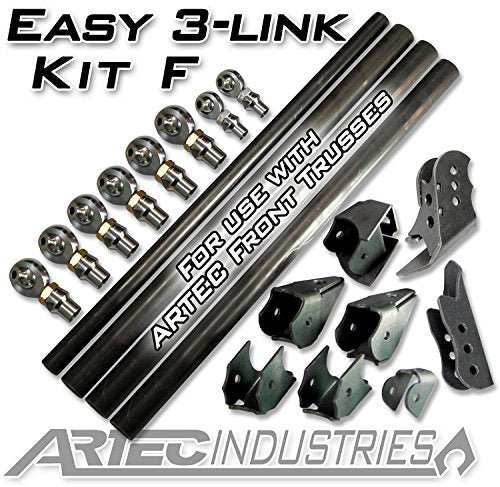

3 Link Kit F For Artec Trusses is easy to install.
Based off our most popular parts, this kit is designed for a 3-link with panhard bar.
Intended for use with our 60 trusses, if a truss is not being used, please select Kit G.
The strongest and longest lasting on the market are the heat and cryogenically treated chromo rod ends.
The tube adapters included feature machined wrench flats for adjustments and tightening, conforming to the outer diameter of the tubing it welds to.
Maximum articulation is allowed by the included stainless steel high misalignment spacers in the rod end.
This kit offers optional four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your vehicle.
Drilling of lower link holes to 3/4 inch will be required unless 9/16 inch bolts for lower links are specified.
Features: Tubing: No Tubing Panhard Frame Orientation: Outside Frame Which Artec Truss are you using: Dodge Upper Link Side Inner Frame mount: Front Driver/Rear passenger Sold as Kit Includes: 1 RH, 1 LH - 7/8 inch -14tpi x 3/4 inch bore rod ends for panhard 1 RH, 1 LH - 7/8 inch -14tpi tube adapters for panhard 1 RH, 1 LH - 7/8 inch -14tpi jam nuts for panhard 4 - 3/4 inch-9/16 inch high misalignment spacers 3 RH, 3 LH - 1.25 inch -12tpi x 1.0 inch bore rod ends 3 RH, 3 LH - 1.25 inch -12tpi tube adapters 3 RH, 3 LH - 1.25 inch -12tpi jam nuts 12 - 1.0 inch-3/4 inch high misalignment spacers 2 - lower link frame brackets 1 - pair lower link axle brackets (10 dig) 1 - single truss upper link mount (2.63 inch) 1 - inner frame bracket (0 dig) - choose driver or passenger 1 - adjustable panhard frame mount - choose orientation 1 - adjustable panhard truss mount - choose truss 1 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional) 3 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional).
