The CMD-10K series remote controller offers: Key Features: All harnesses and wire ends are fully assembled for easy installation.
Heavy duty 30 amp relays are provided for greater reliability.
Code hopping technology adds security.
Two six button transmitters allow easier operation.
Park light flash provides visual feedback during operation.
Ignition safety disables door and trunk release when the engine is running.
Sealed switch is included for emergency driver's door entry.
10 function operation for: Controls driver side window up.
Controls driver side window down.
Controls passenger side window up.
Controls passenger side window down.
Remotely opens driver side door.
Remotely opens passenger side door.
Releases or raises trunk/rear hatch.
Lowers trunk or rear hatch.
Raises auxiliary motor or releases auxiliary latch.
Lowers auxiliary motor or programmable auxiliary channel can momentarily turn on/off or toggle on/off any electrical device.

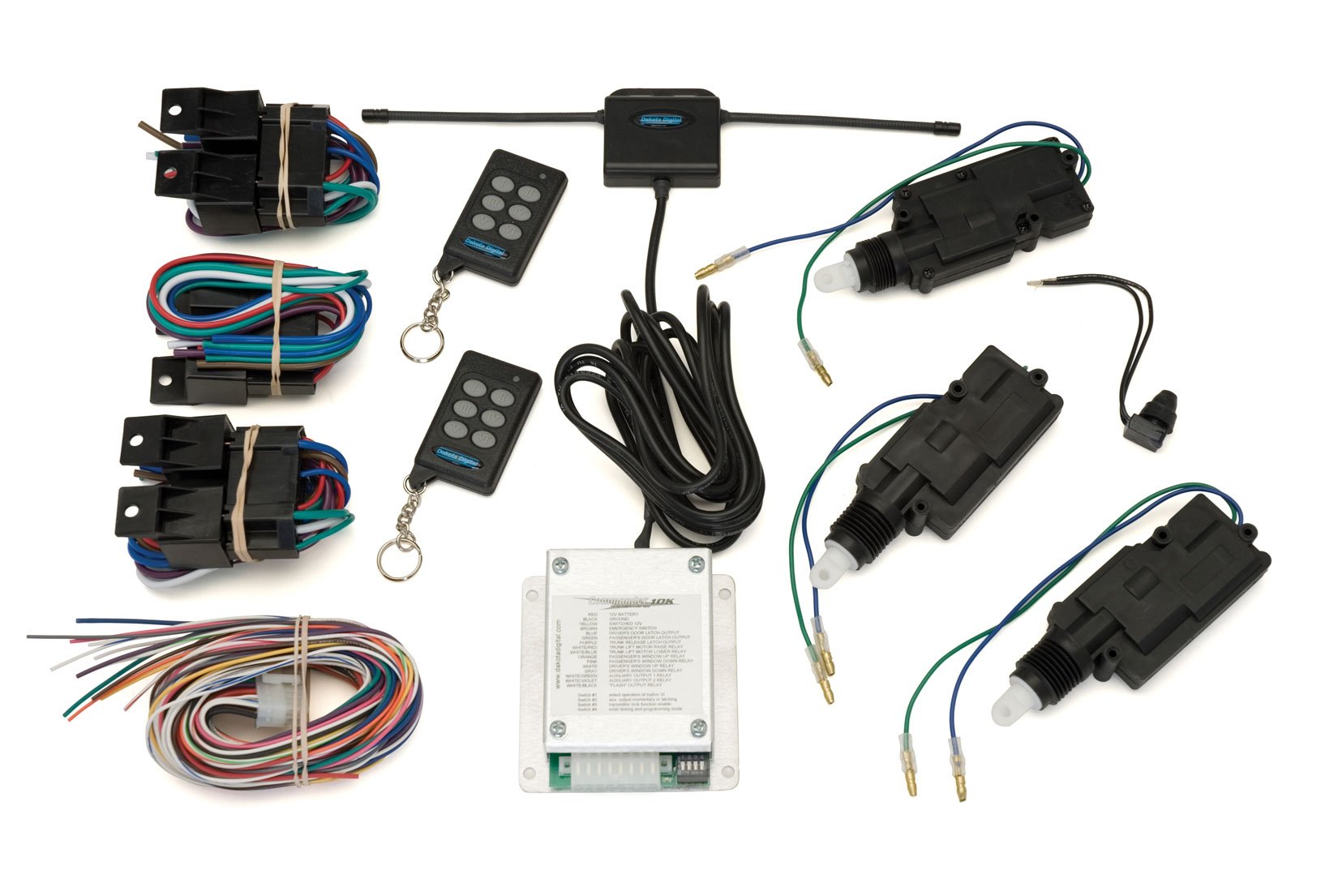

CMD-10K-2 includes: CMD-10K 10 function remote system.
Three PDR-1 10 lb push/pull actuators.
Two XMT-6 6 button remote transmitters.
*Limited Lifetime Warranty.
**Some functions may require additional RLY-1 or RLY-2 relay packs depending on desired configuration.
