Product Description Fiberglass side rails are non-conductive.
Yellow molded end caps and rail closures are non-marring.
On the top of the base section, external guides and on the bottom of the fly section, internal guides securely interlock rails.
Equipped with a heavy-duty pulley and rope, except for D6016-2.
The rope clamp ties the rope to the rung.
Smoothly operating extruded gravity spring locks are present.
Direct connections from rung to rail are included.
A combination aluminum rail shield bracket and shoe with Shu-lok, slip-resistant pad, and spur plate are featured.
Due to the Alflo rung joints, it is Twist-Proof.
Rung braces are molded.
Slip-resistant traction tred d-rungs are included.
Dimensions: rails are 3-3/8" wide, flange is 1-3/16" wide, rungs are 1-1/2" flat type, fly width is 15-3/4" outside rails, and base width is 18-1/8" outside shoes.
When not extended, the length of extension ladders is half the total length of the sections.

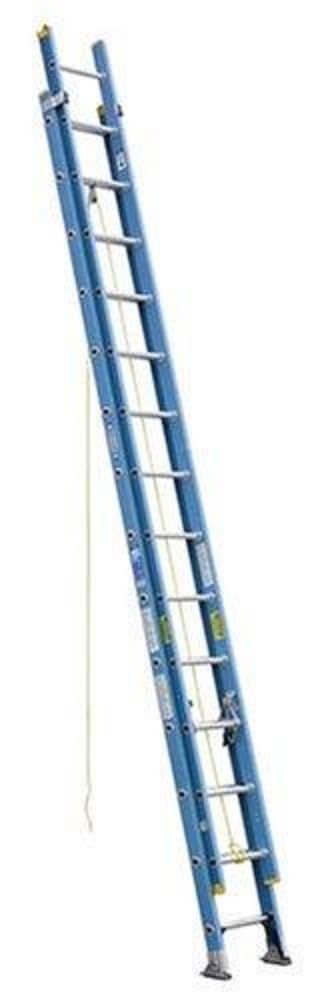

From the Manufacturer This fiberglass flat D-rung extension ladder has a 250-pound duty rating (Type I).
At the top and bottom of the ladder, guides securely interlock rails for safer use.
It also uses the patented Alflo rung joint for Twist-Proof performance.
Other features include interlocking side rails, slip-resistant Traction-Tred D-rungs, and direct connections from rung to rail.
This model is equipped with a rope clamp and a smooth operating pulley.
