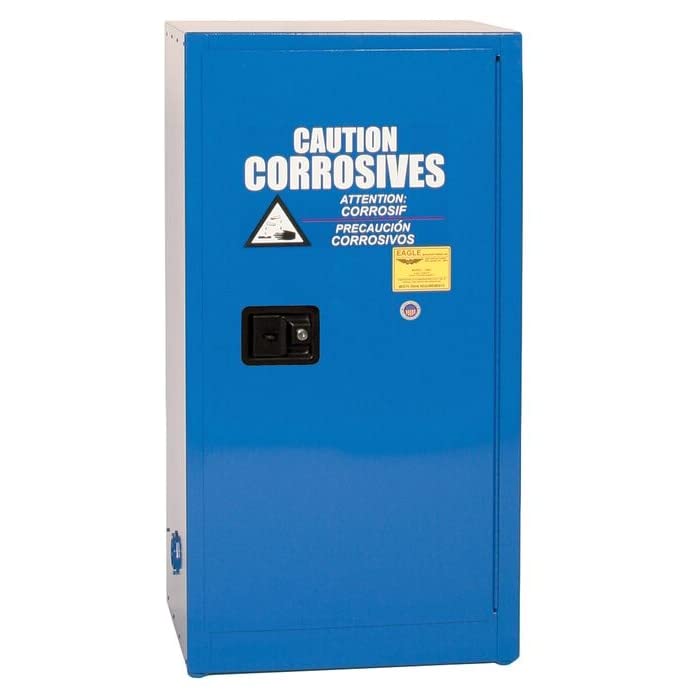

Eagle 16 Gallon, Space Saver Acid Corrosive Safety Cabinet, manual close, is constructed of 18-gauge (1 mm) steel.
The doors, sides, top, bottom, and walls are double-walled with a 1-1/2 in (3.8 cm) air space between them.
Each cabinet includes two vents, each with 2 in (5.1 cm) threaded fittings, a fire baffle, and a cap.
Cabinets have a powder coat finish that is corrosion-resistant and include a trilingual warning label, grounding attachment, 3-point latch system, and a 2-in (5.1 cm) raised, leakproof door sill.
Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a safe allowable load of 350 lbs (159 kg).
Poly shelf and sump trays are included to help contain small spills and provide extra corrosion protection.
Not recommended for use with Sulfuric, Nitric, or Hydrochloric acids.
Cabinets are FM-approved and meet NFPA Code 30 and OSHA requirements.
Product Summary: Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back, and doors.
Constructed of 18-gauge steel.
Lead-free, high-gloss, baked-on powder finish.
Continuous piano hinges.
Ground connection.
Four adjustable galvanized leveling legs.
Trilingual warning labels.
2 in (5.1 cm) raised leakproof sill.
Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs.
(158.8 kg) Uniform Distributed Load (UDL).
Internal and external welded construction.
Two 2 in (5.1 cm) internal vents with fire baffle and cap.
Flush mounted door handle with key lock.
Three-point stainless steel bullet latching system.
3 in (7.6 cm) centers for shelf brackets.
Self-latching doors.
Door closings: Manual Close (180° opening).
Specifications More Information Model No CRA1906X Color Blue Material Specifications 18-Gauge Steel FM Approval Yes OSHA Compliance Yes Complies with NFPA Code 30 Yes Door Style Manual Close UPC 048441690602 Dimensions, Exterior 23.25W x 18Dx 44H Dimensions, Interior 20" W x 14.6" D x 39.5 H (50.8 x 37 x 100.3 cm) Number of Doors 1 Number of Shelves 1 Uniform Fire Code No Lock Yes Gallon Capacity 16 Liter Capacity 60.57 Replacement Shelf Model No.
29936 Pallet Quantity 1 Shelf Depth 14" (35.6 cm) Net Weight, lbs 121 Net Weight, kgs 54.88 Adjustable Shelf Yes
