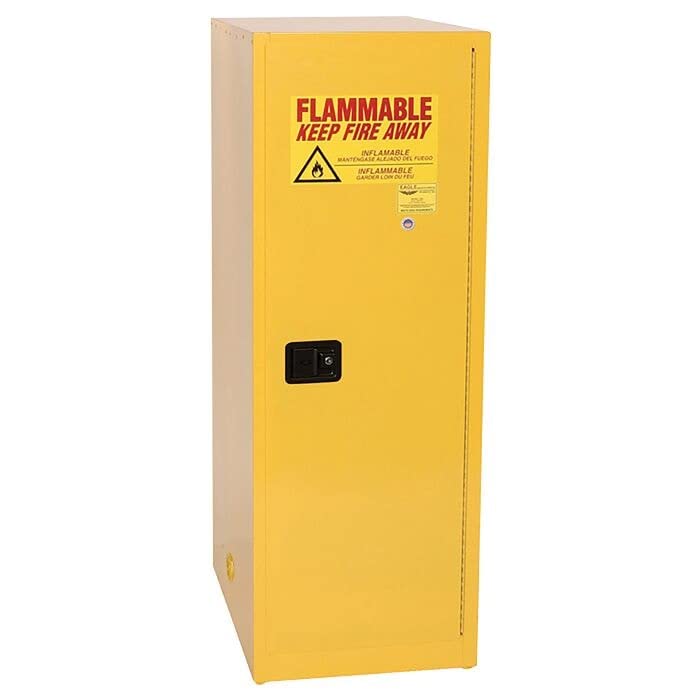

Description: The 24 Gallon, self-closing, Deep Space Saver Flammable Liquid Safety Cabinet is made of 18-gauge (1 mm) steel.
Double-walled construction features a 1-1/2 in (3.8 cm) air space between walls for the sides, top, bottom, and doors.
Two vents are included, each with 2 in (5.1 cm) threaded fittings, a fire baffle, and cap.
The cabinets have a high gloss powder coat finish with red trilingual warning, plus a grounding attachment, 3-point latch system, and a 2-in (5.1 cm) raised, leakproof door sill.
Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a safe allowable load of 350 lbs (159 kg).
The cabinets are FM-Approved and comply with NFPA Code 30 and OSHA requirements.
Product Summary: Double wall construction is reinforced with a 1-1/2 in (3.8 cm) air space on sides, top, bottom, back, and doors.
Made of 18-gauge steel with a lead-free, high-gloss, baked-on powder finish.
Continuous piano hinges and a ground connection are included.
Four adjustable galvanized leveling legs and trilingual warning labels are present.
The cabinet features a 2 in (5.1 cm) raised leakproof sill.
Patented adjustable galvanized steel shelves direct spills to the back and bottom of the leakproof sump and hold 350 lbs.
(158.8 kg) Uniform Distributed Load (UDL).
Internal and external welded construction is provided.
Two 2 in (5.1 cm) internal vents with fire baffle and cap are included.
A flush mounted door handle with key lock is present.
The three-point stainless steel bullet latching system is included.
Shelf brackets are set at 3 in (7.6 cm) centers.
The doors are self-latching with self-closing (135° opening) and a concealed self-close mechanism for obstruction-free access to top shelf space.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Specifications More Information Model No 4610X Color Yellow Material Specifications 18-Gauge Steel FM Approval Yes OSHA Compliance Yes Complies with NFPA Code 30 Yes Door Style Self-close UPC 048441691760 Dimensions, Exterior 23.25W x 34Dx 65H Dimensions, Interior 20" W x 30.34" D x 60.5" H (50.8 x 77.1 x 153.7 cm) Number of Doors 1 Number of Shelves 3 Uniform Fire Code Yes Lock Yes Gallon Capacity 48 Liter Capacity 181.7 Replacement Shelf Model No.
29941 Pallet Quantity 1 Shelf Depth 29" (73.7 cm) Net Weight, lbs 262 Net Weight, kgs 118.84 Adjustable Shelf Yes
