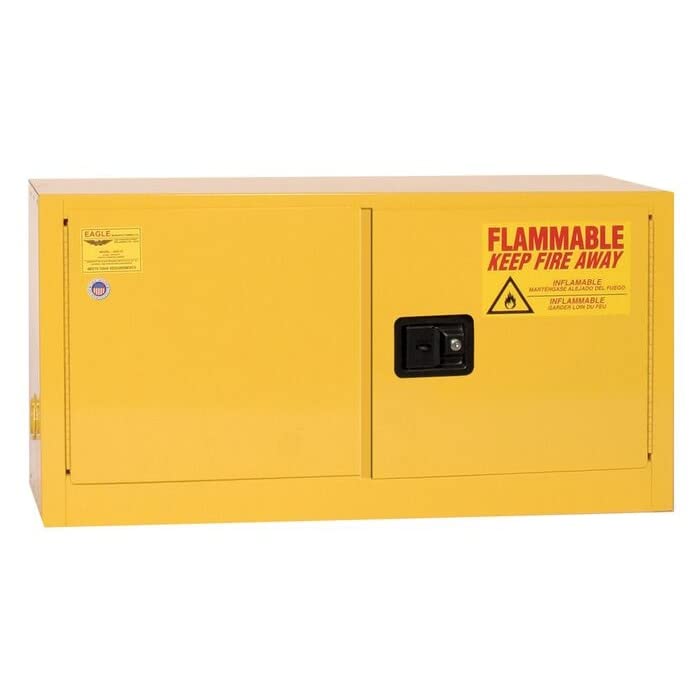

Description: 15 Gallon, self-closing, Add On Flammable Liquid Safety Cabinet is made of 18-gauge (1 mm) steel.
The doors, sides, top, and bottom are double-walled with a 1-1/2 in (3.8 cm) air space between walls.
Two vents are included, each with 2 in (5.1 cm) threaded fittings, a fire baffle, and a cap.
Cabinets feature a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill.
Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a safe allowable load of 350 lbs (159 kg).
Cabinets are FM-Approved and comply with NFPA Code 30 and OSHA requirements.
Product Summary: Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back, and doors.
Constructed of 18-gauge steel.
Lead-free, high-gloss, baked-on powder finish.
Continuous piano hinges.
Ground connection.
Four adjustable galvanized leveling legs.
Trilingual warning labels.
2 in (5.1 cm) raised leakproof sill.
Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs.
(158.8 kg) Uniform Distributed Load (UDL).
Internal and external welded construction.
Two 2 in (5.1 cm) internal vents with fire baffle and cap.
Flush mounted door handle with key lock.
Three-point stainless steel bullet latching system.
3 in (7.6 cm) centers for shelf brackets.
Self-latching doors.
Door closings: Self-Closing (135° opening).
Concealed self-close mechanism provides obstruction-free access to top shelf space.
Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Specifications More Information Model No ADD14X Color Yellow Material Specifications 18-Gauge Steel FM Approval Yes OSHA Compliance Yes Complies with NFPA Code 30 Yes Door Style Self-close UPC 048441690350 Dimensions, Exterior 43W x 18Dx 24H Dimensions, Interior 39.5" W x 14.56" D x 19.5" H (100.3 x 37 x 49.5 cm) Number of Doors 2 Number of Shelves 1 Uniform Fire Code Yes Lock Yes Gallon Capacity 15 Liter Capacity 56.78 Replacement Shelf Model No.
29937 Pallet Quantity 1 Shelf Depth 14" (35.6 cm) Net Weight, lbs 126 Net Weight, kgs 57.15 Adjustable Shelf Yes
