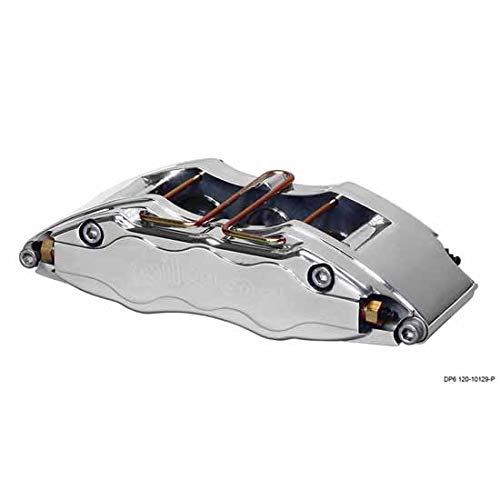

Product Summary Product Documents 120-10129-P - Product Description Dynapro Six Lug Mount The DP6 represents a significant advancement in the DynaPro caliper series.
The performance advantages of a larger pad and a six piston differential bore configuration are offered by DP6 calipers, with complete bolt-on interchangeability to the four piston 5.25" lug mount DynaPro models and the long-standing Dynalite caliper series.
The strength of the DP6 is a combination of design and process, similar to the previous DynaPro models.
Stress-flow forged premium grade alloy billets result in a highly efficient, high strength body.
The internal grain structure of the metal within the contour of the caliper body is realigned by stress flow forging.
This process is proven to provide superior strength over any other process derived from castings or straight billet block machining.
FEA assisted solid modeling design technology was utilized to find the optimum balance between lightweight and superior strength against deflection and body separation under high load.
The DP6 incorporates race proven technology and the latest Wilwood performance enhancements in addition to the sturdy, yet stylish body.
Six heavy wall stainless pistons configured in a leading to trailing edge differential bore pattern generate pad clamping force.
The heavy wall pistons have been re-engineered to fully resist backside deflection at high pressures while maintaining balanced pad loading for even wear over the length of the pad.
Corrosion is resisted by stainless steel while inhibiting direct heat transfer from the pads to caliper body, seals, and fluid.
Two choices for overall piston volume provide options to match caliper size with master cylinder output and bias requirements.

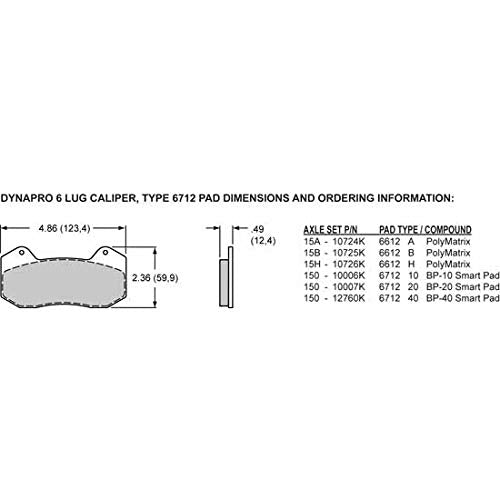

Vehicle Applications Product Specifications Axle Set P/N Pad Type Compound Non-Bedded Pads - by Compounds 150-10006K 6712 BP-10 150-20-6712K 6712 BP-20 150-28-6712K 6712 BP-28 150-35-6712K 6712 BP-35 150-12760K 6712 BP-40 150-Q-6712K 6712 BP-Q Additional Notes The upgraded type 6712 pad is used by the DP6, providing the larger overall volume size from the previous Dynalite and DynaPro four-piston models.
Exclusive Wilwood Quick-E clips retain the pads for simplified pad service and maintenance without caliper removal.
Engagement harmonics are dampened by stainless steel SRS bridge plates, eliminating pad rattle and protecting the caliper bridges from gouging by the pad edges.
Front or rear mounting and simplified gas evacuation regardless of mounting position are accommodated by four corner bleeds and internal fluid passages.
A high gloss black finish is featured on standard DP6 calipers.
Custom applications can be ordered in bright polished, high gloss red, and other custom Wilwood colors to add personalized style.
