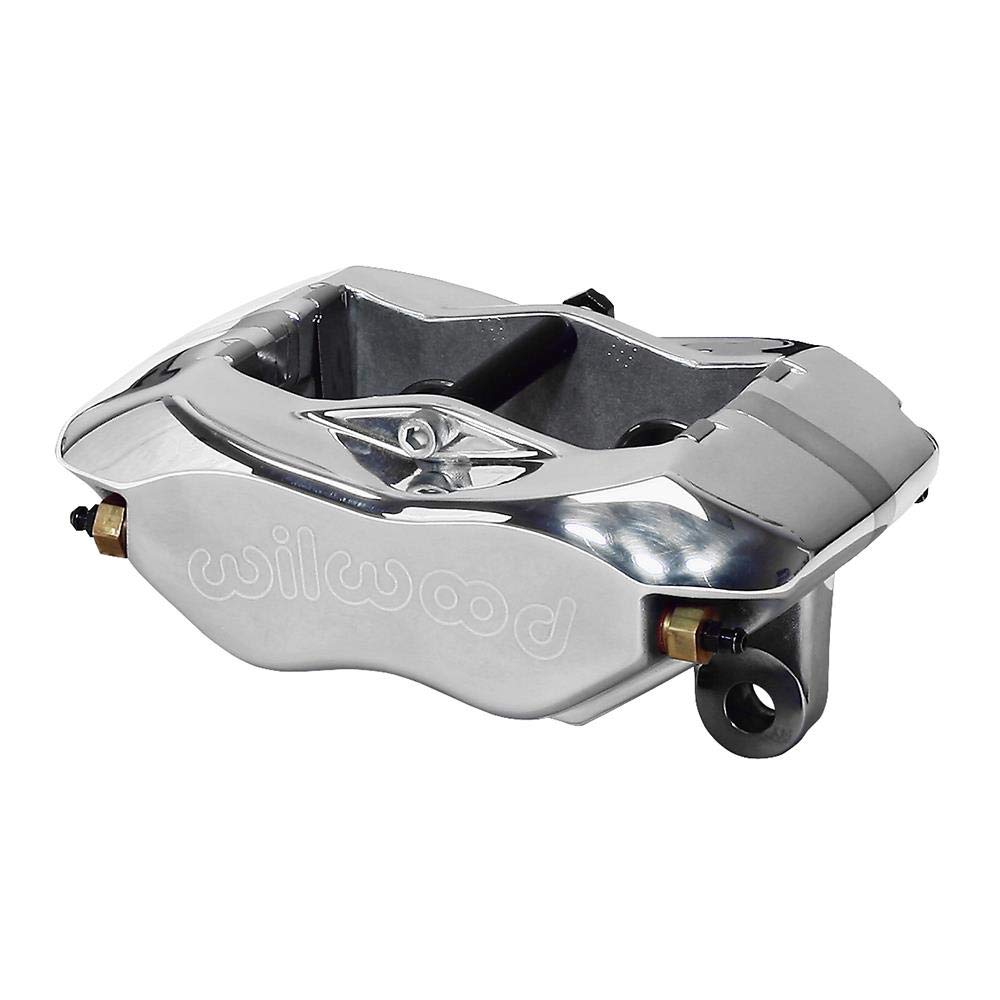

Forged Narrow Dynalite - Product Summary Product Documents 120-11577-P - Product Description Wilwood's new Forged Narrow Mount Dynalite (FNDL) calipers are widely used in many competition applications and ideal for late models, modifieds, sprints, off road, and road racing.
The latest innovation from Wilwood, computer generated design and stress analysis technology, provides substantial improvements in strength and performance over all comparable caliper models.
The strongest calipers in the class are Forged Narrow Mount Dynalites.
A direct replacement for all previous Wilwood NDL’s and similar competitive brands, FNDL calipers feature 3.50" centered mounting tabs.

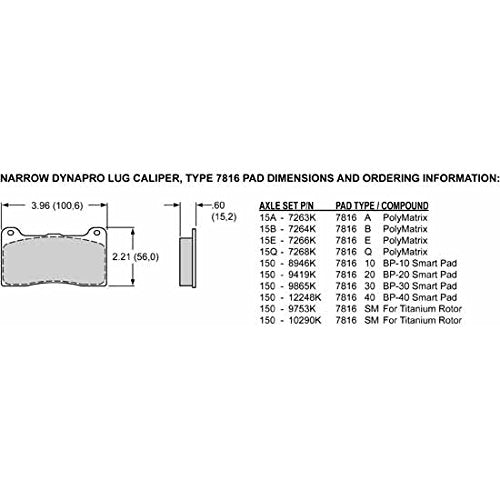

Superior bridge strength and positive retention of the top loaded 7816 or 7216 type brake pads are provided by a total of five bolts.
The full range of PolyMatrix pad compounds is available to match the brake response and heat range requirements of any competition application.
The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body.
This process eliminates breaks and interruptions to the internal grain structure that occur when machining a straight block billet.
The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges.
A radius in this transition area substantially increases resistance to deflection and caliper separation under load.
Structural deflection and volume displacement tests have proven the Forged Narrow Mount Dynalite to outperform all existing styles of this popular caliper size.
The superior strength of this innovative design is combined with proven performance features from Wilwood's earlier designs.
Each caliper is equipped with Wilwood's SRS stainless steel bridge plates.
The SRS plates eliminate bridge wear caused by pad gouging and extend the service life of the caliper body.
The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking.
Other standard Wilwood features include high temperature seals and stainless steel pistons to eliminate corrosion and retard heat transfer from the pads.
Internal fluid passages eliminate the need for external tubes.
Four corner bleed screws assure simple and effective air evacuation from the system and allow one caliper to be mounted in any front, rear, right, or left position.
To round out the package, Legacy FNDL calipers are finished in Wilwood's exclusive Black Anodize, and newer production units feature Type III Gray Anodize coating.
Polished units are also available in select piston sizes and rotor widths.
