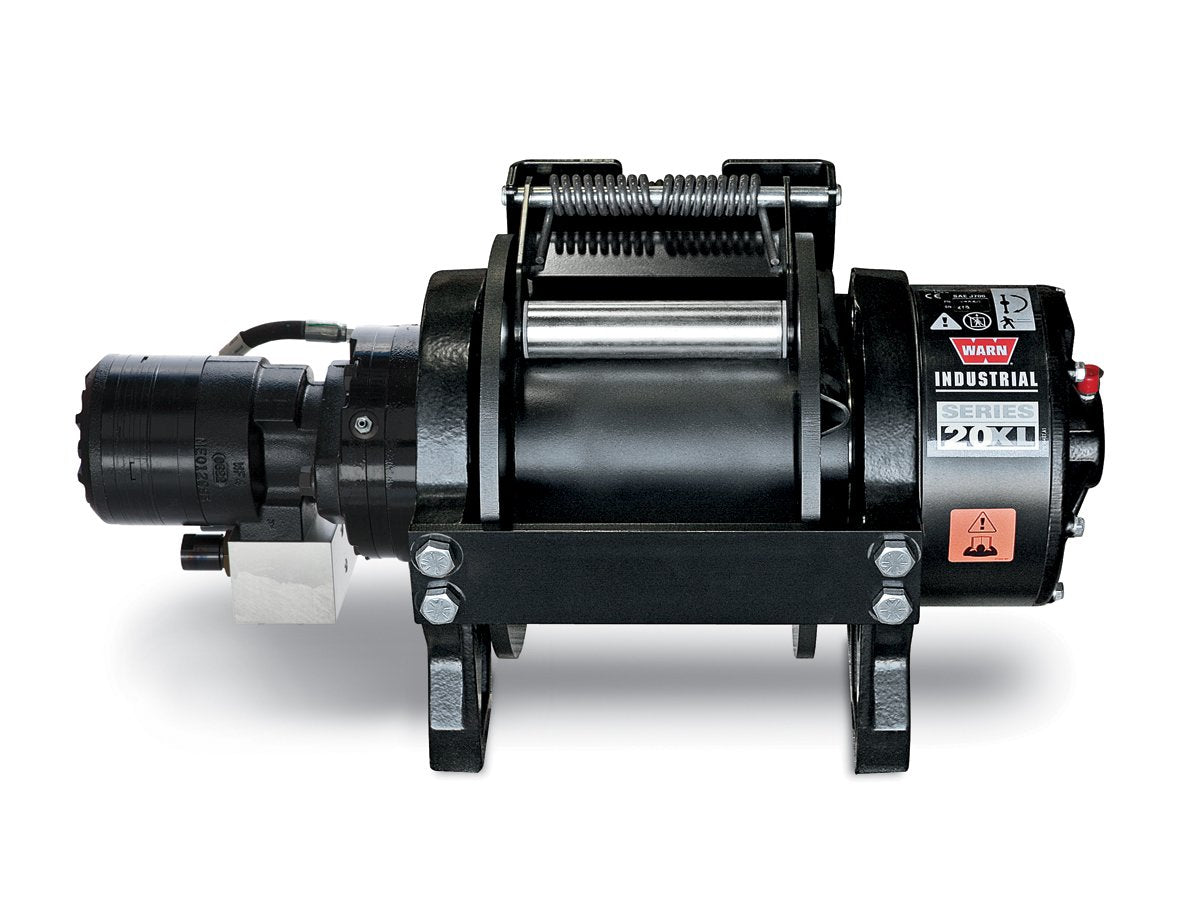

The WARN SERIES 20XL-LP Industrial Hydraulic Winch is suitable for wreckers, trailers, or severe-duty applications.
With a pulling capacity of 20,000 lb., this winch is designed for use on rollback trailers, trailers, and heavy-duty applications.
The LP designation stands for 'Low Pressure' and indicates that this winch utilizes a larger displacement motor to pull the full rated load at only 2200 psi.
This makes the Series 20XL-LP winch suitable for hydraulic systems operating below 3000 psi.
It includes a high-performance motor with a 11.9 cubic-inch capacity and spring-applied disc brakes designed to hold the full-rated load.
The hardened aircraft-grade nickel chromoly two-stage planetary geartrain ensures speed and reliability.
This model features an air clutch and standard drum.
It meets SAE J706 and CE specifications.
Rope and other accessories are sold separately.
