The RV-212 system from Raymarine is a 4-channel, Wide Spectrum CHIRP transducer system featuring DownVision™, SideVision™, high frequency CHIRP fish targeting, and RealVision 3D™ sonar.
Inside, the transducer system includes a built-in attitude and heading reference system (AHRS) that stabilizes sonar imagery, compensating automatically for vessel motion.
You will enjoy crystal-clear imagery while maneuvering, in waves, and swells.
Additionally, the RV-212 system has a built-in fast response water temperature sensor for accurate readings.

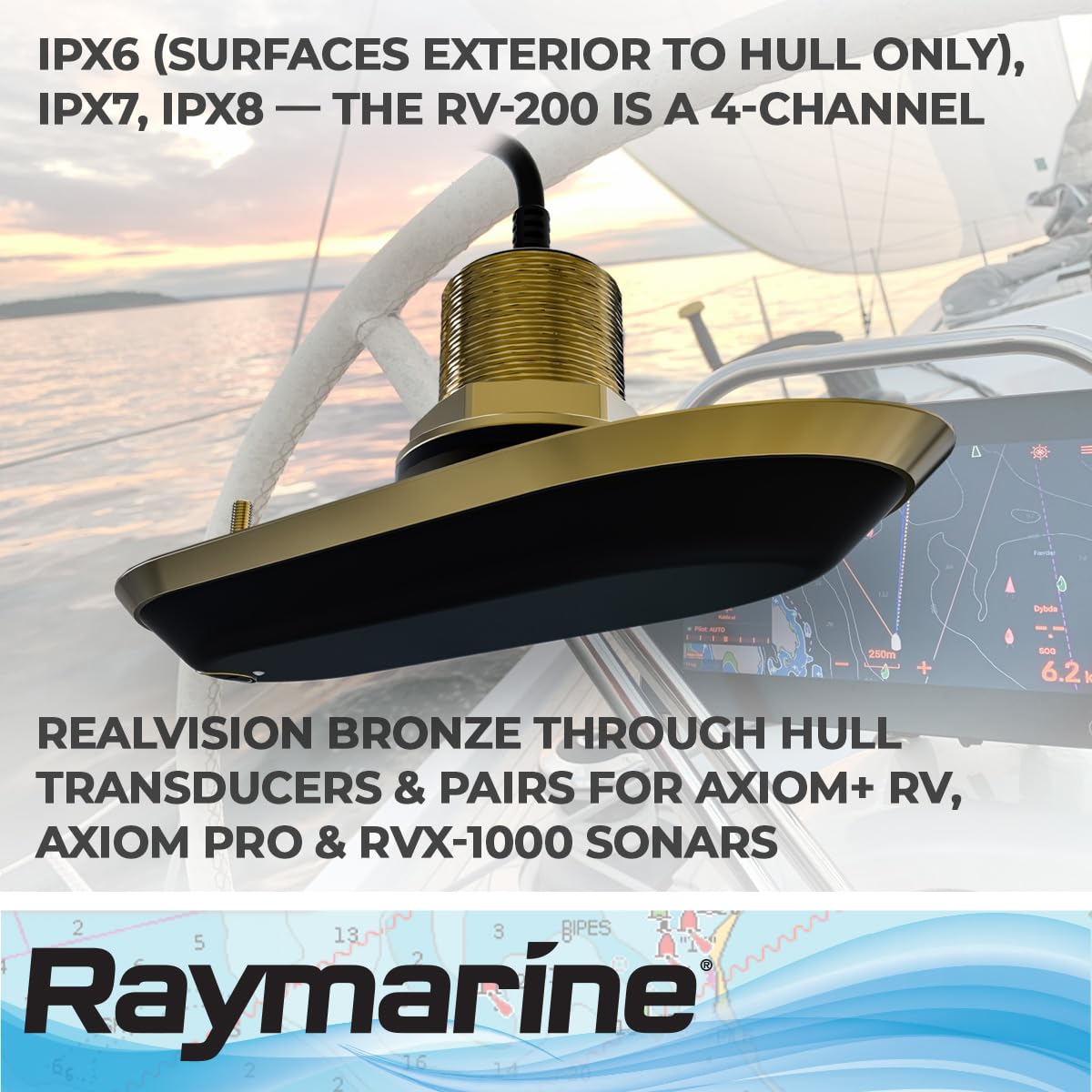

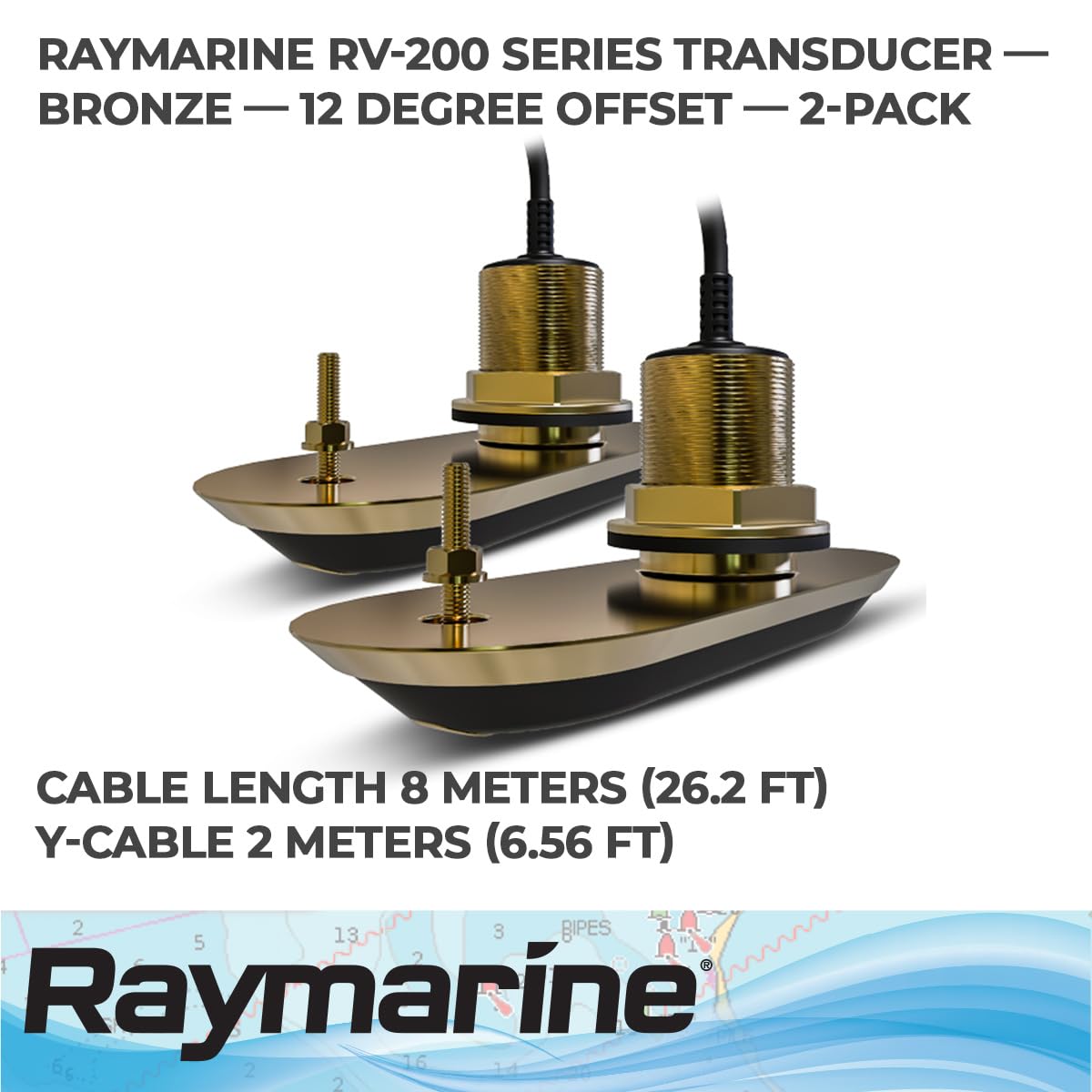

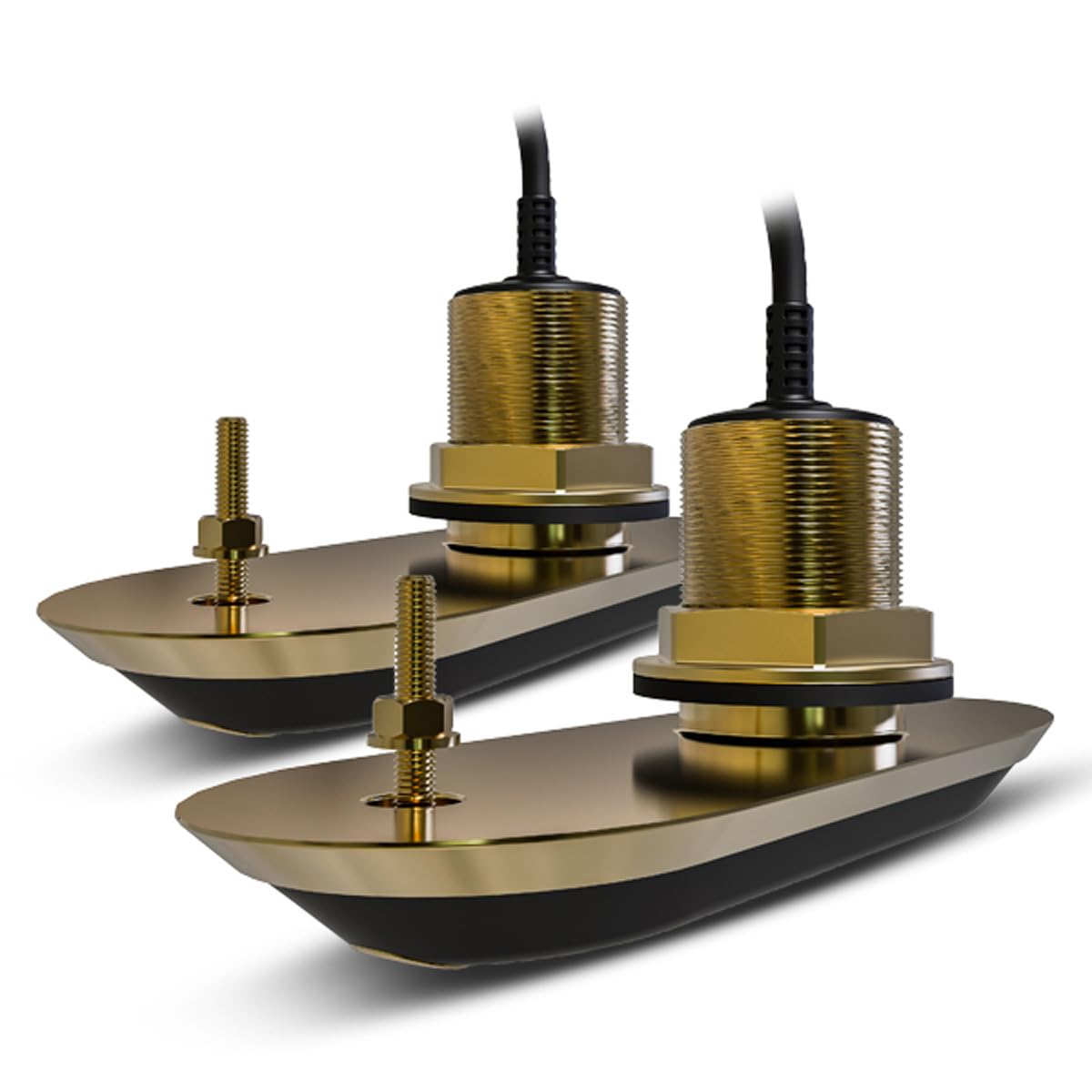

The Raymarine RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°, eliminating the need for fairing blocks.
The low-profile design slips through the water without causing drag or cavitation.
The near-flush RV-212 system is also effective on trailered boats.
The RV-212 system features rugged cast-bronze through hull bodies that are suitable for fiberglass or wooden hulls.
One transducer transmits and receives to port and downwards, while the other transmits to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions.
Each transducer includes a 2-meter pigtail, joining y-cable, and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet).
