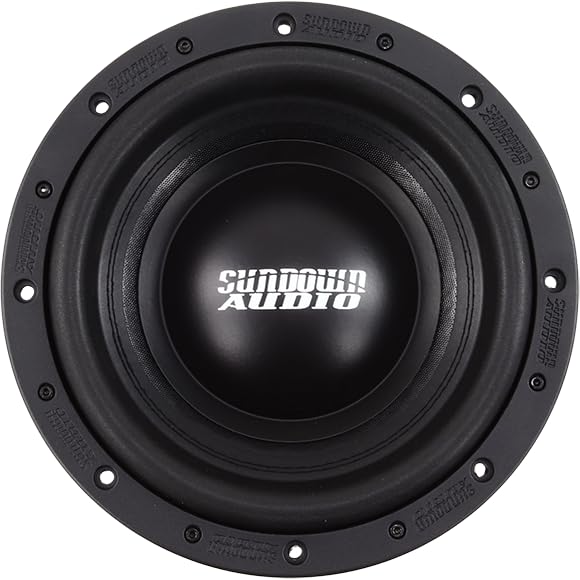

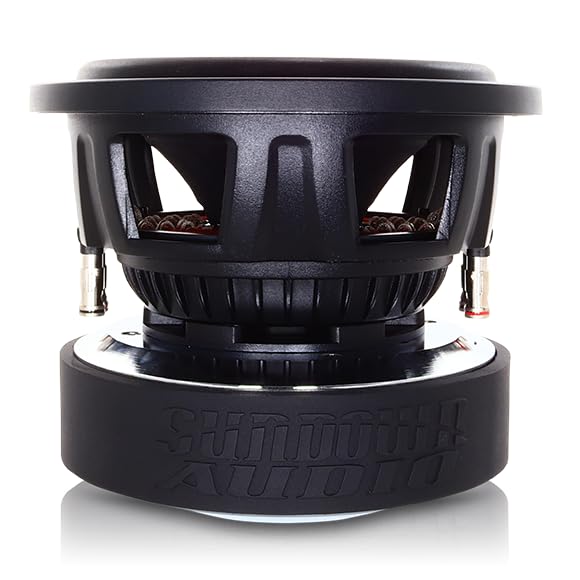

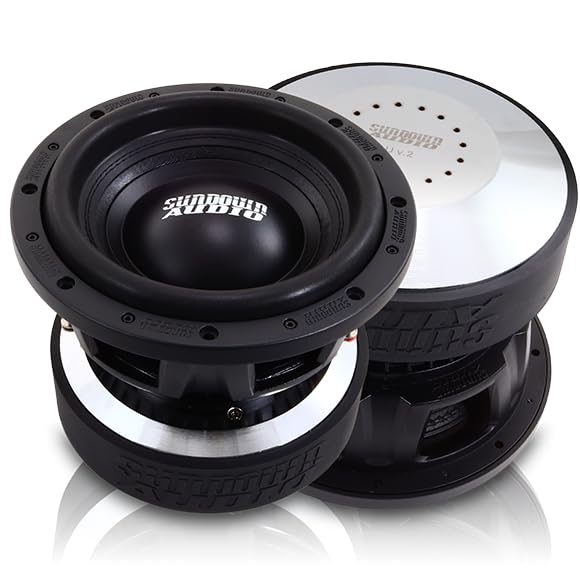

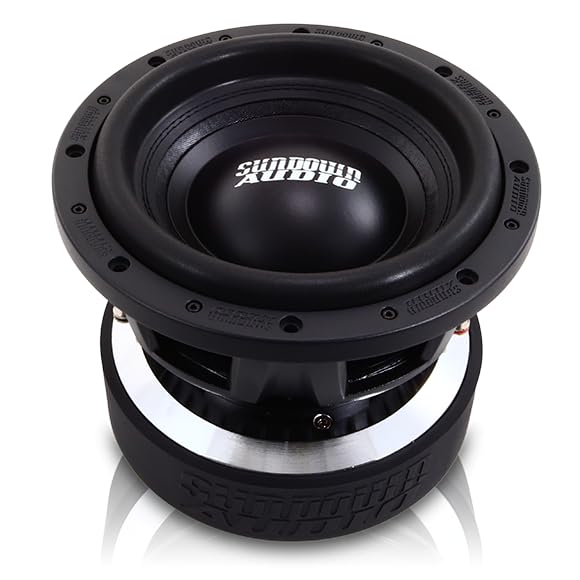

Sundown Audio U Series 10" v.2 D2 Subwoofer: Unleash Competition-Grade Bass.
The Sundown Audio U-10 v.2 D2 10" Subwoofer delivers unparalleled bass performance.
Engineered to excel in both demanding SPL competition lanes and everyday musical enjoyment, this premier "standard suspension" woofer combines formidable power handling with an array of advanced features.
The U-10 v.2 D2 sets a new standard for high-performance car audio, delivering deep, precise, and incredibly impactful bass.
Extreme Power Handling & Dynamic Output: With an incredible 2000 Watts RMS and 4000 Watts Peak power handling capability, the U-10 v.2 D2 is a force to be reckoned with.
This robust capacity ensures that the subwoofer can reproduce the most demanding low-frequency content with astounding clarity, impact, and sustained output.
Its Sensitivity (Sens) of 82.9533dB signifies efficient conversion of power into acoustic energy.
Optimized Enclosure Versatility: The U-10 v.2 D2 is optimized for small ported enclosures, with a recommended size of 1.0 cu ft net, a port area of 16 sq in, and a tuning frequency of 35Hz.
It also performs exceptionally well in compact 0.5 cu ft sealed enclosures.
The minimal Displacement of 0.21 cu ft ensures maximum usable air space within your chosen enclosure.
Advanced Thermal Management for Sustained Performance: The U-10 v.2 D2 incorporates a comprehensive suite of thermal management features.
It utilizes a 3” black aluminum voice coil former and high-temperature copper voice coil for superior heat dissipation.
A solid pole with vent channels, an aluminum shorting ring cap, rear gap-venting, and a series of 16 direct air-gap vents in the back plate all work in concert to actively cool the voice coil.
Rugged, Competition-Grade Construction: Built for extreme durability, the U-10 v.2 D2 features a heavy-duty cast basket and a custom, substantially thicker aluminum frame equipped with heat dissipation ribs.
The double-stitched surround ensures robust cone excursion control.
Enhanced Acoustic Precision & Control: A double-stacked 9.4-inch wide ferrite magnet system is coupled to a thick top plate, providing immense motor force.
The U v.2 motor features an extended pole piece to keep the 30mm Xmax voice coil under perfect control.
