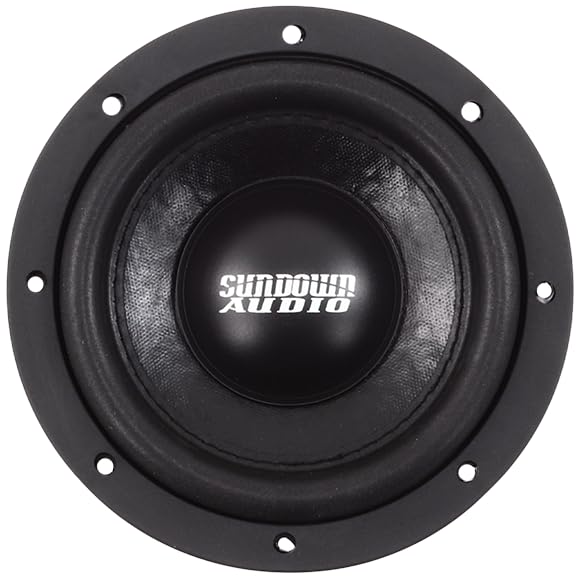

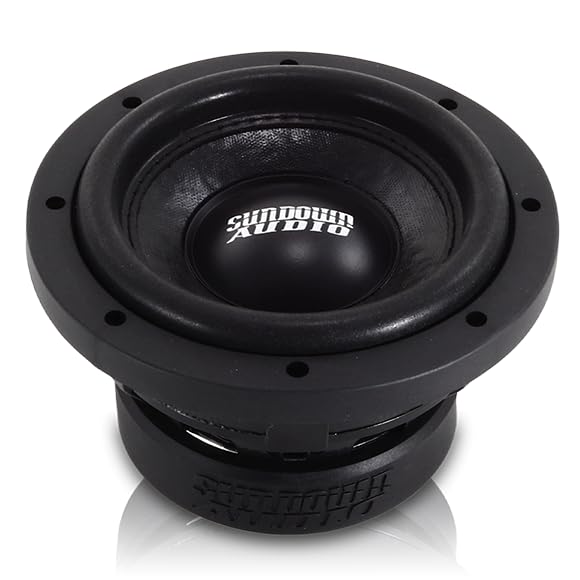

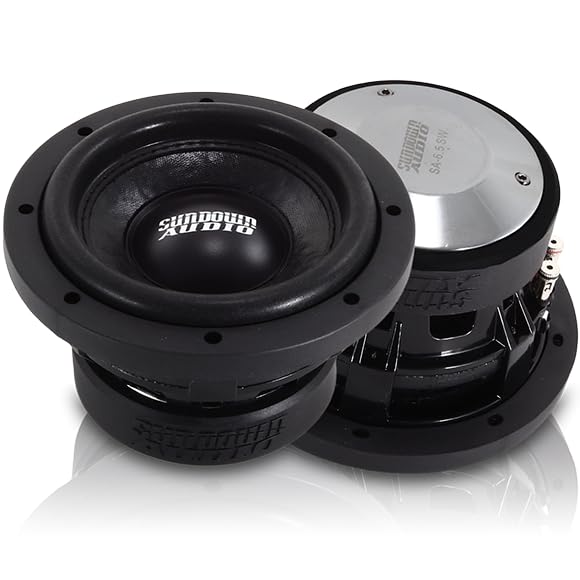

Sundown Audio X-Series v.2 6.5" Car Subwoofer – Competition-Grade Performance for Small Enclosures.
A new standard in low-frequency audio is experienced with the Sundown Audio X-Series v.2 6.5" Car Subwoofer.
Engineered for high power handling and ultra-deep bass, this competition-grade subwoofer is designed to deliver staggering SPL and precise, low-distortion sound from remarkably small enclosures.
Whether a seasoned audiophile or a dedicated bass-head, the X-Series v.2 brings a formidable blend of power, precision, and efficiency that will redefine your car audio experience.
Extreme Power & Deep Excursion.
The X-Series v.2 6.5" subwoofer is a true powerhouse, capable of handling 400 Watts RMS.

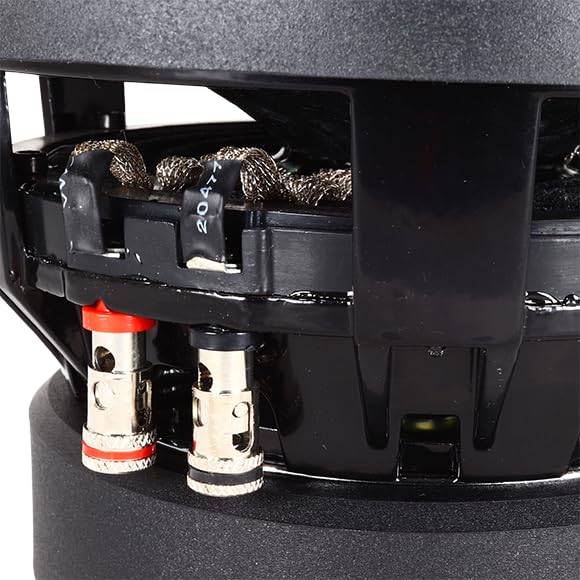

Its robust 4-Ohm Dual Voice Coil (DVC) configuration provides flexible wiring options for optimal amplifier matching.
Designed for extremely deep bass, this subwoofer features: 16mm Xmax (one-way linear excursion): Allowing for immense cone movement and powerful, accurate low-frequency reproduction.
Hyper-extended pole piece: Enhances magnetic linearity and excursion capabilities.
This combination of power and excursion ensures the X v.2 sets a new standard in the low-frequency/small-ported-box subwoofer category, effortlessly producing impactful bass that you feel as much as you hear.
Advanced Motor Structure & Next-Gen Engineering.

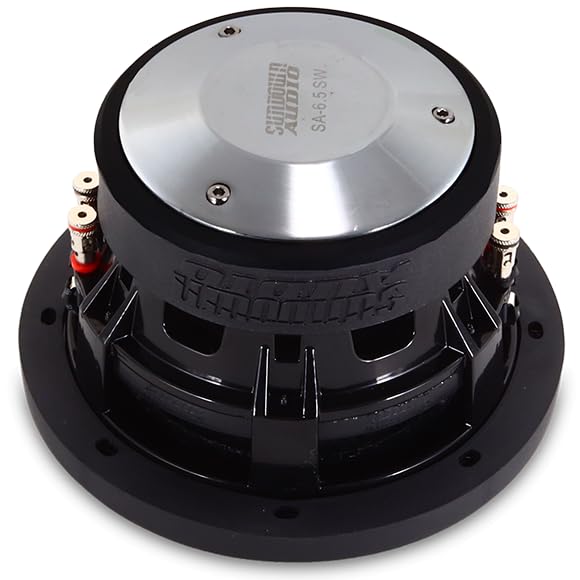

The X-Series v.2 stands apart with significant enhancements over its predecessors, showcasing Sundown Audio's commitment to relentless innovation: Triple-Stacked Magnet Assembly: Provides immense motor force, ensuring precise control over the voice coil and maximizing efficiency.
Large 2.25-inch Voice Coil: Handles high power inputs with exceptional thermal stability.
Improved Motor Ventilation: A vented top plate and enhanced motor ventilation keep the voice coil cool, allowing for sustained high-performance output without thermal compression.
Larger Motor Structure: The v.2 series boasts a significantly larger 220mm motor structure (compared to 190mm on the v.1 series), contributing to its superior power handling and control.
These engineering advancements ensure maximum linearity, incredibly low levels of distortion, and unparalleled bass extension even in compact enclosures.
Revolutionary Suspension & Built-to-Order Quality.
The X v.2 series features an incredibly linear suspension system, which is crucial for maintaining pristine sound quality at extreme excursion levels.
This includes the all-new Mega-Roll v.2 surround, a rugged and more linear update to the world-famous v.1 design.
This innovative surround ensures the subwoofer can achieve its 16mm Xmax with minimal distortion, delivering pure, unadulterated bass.
Each X-Series v.2 subwoofer is built to order, guaranteeing meticulous attention to detail and uncompromising quality control, making it a true competition-grade audio component.
Optimized for Versatile Enclosures & Easy Installation.
The Sundown Audio X-Series v.2 6.5" subwoofer offers remarkable flexibility for enclosure design, allowing you to fine-tune its performance to your specific preferences: Compact Sealed Enclosure: Optimized for an incredibly small 0.15 cubic feet, ideal for tight spaces where deep bass is desired.
Ported Enclosure Versatility: Performs exceptionally well in 0.25 to 0.4 cubic feet NET enclosures, with a recommended tuning range of 35-45Hz and a port area of 3.5-6 square inches.
This flexibility allows for even greater low-end extension.
Minimal Displacement: With a mere 0.03 cubic feet of displacement, it minimizes wasted enclosure volume.
Physical Dimensions: Mounting Depth: A compact 4 inches (101.6mm) allows for easier integration into various vehicle installations.
Cut-Out Diameter: 5.52 inches (140.2mm), with a suggested notch for terminals for a perfect fit.
Overall Outer Diameter: 6.75 inches (171.45mm) with the gasket.
With its precision engineering and adaptable design, the Sundown Audio X-Series v.2 6.5" subwoofer delivers a truly exceptional listening experience, bringing concert-level bass to your vehicle.
