Manufacturer: EK CHAIN.
Manufacturer Part Number: 205-530SR-120.
Make: UNIVERSAL.
Model: ALL MODELS.
Year: ALL YEARS.

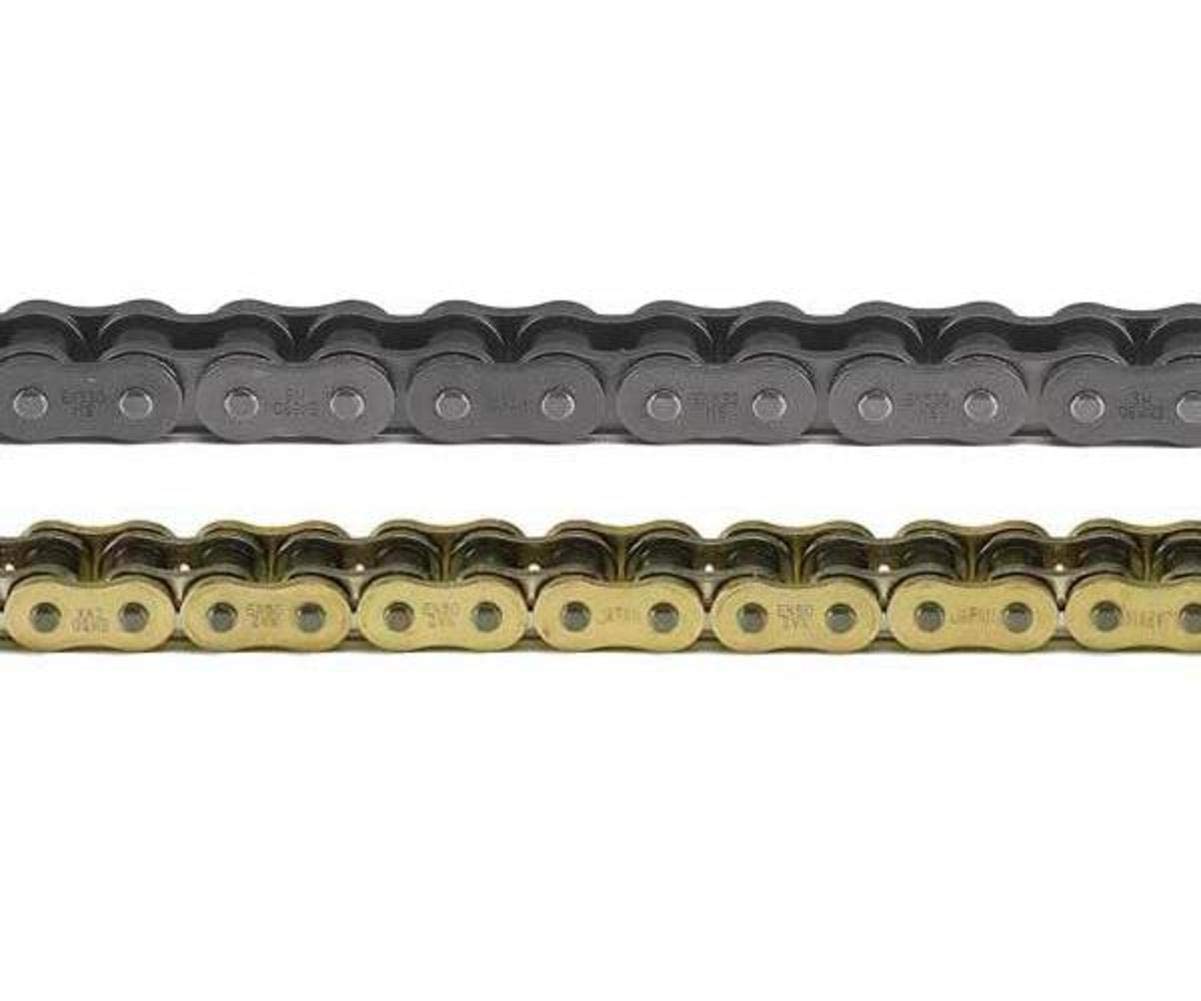

Style: 530 SR HEAVY DUTY CHAIN-120 LINKS.
Color: NATURAL.
Product Features: EK's heavy duty non-sealed chains offer another option for smaller displacement motorcycle owners.
The heavy duty version of our non-sealed chains offers increased wear life compared to the standard non-sealed versions.
Pitch: 5/8 in / 15.875 mm.
Width: 3/8 in / 9.53 mm.
Pin diameter: 5.08 mm.
Pin length: 21.30 mm.
Roller diameter: 10.16 mm.
Plate Thickness inner: 2.00 mm.
Plate Thickness outer: 2.00 mm.
Tensile strength: 8000 lbs / 35.6 kN.
Wear Life Index std.
as 100: 200.
Weight 100 links: 3.71 lbs / 1.69 kg.
Disp.
max cc's: Street 400 cc.
Dirt N/A.
HP max: 50.
Connecting Link: standard SPJ (slip fit clip type).
Connecting Link: optional PL (pin link).
NOTE: Equipped with solid bushings.
