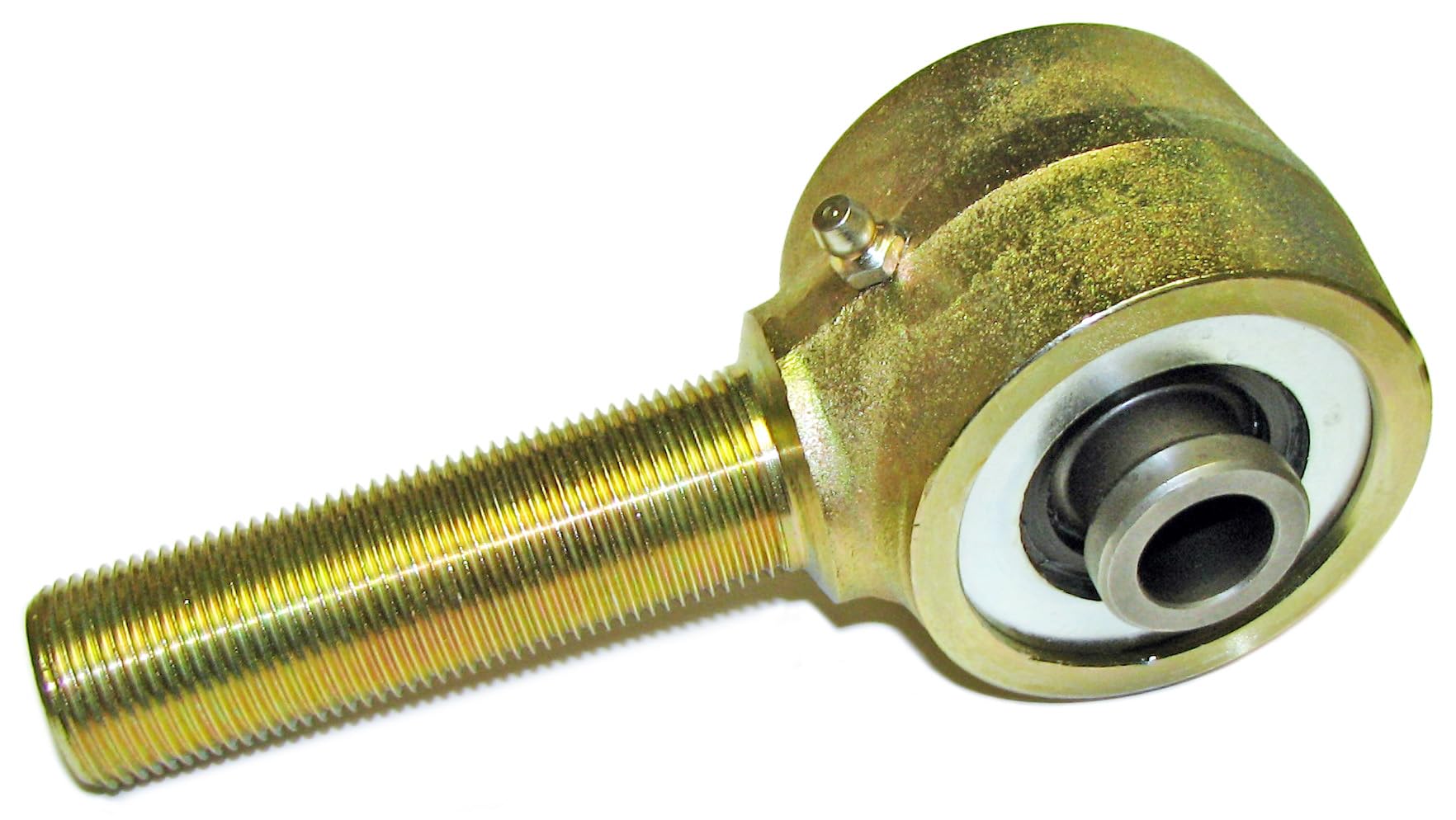

RockJock's forged Johnny Joints for fabricators and builders of suspension systems offer unrestricted movement of 30 degrees in any direction compared to 22 degrees on a common heim joint!
Johnny Joint rod ends provide cushioning that a heim joint cannot offer via high-density urethane bushings that encase the inner ball.
The center balls, which are heat treated, are cross-drilled for lubrication with a thru-bolt, and the internals of the joint are retained with 2 heavy-duty, heat-treated side washers and a snap ring.
This joint is a 2 1/2 in.
diameter, fitted with a zerk fitting for greasing, has 2 1/4 in.
of 1 in.-14 left-hand threads on the shank, and features a 2.625 in.
mounting width ball with a .640 in.
thru bolt hole.
It is finished in gold zinc plating.
