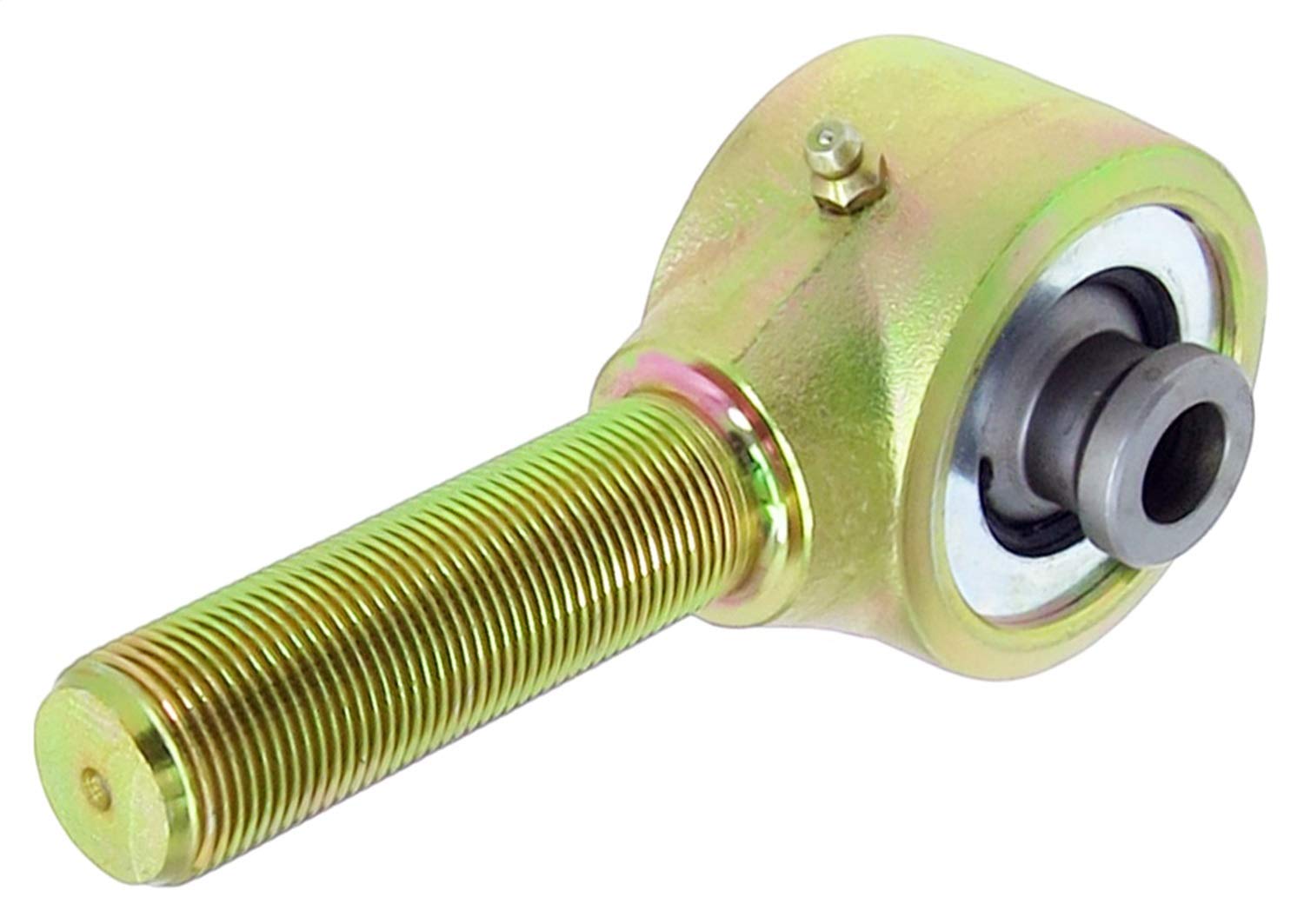

Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball

$75.12 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Rock Jock
Narrow forged Johnny Joint with 1" LH thread and 2.625" ball.
5 in stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball
Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball
View Detail
Type
Chassis
Title
Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball
Price
$75.12 USD
Vendor
Rock Jock
Description
RockJock's forged narrow Johnny Joints for fabricators and suspension system builders offer unrestricted movement of 40 degrees in any direction compared to 22 degrees on a common heim joint!Cushioning that a heim joint cannot provide is offered by Johnny Joint rod ends via high-density urethane bushings that encase the inner ball.The center balls, which are heat treated, are cross-drilled for thru-bolt lubrication, and the internals of the joint are retained with 2 heavy duty, heat treated side washers and a snap ring.This joint is a diameter of 2 1/2 in., fitted with a zerk fitting for greasing, has 2 1/4 in.of 1 in.-14 left hand threads on the shank, and features a mounting width ball of 2.625 in.with a .562 in.thru bolt hole.Finished in gold zinc plating.

More about this item : Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball

RockJock's forged narrow Johnny Joints for fabricators and suspension system builders offer unrestricted movement of 40 degrees in any direction compared to 22 degrees on a common heim joint!

Cushioning that a heim joint cannot provide is offered by Johnny Joint rod ends via high-density urethane bushings that encase the inner ball.

The center balls, which are heat treated, are cross-drilled for thru-bolt lubrication, and the internals of the joint are retained with 2 heavy duty, heat treated side washers and a snap ring.

This joint is a diameter of 2 1/2 in., fitted with a zerk fitting for greasing, has 2 1/4 in.

of 1 in.-14 left hand threads on the shank, and features a mounting width ball of 2.625 in.

with a .562 in.

thru bolt hole.

Finished in gold zinc plating.

Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball
Key Features
  • Johnny Joint Rod End, 2 1/2 in., Narrow Forged, 2.625 in. X .562 in. Ball, 1 in.-14 LH Threaded Shank, Externally Greased
  • Heat Treated Center Balls Are Cross-Drilled
  • High-Density Urethane Bushings Encasing Inner Ball
  • 2 Heavy Duty, Heat Treated Side Washers
  • Snap Ring Retaining Joint Internals
  • Fitted With Zerk Fitting For Greasing
Technical Specifications
  • Length : 7.0 lb
  • Width : 4.0 lb
  • Height : 3.0 lb
  • Weight : 3.0 lb
Product Identifiers
  • ASIN B086QH8KJZ
  • UPC: 810038151915
Shipping Information
  • Ships From : United States
  • Brand : Rock Jock

Frequently Asked Questions About : Currie Enterprises 2.5" Narrow Forged Johnny Joint With 1" LH Thread and 9/16" X 2.625" Ball

01 What is the diameter of the joint?

This joint is a diameter of 2 1/2 in.

02 What type of thread does the shank have?

The shank has 1 in.-14 left hand threads.

03 What is the mounting width of the ball?

The mounting width ball is 2.625 in.
