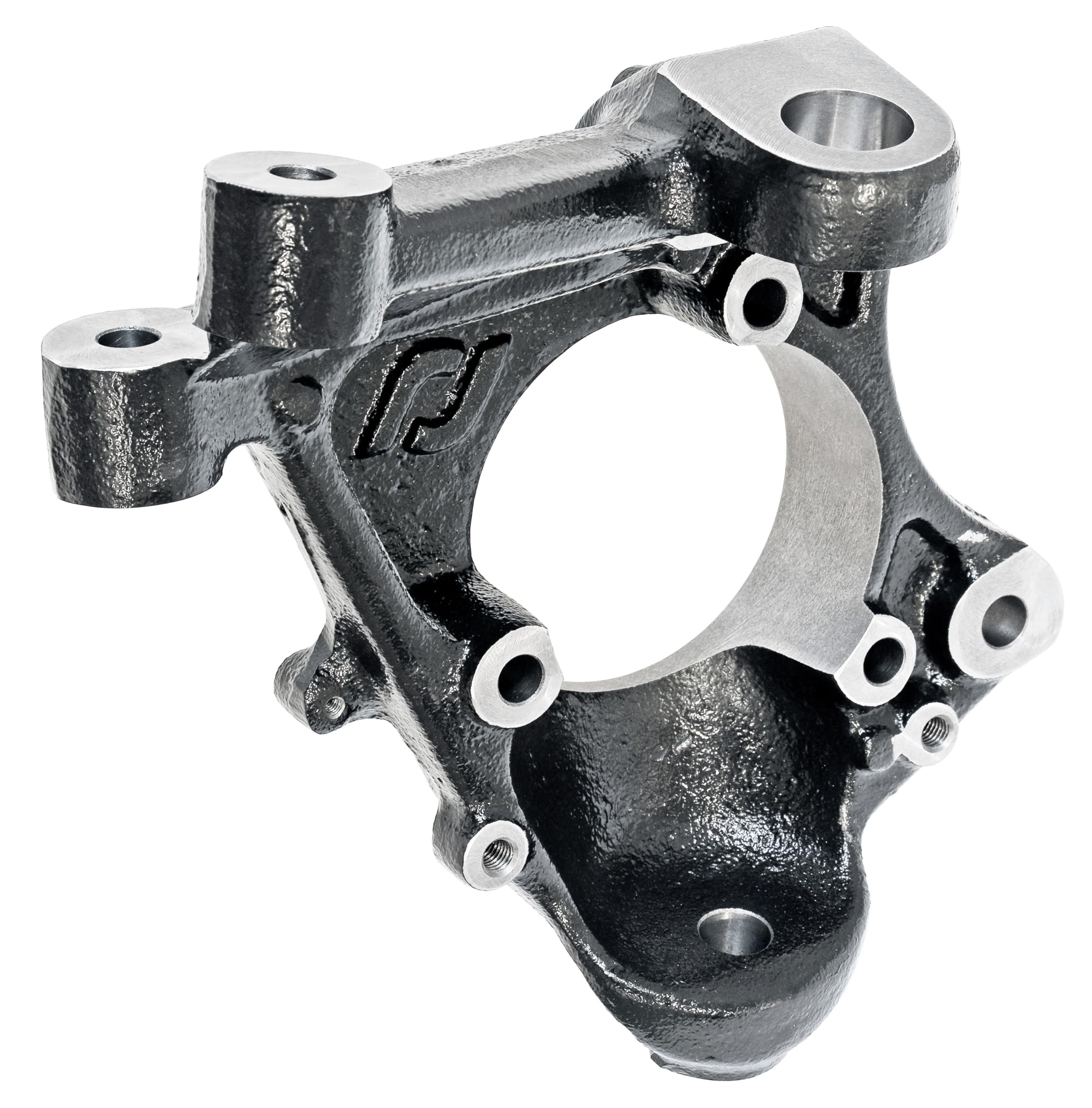

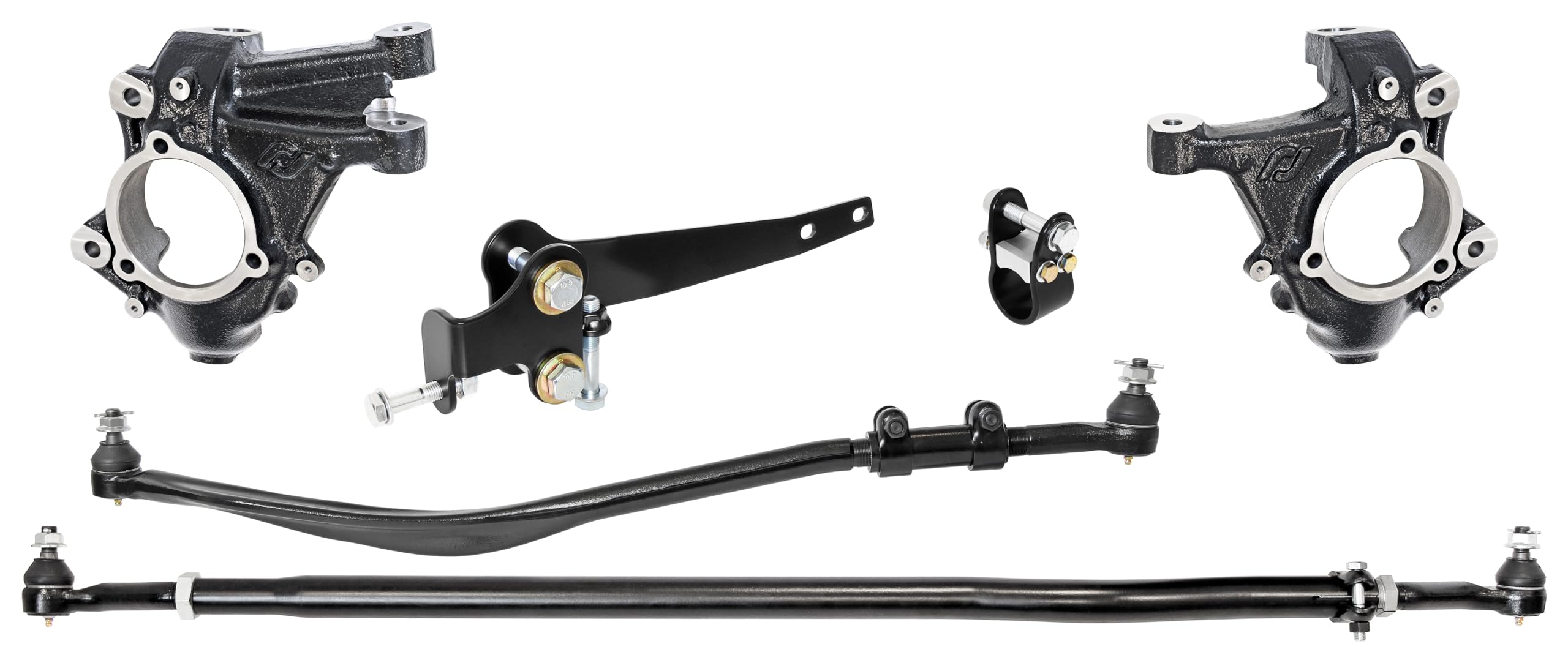

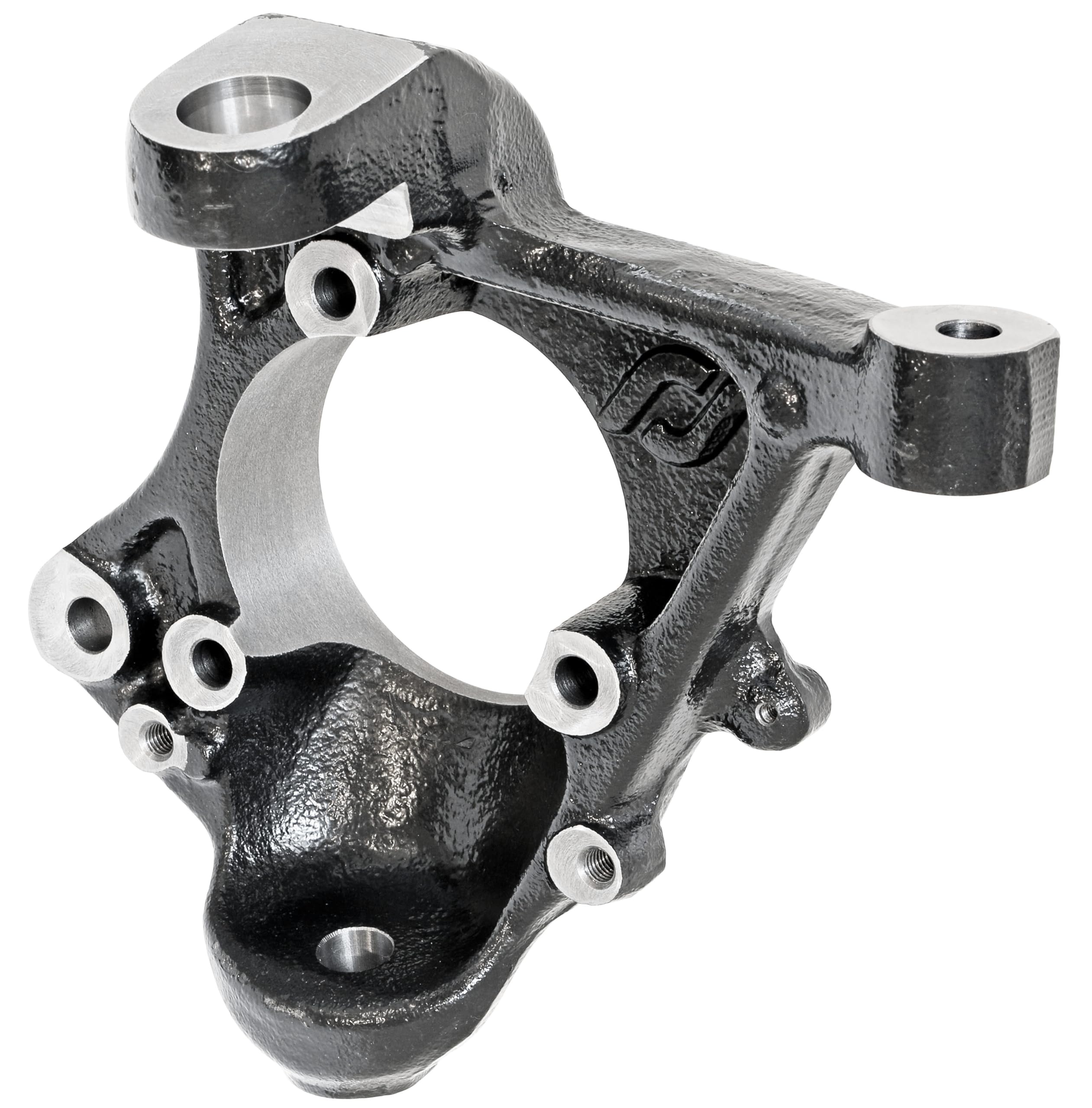

The Heavy Duty High Steer Knuckle Kit from RockJock replaces the aluminum factory knuckles for JL Wrangler, JL Unlimited, and JT Gladiator vehicles (with standard Sport width axle) and raises your tie rod 2 3/4 in.
and your drag link 2 1/2 in..

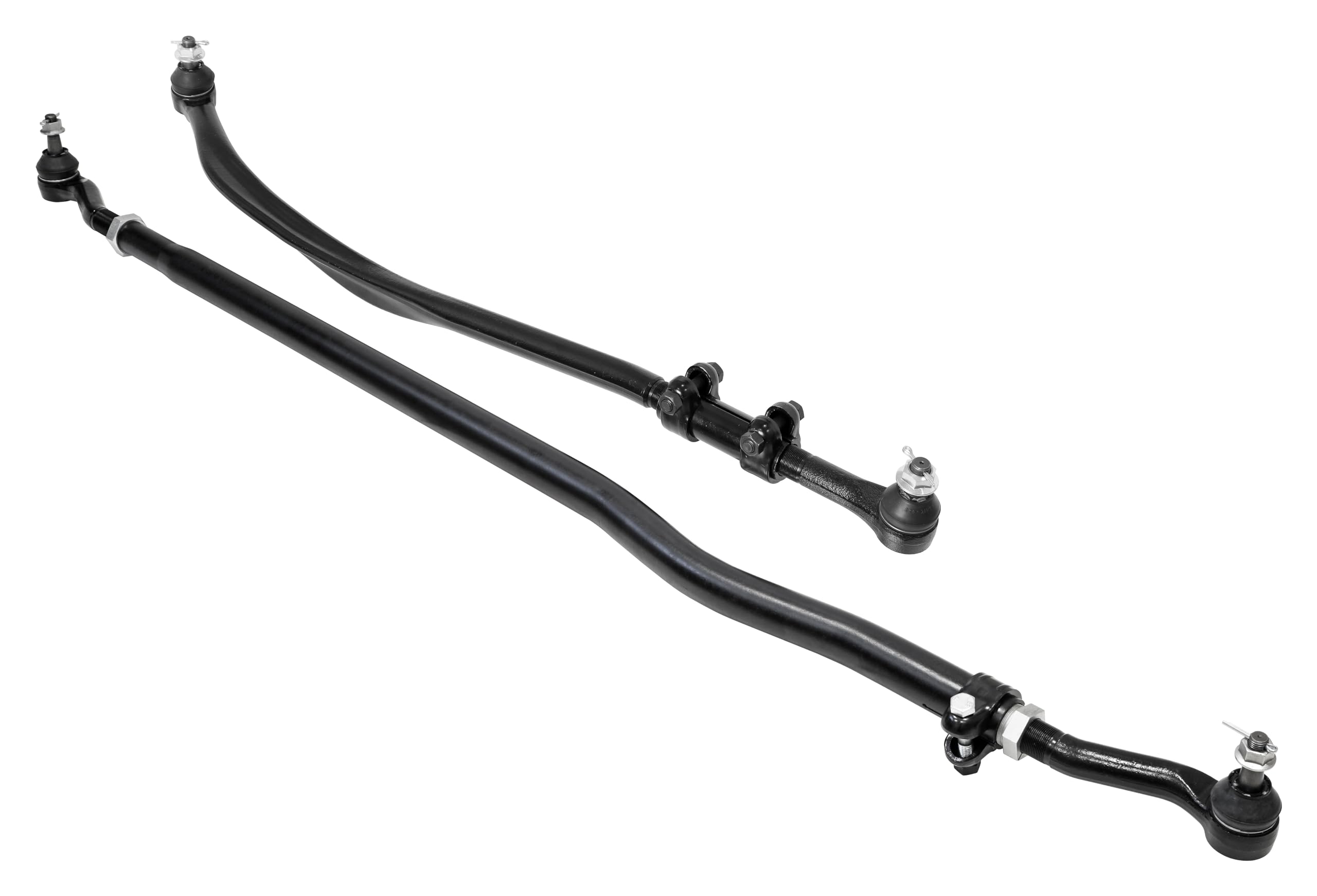

The included Currectlync steering features a forged, organically shaped drag link for maximum up travel and a 42mm tie rod.
All steering rod ends are made of forged steel.

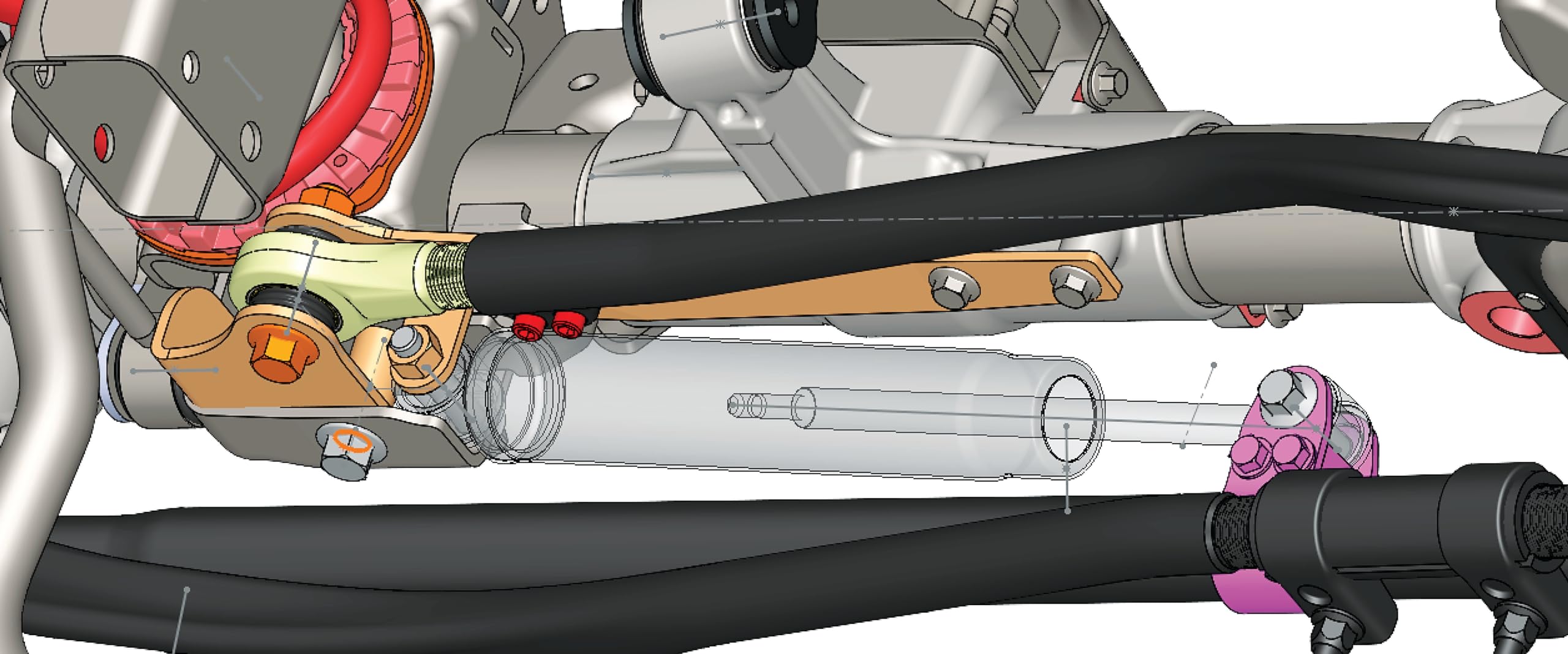

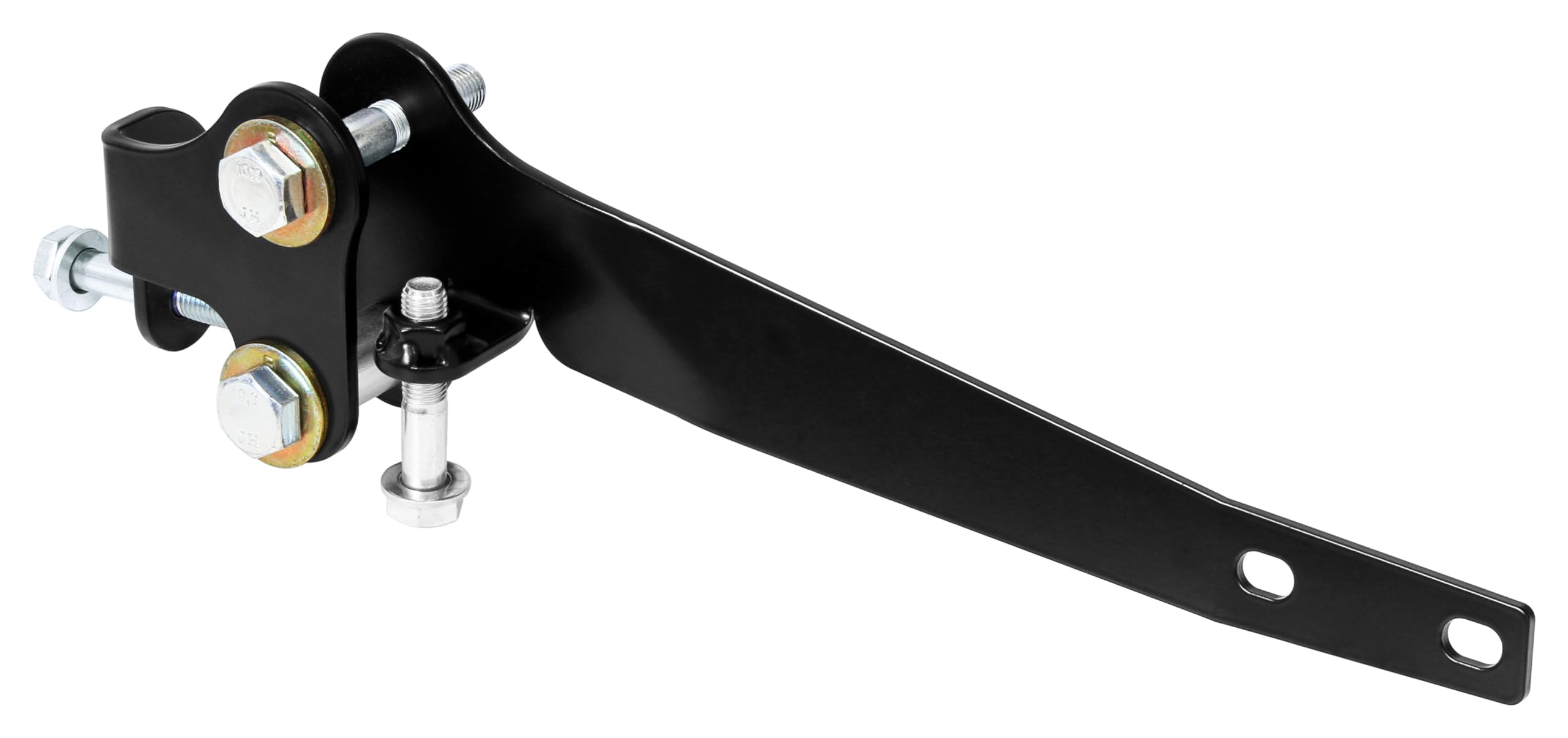

The kit also includes a fully integrated trac bar relocation and steering stabilizer shock mounting bracket that raises your trac bar 2 in.
and corrects its geometry while providing a raised mounting point for your steering stabilizer shock, which mounts dramatically higher, up and behind the new tie rod location to protect it from rocks.

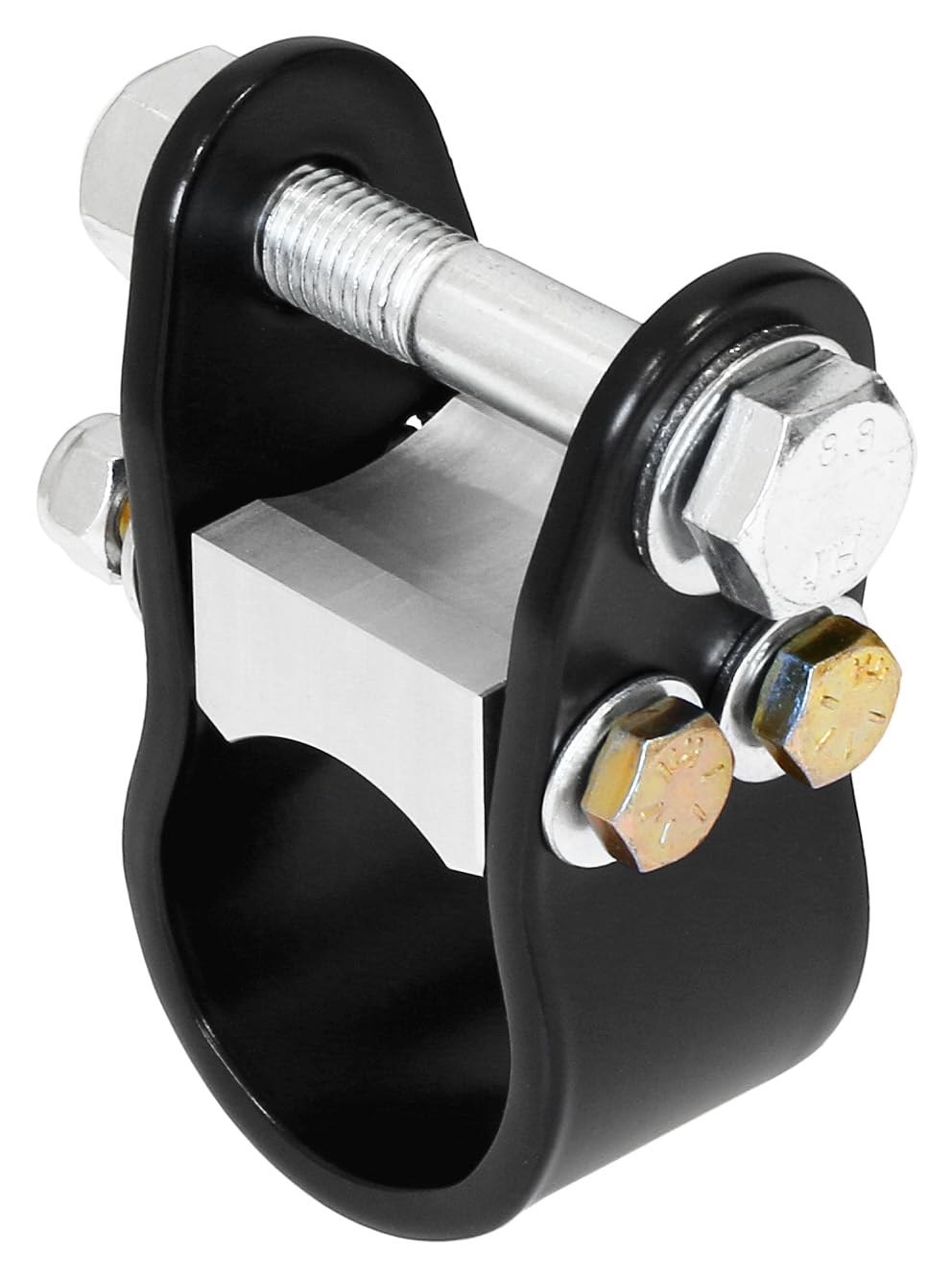

The fabricated steel tie rod clamp from RockJock installs to provide an easy hook-up point for the other end of your shock.
All other factory outer components are retained with the new knuckles, including outer axles, unit bearings, dust shields, and brakes.
The use of RockJock's RJ-9120FJLF forged, organically shaped front trac bar is also strongly encouraged to ensure that all components nest together for maximum up travel as engineered.
