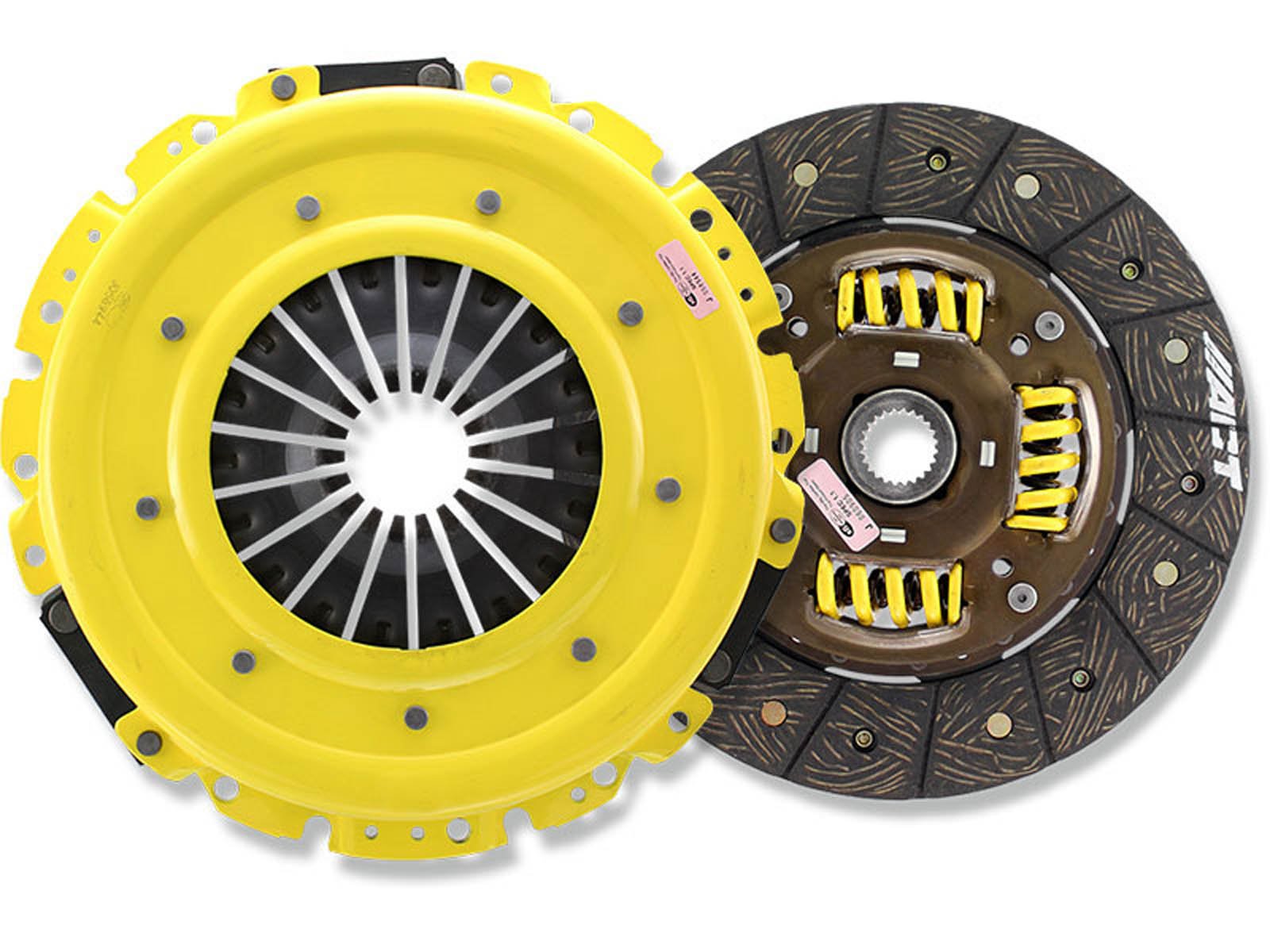

The clutch kit from ACT includes an Xtreme pressure plate, release bearing, pilot bearing, alignment tool, and Performance Street disc.
The Xtreme pressure plate allows for a 50 to 120 percent increase in clamp load compared to the stock unit.
ACT pressure plates utilize an exclusive diaphragm design to maximize clutch life, reduce deflection, and increase clamp load.
An exclusive four-stage heat-treating process is endured by all diaphragms for performance.
Precision cover stampings provide rigidity and consistency, with some being reinforced to reduce flex, improve efficiency, and enhance the feel of the pressure plate.
New units are used for manufacturing ACT pressure plates, not rebuilt from worn-out parts, and they are 100 percent tested and computer balanced for smooth operation at high RPM.
The pedal feel of ACT's Xtreme pressure plates is moderate to stiff.
Recommended for use with a street or race disc, Xtreme pressure plates meet SFI Specification 1.1 and are legal in all racing organizations requiring SFI certification.

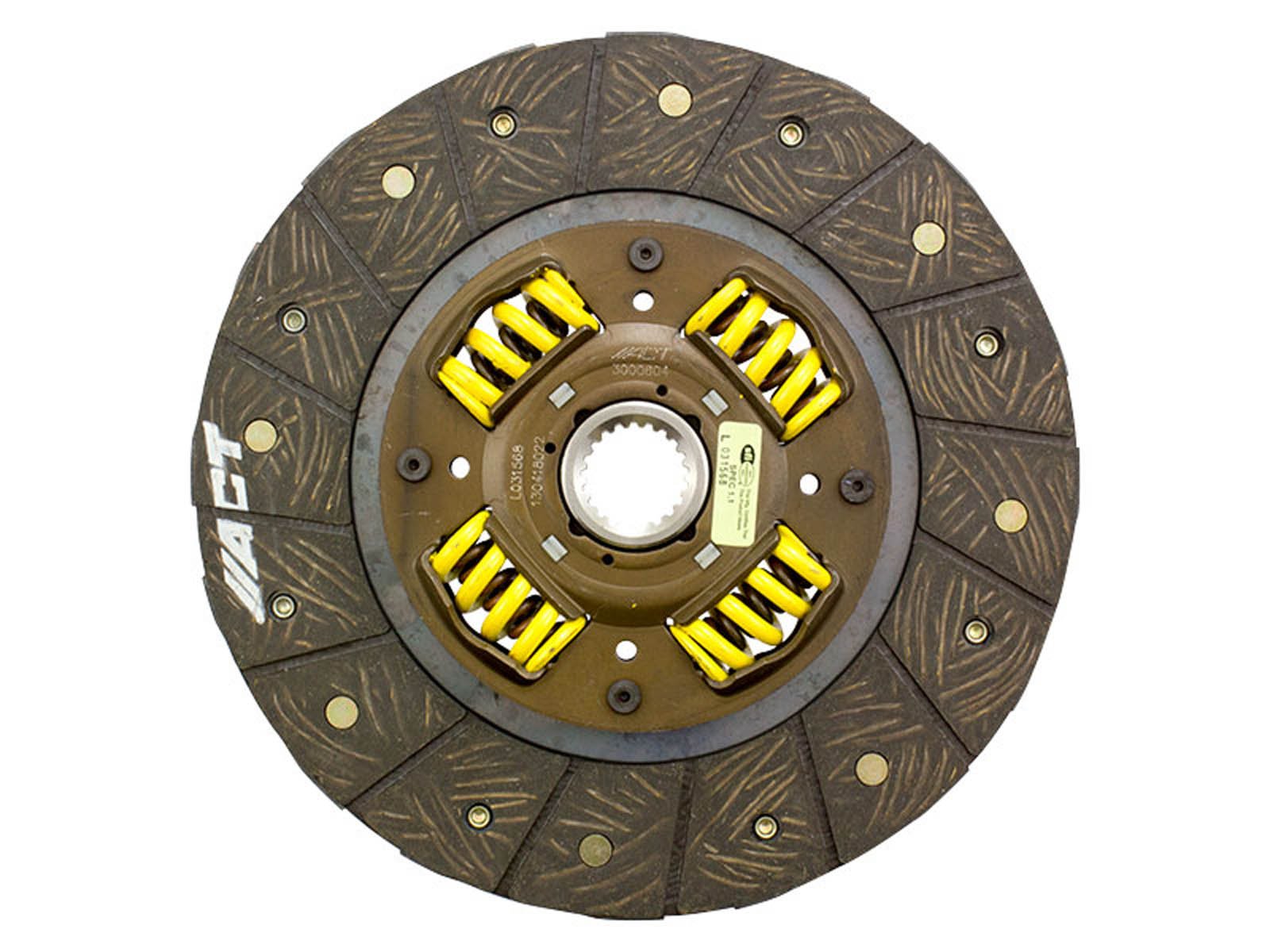

Most popular applications have ACT's Performance Street discs available.
These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates.
Higher copper content friction lining is present in Performance Street discs for heat tolerance, along with steel-backed lining for greater burst strength and durability.
Top-grade rivets securely fasten the part together, with the rivet design and materials carefully selected for maximum strength.
Similar to factory clutch discs, ACT spring-centered assemblies use bushings and cone springs.
This creates frictional dampening that reduces noise and improves clutch life.
All Performance Street discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit is completed with a release bearing, pilot bearing, and alignment tool.
