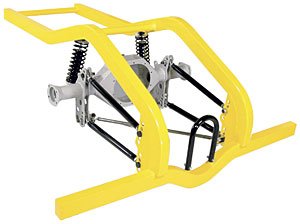

4-Link Frame Kits 24" Wide 12-Way Adjustable Coil-Over Shock Progressive Rate Springs 1,900 to 2,900 lbs./in.
Spring Rate Frame Kit, Ladder Bar, 24 Inch, Coil Over Shock, 1900-2900 lbs Coil Springs 4-Link Frame Kit, 24" Width, 12-Way Adj.
Coil-Over Shock, Progressive Rate Spring for 1,900 lbs to 2,900 lbs overall weight Frame Kit comes with the following items: 4-Link Frame Rails - Specially engineered profile clears suspension and axle components while accommodating low ride height and wide tires Rugged 2" x 3" construction makes them strong without adding unnecessary weight 2" x 3" crossmember - Mandrel formed for uniform profile 3.5" drop center makes it adaptable to virtually any chassis design 60" wide Diagonal Link - 3/4" O.D.
DOM steel with 1/2" Spherical Rod Ends for easy, on-chassis adjustment Driveshaft Loop - 1-1/8" O.D.
mandrel formed Round Tube contains driveshaft during U-joint failure Shock Crossmember - Tubular design provides high strength with light weight Upper & Lower Shock Mounts - Provides 6" of ride height adjustment 4-Link Kit, Part No.
C2017 - Offers enhanced adjustability over a ladder bar suspension for increased performance 12-Way Adjustable Coil-Over Shocks, Part No.
C2770 - Externally adjustable with CNC machined billet aluminum threaded body that allows the included spring seats to be threaded up or down for preload and ride height, shocks also have 1" wide top/bottom bearings Springs - 2.5" I.D.
x 12" long, premium-grade chrome silicone steel, powder coated for durability.
Progressive Rate Springs for a vehicle with an overall weight range of 1,900-2,900 lbs.
