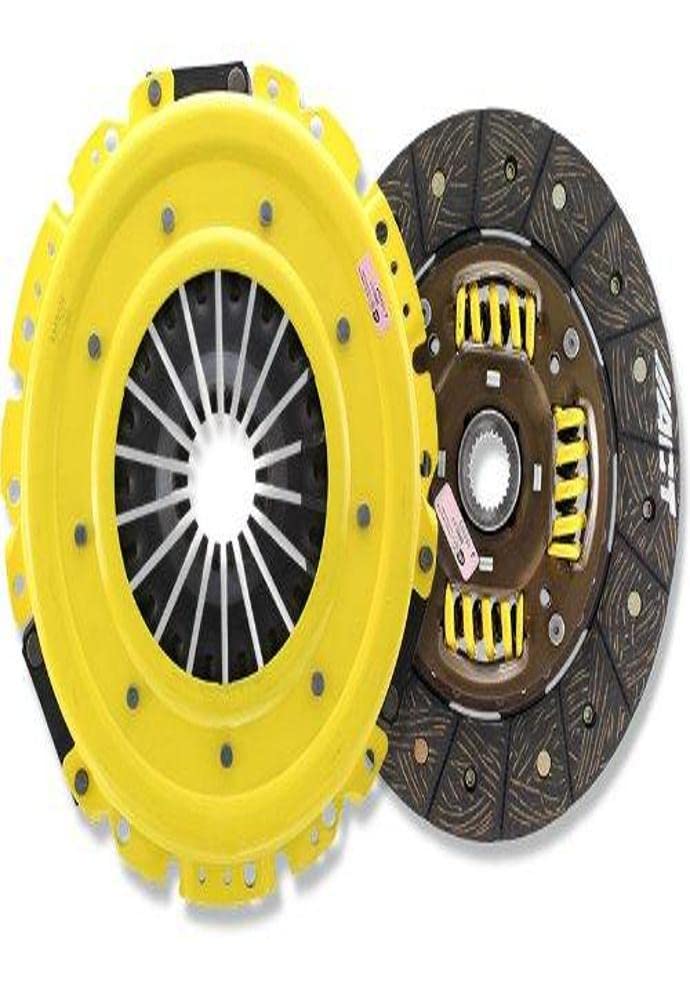

The ACT clutch kit includes an Xtreme pressure plate, Performance Street disc, release bearing, pilot bearing, and alignment tool.
A 50 to 120 percent increase in clamp load over the stock unit is allowed by the Xtreme pressure plate.
Exclusive diaphragm design is used by ACT pressure plates to increase clamp load, reduce deflection, and maximize clutch life.
An exclusive four-stage, heat-treating process is endured by all diaphragms for unparalleled performance.
Precision cover stampings are present in ACT pressure plates to provide rigidity and consistency, and some are reinforced to reduce flex; improve efficiency and the feel of the pressure plate.
New units, not rebuilt from worn out parts, are used to manufacture ACT pressure plates, which are 100 percent tested and computer balanced for smooth operation at high RPM.
A moderate to stiff pedal feel is present in ACT's Xtreme pressure plates.
Use with a street or race disc is recommended for Xtreme pressure plates.
SFI Specification 1.1 is met by Xtreme pressure plates and they are legal in all racing organizations that require SFI certification.
Most popular applications have ACT's Performance Street discs available.
Modified with reduced marcel for faster shift action to complement ACT pressure plates, these discs are.
Higher copper content friction lining for heat tolerance and steel-backed lining for greater burst strength and durability are present in Performance Street discs.
Top grade rivets are also featured to securely fasten the part together.
Maximum strength is ensured by the careful selection of rivet design and rivet materials.
Similar to factory clutch discs, ACT spring-centered assemblies use bushings and cone springs.
Frictional dampening is created by this, which improves clutch life and reduces noise.
All Performance Street discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit is completed with a release bearing, pilot bearing, and alignment tool.
