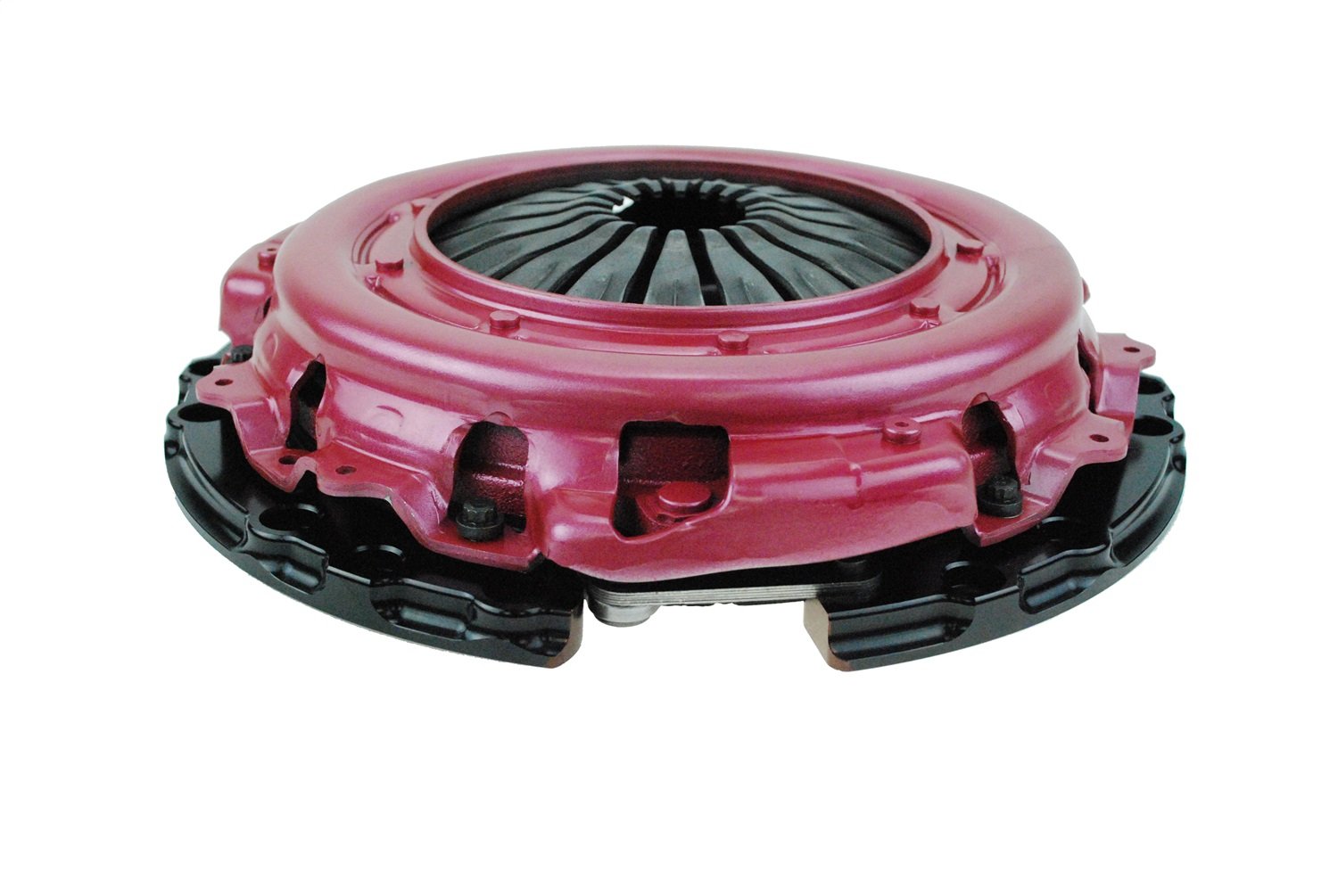

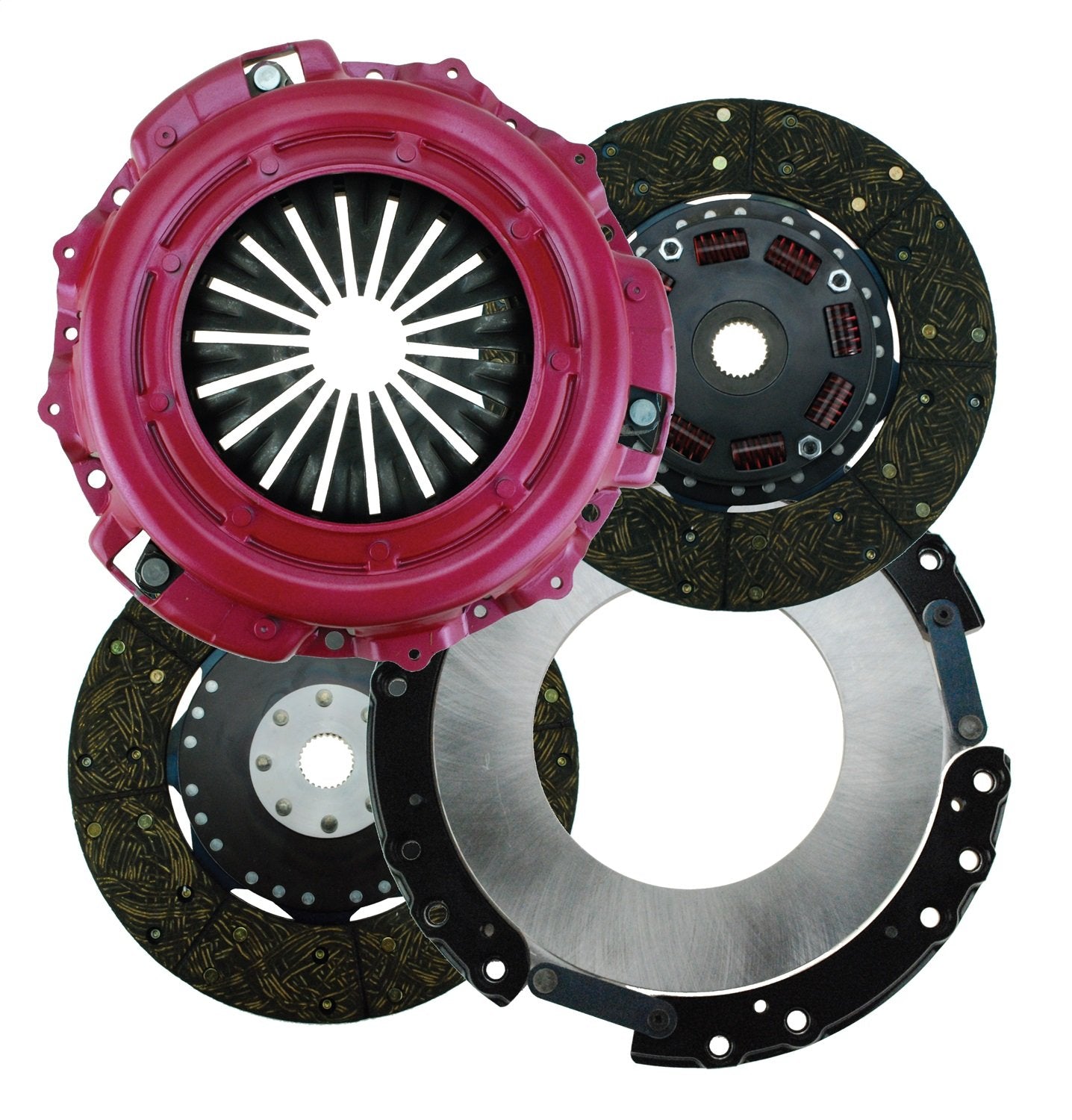

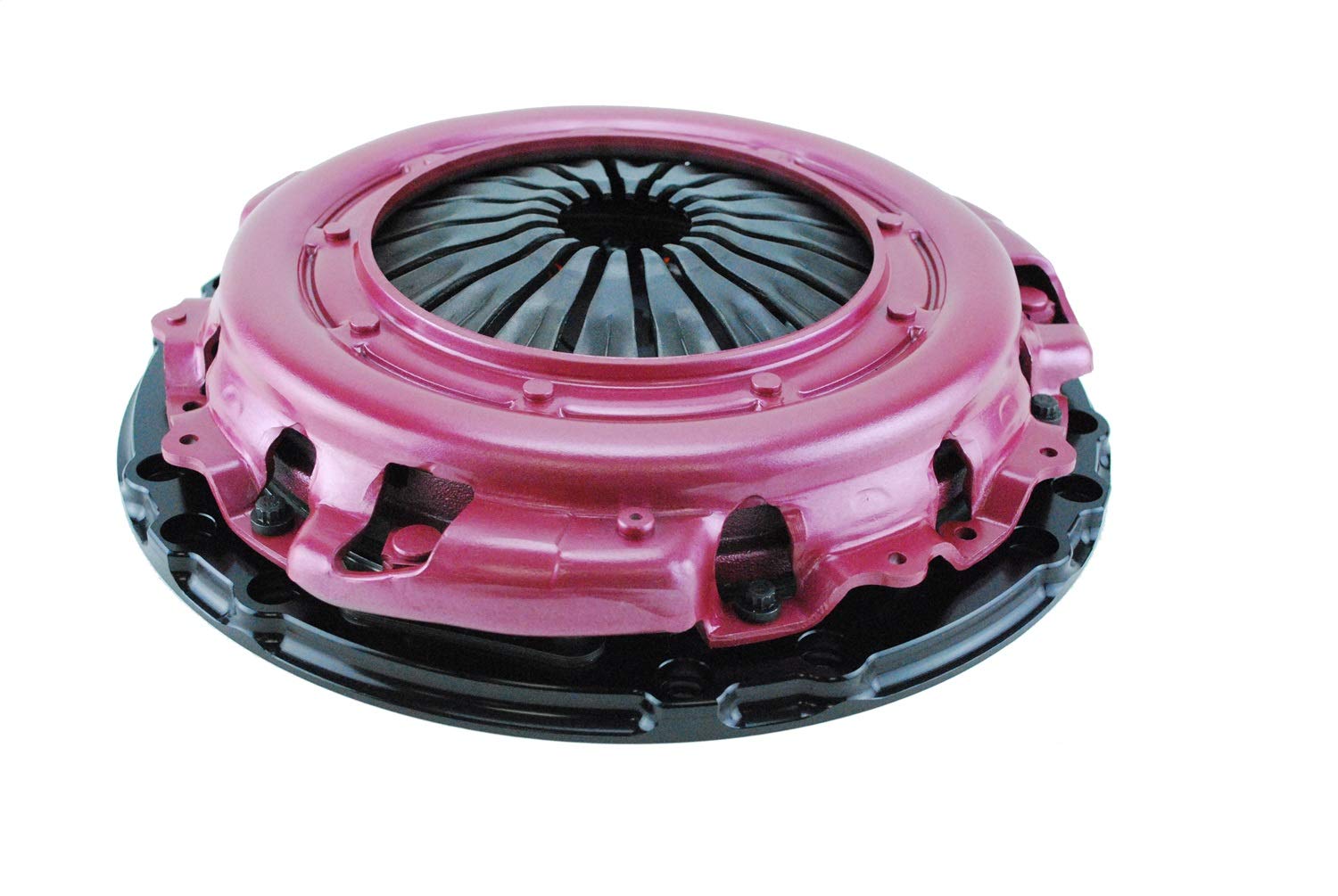

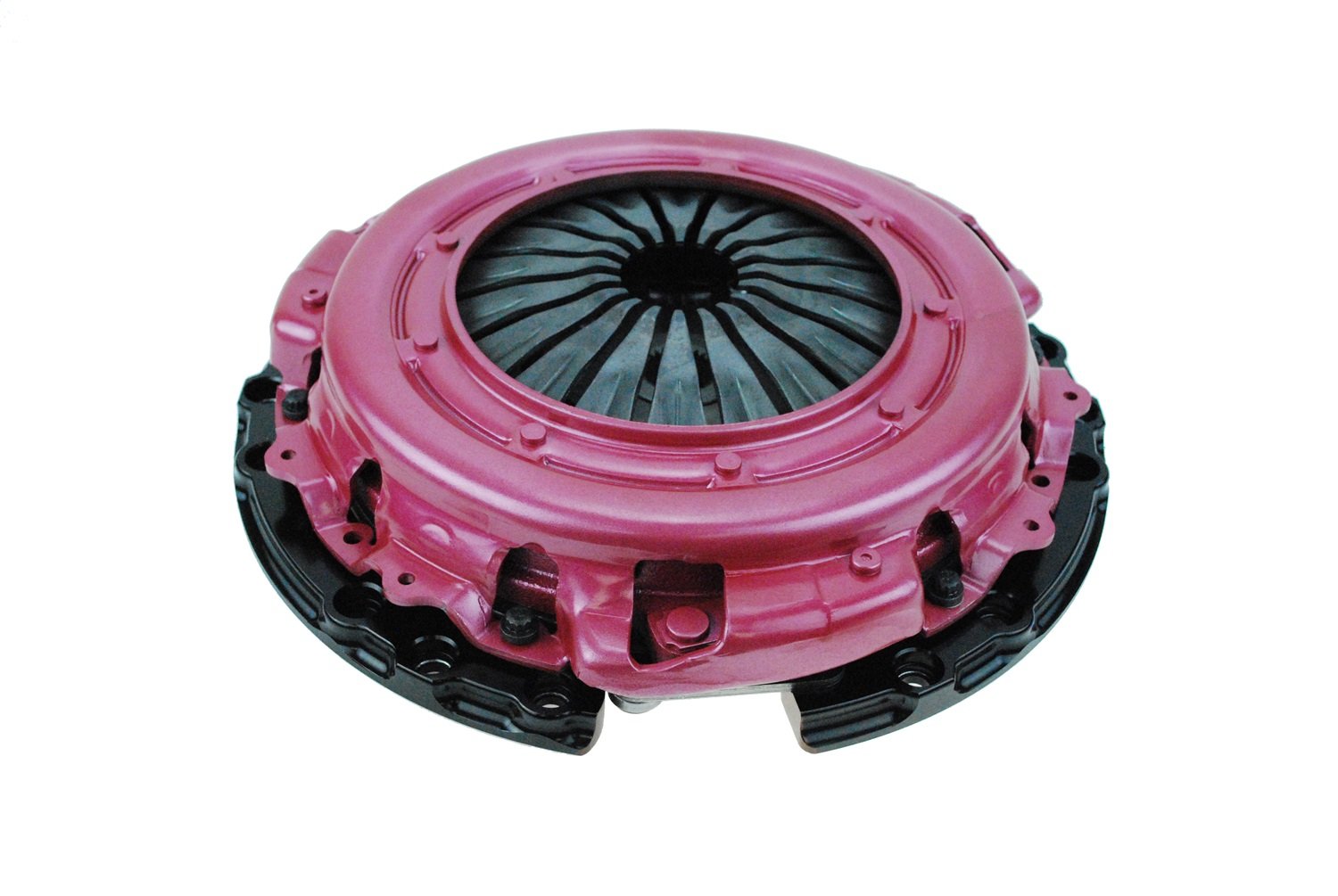

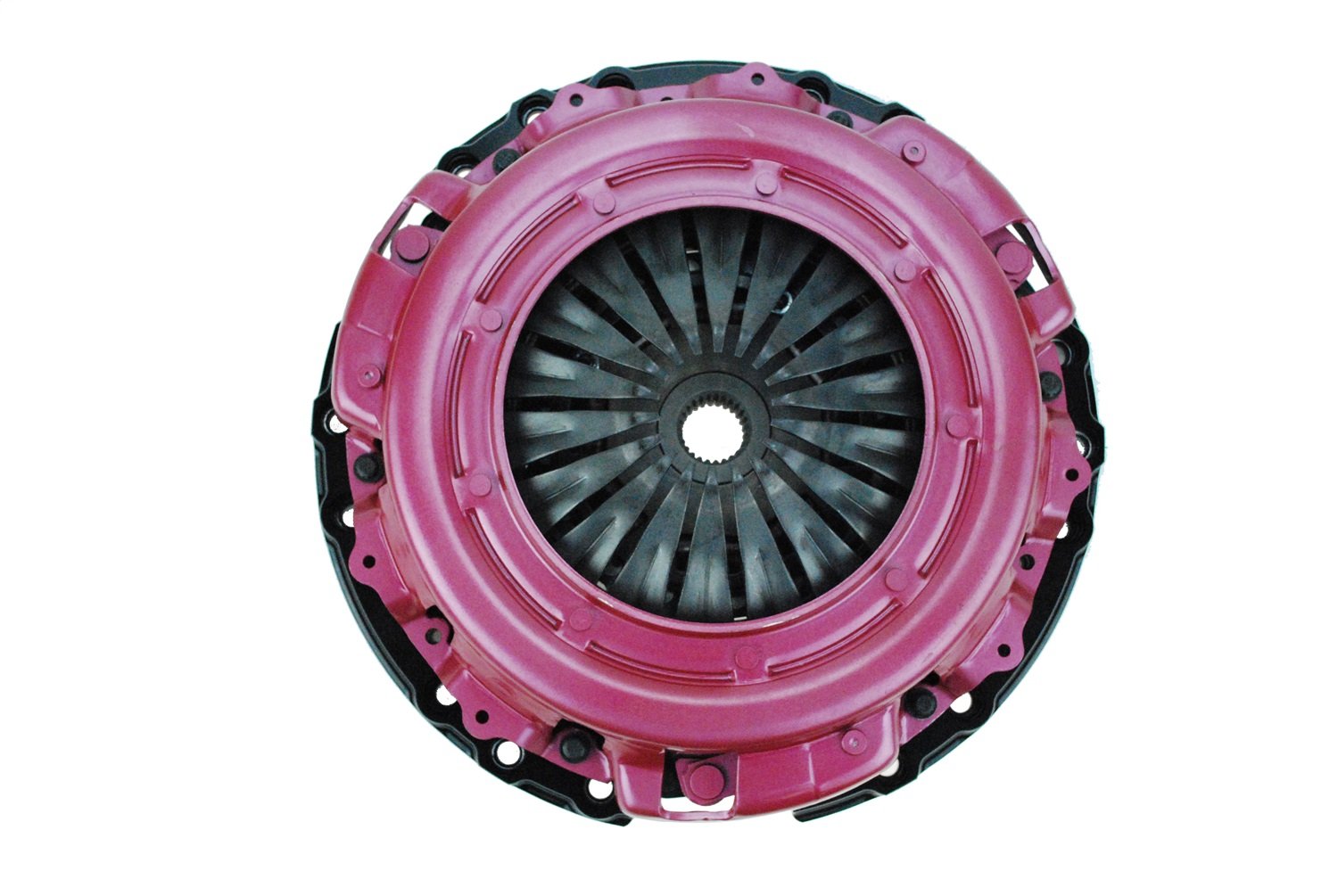

The Concept 10.5 Dual Disc is compatible with the Ram dual disc clutch system.
This system is the direct result of years of producing the Force 10.5 and Pro Street dual disc systems that feature an integral steel or aluminum flywheel.
We incorporated the best features of these clutches into a design that will adapt to most existing flat flywheels.
This creates an economical dual disc system that surpasses other clutch market designs with many improved features.
The larger diameter increases holding power, with the 10.5 pressure plate offering 2400 pounds of clamp pressure, compared to 1800 pounds in 9.5 assemblies.
The larger clutch diameter enhances heat dissipation over smaller units.
Stock pedal effort is maintained with the Concept 10.5 unit.
Precision machined billet stand segments provide a stable mounting platform without flimsy stamped steel mounting provisions.
Systems include all necessary mounting hardware to attach the clutch system to the flywheel, along with an alignment tool for proper disc centering.
Precision mounting hardware centers the clutch stands on the flywheel for proper balance and vibration-free driving.
The strap-driven floater plate system assures quiet, no-rattle operation.
Each floater plate/stand segment assembly is preassembled in-house, and the appropriate floater plate gap is set for proper disengagement every time.
A sprung hub top disc eases stress on the driveline during initial engagement.
Dual solid hub designs are aggressive and more susceptible to gear noise in the transmission.
The Concept 10.5 fits most flat flywheel bolt patterns, steel or aluminum, from early model diaphragm and lever style clutches to late model metric bolt pattern arrangements.
It is available with 300 Series organic friction material for smooth engagement on the street and holding power up to 750 HP.
