The clutch kit from ACT includes a pressure plate MaXX Xtreme, a race disc that is 6-pad and spring-centered, a release bearing, a pilot bearing, and an alignment tool.

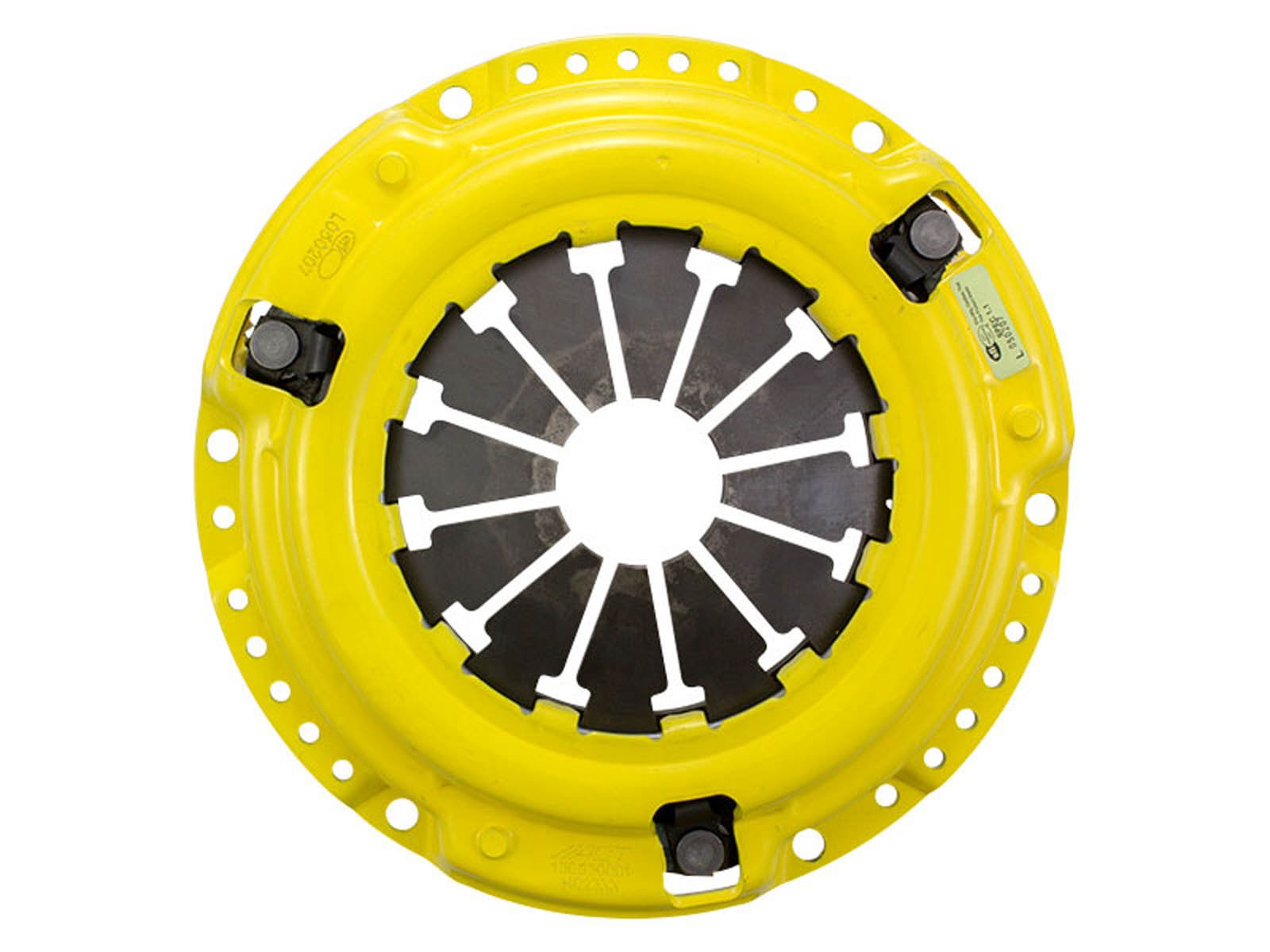

The MaXX Xtreme pressure plate allows for a clamp load increase of 70 to 150 percent over the stock unit.
ACT pressure plates utilize an exclusive diaphragm design to maximize clutch life, increase clamp load, and reduce deflection.
All diaphragms undergo an exclusive four-stage heat-treating process for performance that is unparalleled.
ACT pressure plates feature precision cover stampings for consistency and rigidity, with some reinforced to reduce flex and enhance the feel and efficiency of the pressure plate.
Manufactured from new units, ACT pressure plates are not rebuilt from worn parts and are 100 percent tested and computer balanced for smooth operation at high RPM.
The pedal feel of ACT's MaXX Xtreme pressure plates ranges from stiff to very stiff and is recommended for use with a race disc.
The 6-pad race disc from ACT features a spring-center construction that properly dampens torsional vibrations for quieter operation and resists failure even under harsh conditions.
ACT spring retainers use wraparound spring windows and thicker retainer stampings to provide support for springs, reduce stress concentrations, and increase reliability and strength.
The heavy-duty torsional dampening springs are stronger than standard springs in most cases and are provided in the best sizes and spring rates for the application.
The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat and ensure smoother engagement.
All ACT race discs are certified to meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.

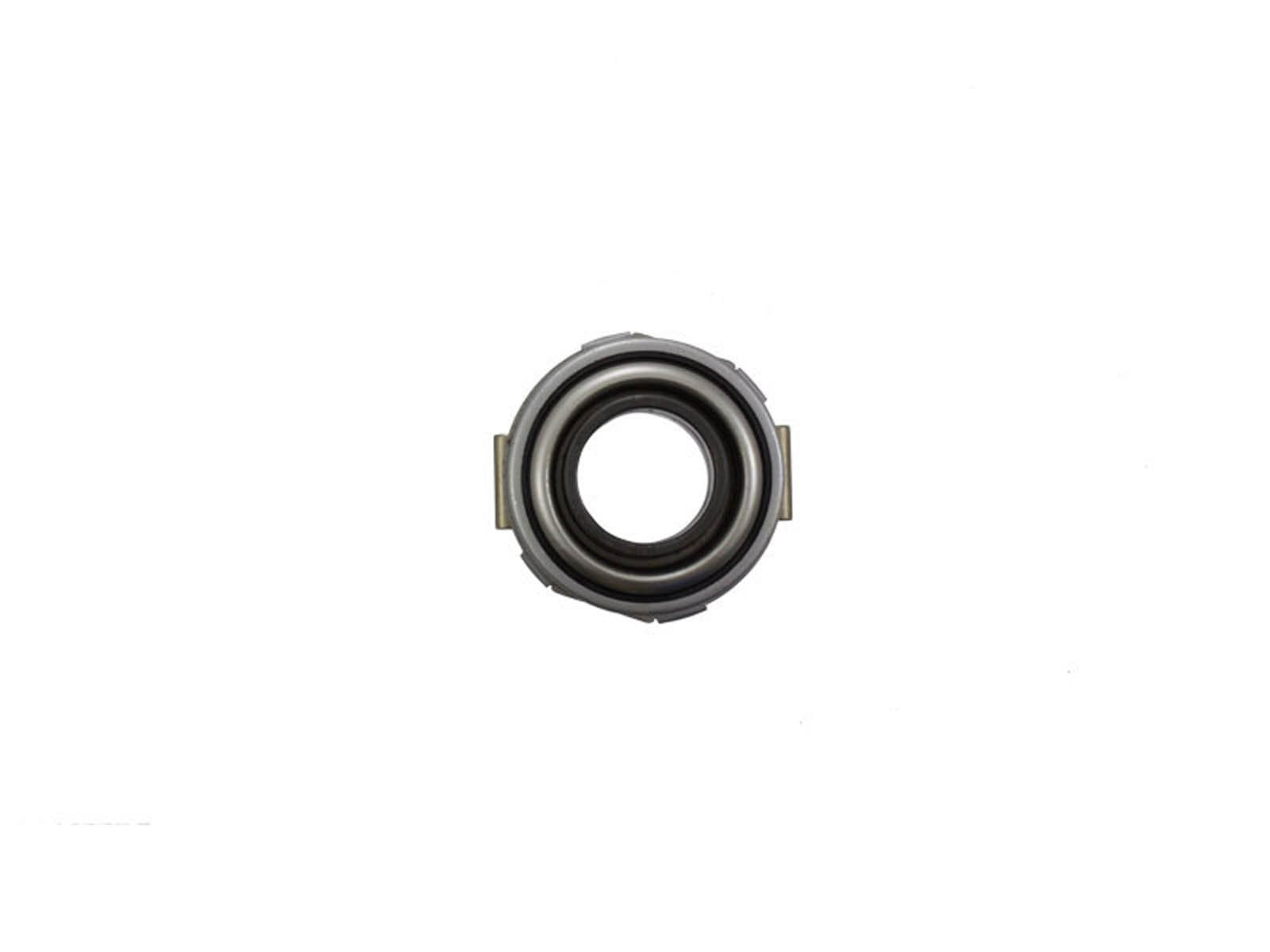

The kit is completed with a stock replacement release bearing, pilot bearing, and alignment tool.
