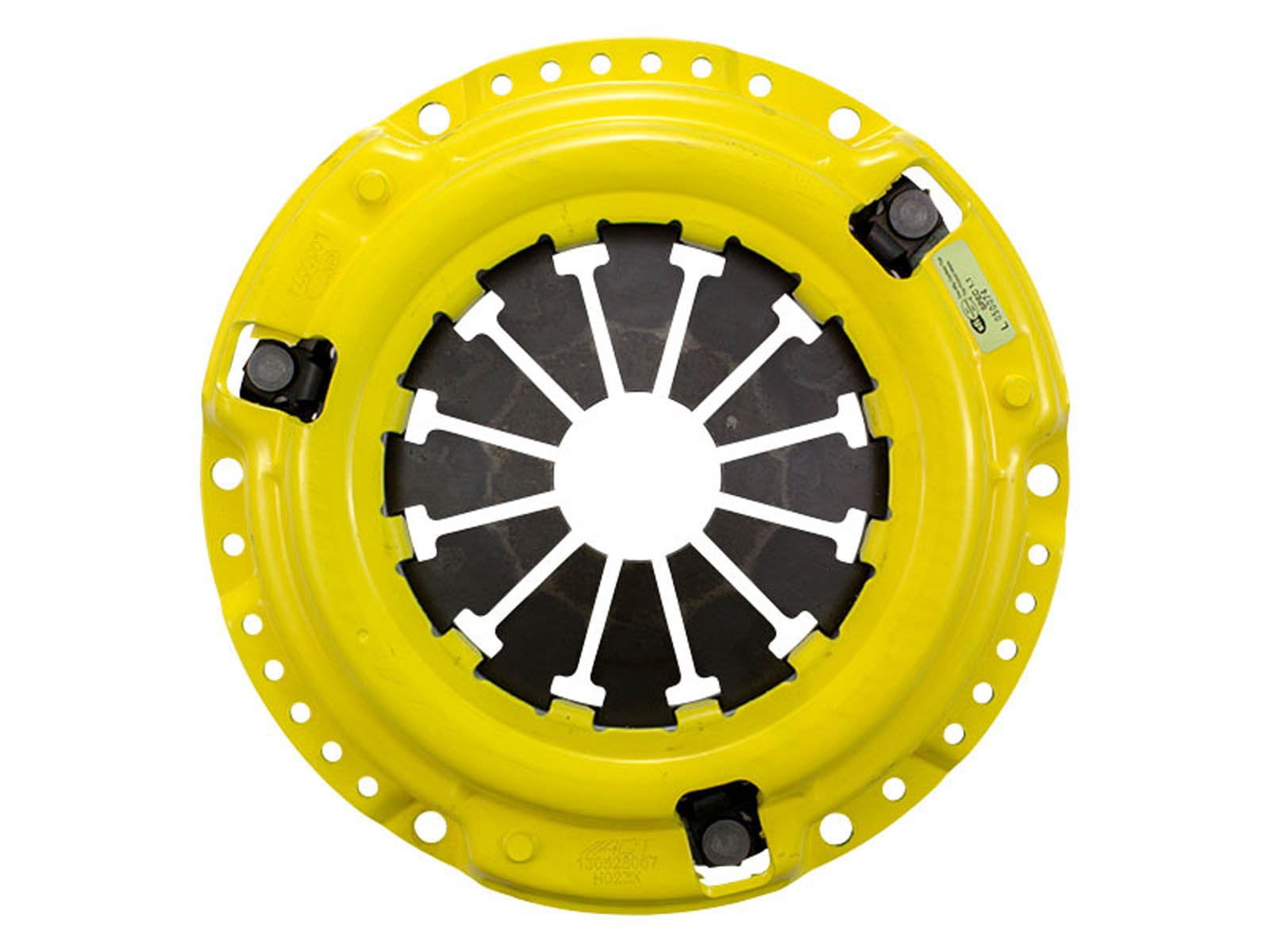

The clutch kit from ACT includes an Xtreme pressure plate, 6-pad race disc, release bearing, pilot bearing, and alignment tool.
The Xtreme pressure plate allows for a 50 to 120 percent increase in clamp load compared to the stock unit.
ACT pressure plates utilize an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life.
All diaphragms undergo an exclusive four-stage heat-treating process for performance.
ACT pressure plates feature precision cover stampings to provide rigidity and consistency, with some reinforced to reduce flex and improve efficiency and feel.
ACT pressure plates are made from new units, not rebuilt from worn parts, and are 100 percent tested and computer balanced for smooth operation at high RPM.
The Xtreme pressure plates from ACT have a moderate to stiff pedal feel.
Xtreme pressure plates are suggested for use with a street or race disc.
Xtreme pressure plates comply with SFI Specification 1.1 and are legal in all racing organizations requiring SFI certification.
The 6-pad race disc from ACT features a spring-center construction to dampen torsional vibrations for quieter operation and resist failure under harsh conditions.
ACT spring retainers use wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase reliability.
The heavy-duty torsional dampening springs are provided in optimal sizes and spring rates for the application.
The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat and ensure smoother engagement.
All ACT race discs are certified to meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit also includes a quality stock replacement release bearing, pilot bearing, and alignment tool.
