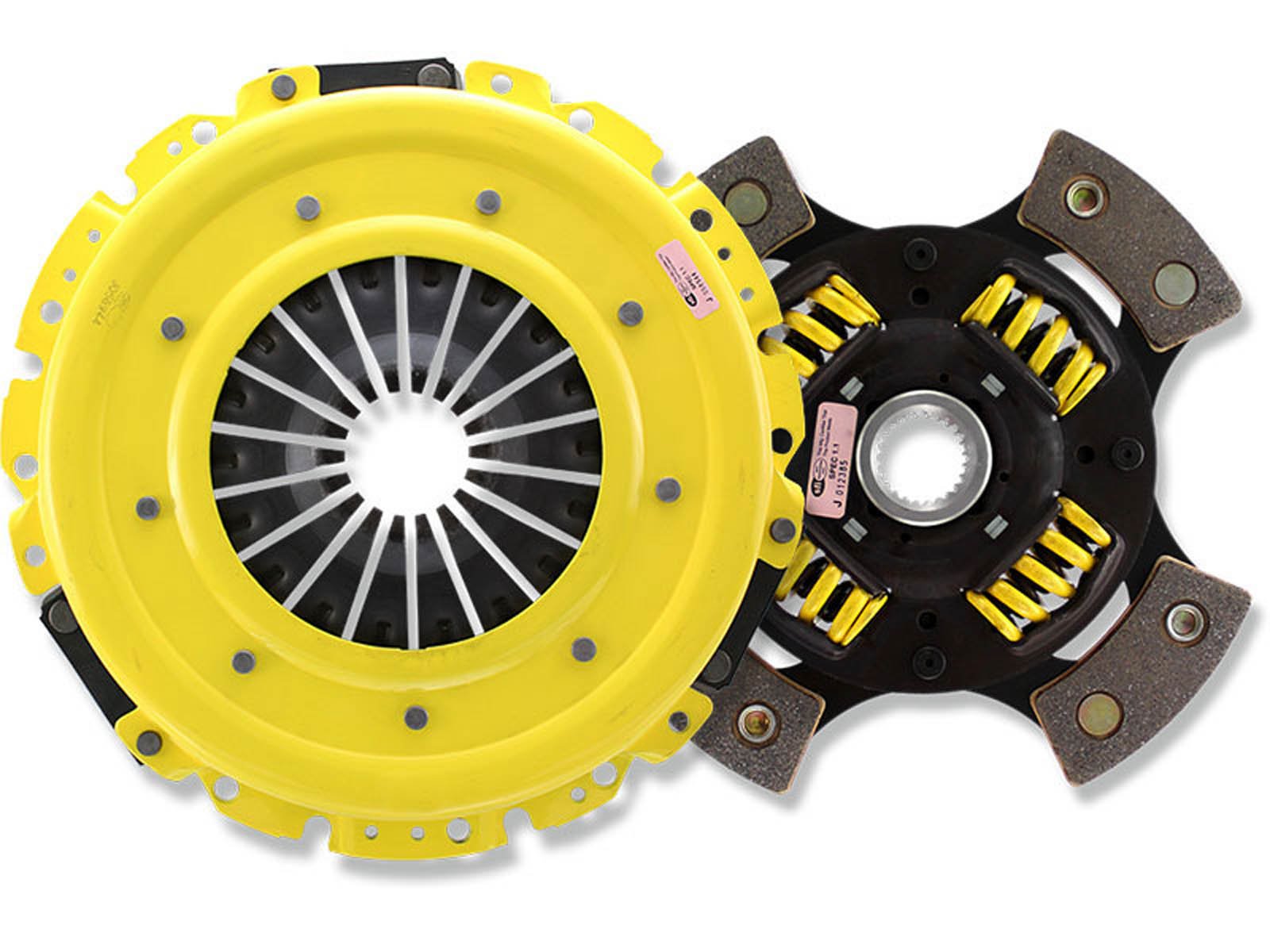

The clutch kit from ACT includes an Xtreme pressure plate, a 4-pad race disc that is spring-centered, a release bearing, a pilot bearing, and an alignment tool.

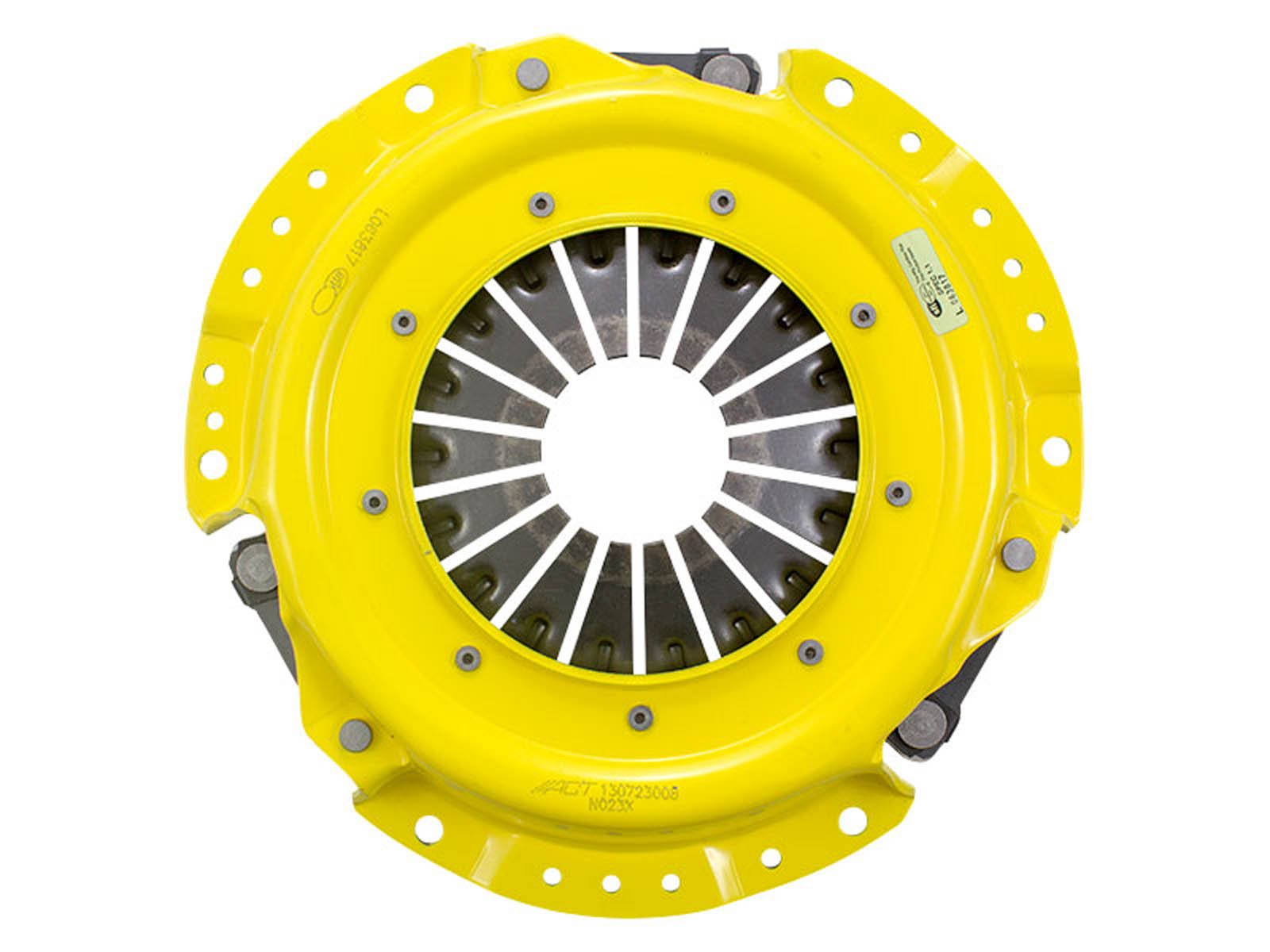

The Xtreme pressure plate allows for a 50 to 120 percent increase in clamp load compared to the stock unit.
ACT pressure plates utilize an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life.
All diaphragms undergo an exclusive four-stage heat-treating process for performance that is unparalleled.
ACT pressure plates feature precision cover stampings to provide rigidity and consistency, and some are reinforced to reduce flex and improve efficiency and the feel of the pressure plate.
The Xtreme pressure plates from ACT have a moderate to stiff pedal feel and are recommended for use with either a street or race disc.
Xtreme pressure plates meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.

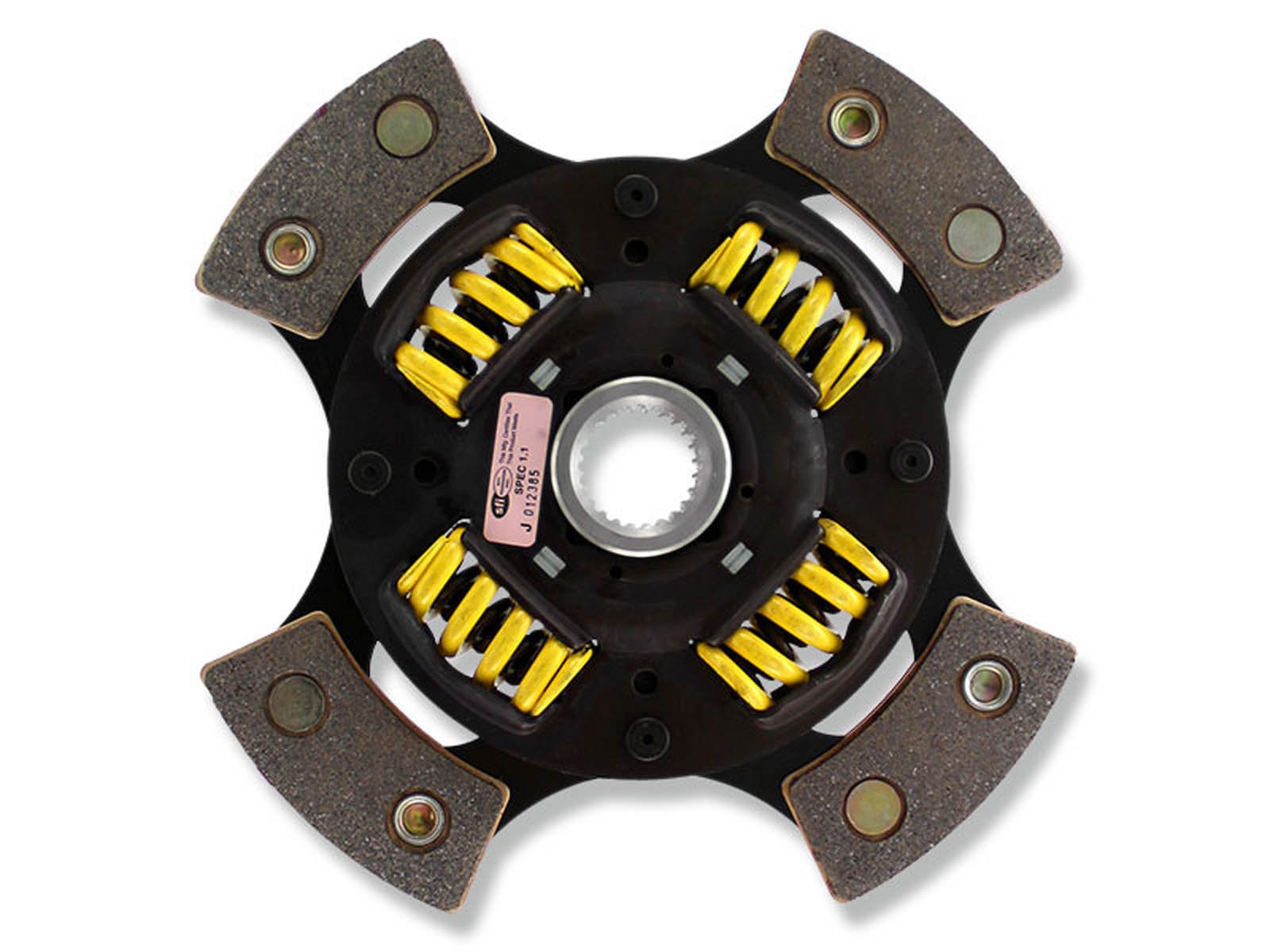

The 4-pad race disc from ACT features a spring-center construction to properly dampen torsional vibrations for quieter operation and resist failure even under harsh conditions.
ACT spring retainers use wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability.
The heavy-duty torsional dampening springs are stronger than standard springs in most cases and are provided in the best sizes and spring rates to suit the application.
With the 4-pad race disc that is spring-centered, engagement is harsher, but shifting is faster.
The 4-pad race disc from ACT is well-suited for smaller disc sizes in smaller engines.
All race discs from ACT meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit is completed with a quality stock replacement release bearing, pilot bearing, and alignment tool.
