The clutch kit from ACT includes an Xtreme pressure plate, a race disc that is 6-pad and spring-centered, a release bearing, a pilot bearing, and an alignment tool.
The Xtreme pressure plate allows for a clamp load increase of 50 to 120 percent over the stock unit.

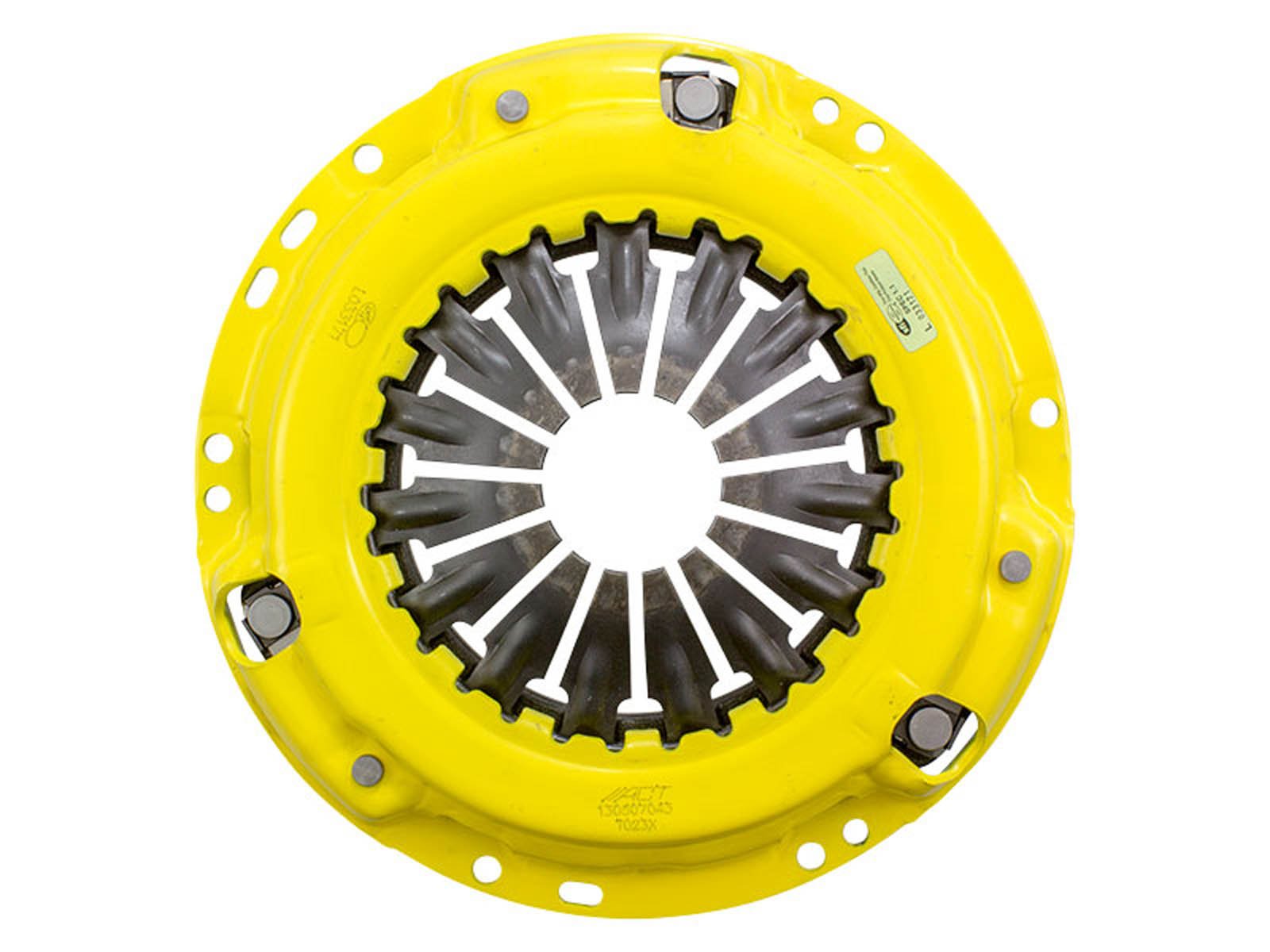

ACT pressure plates utilize an exclusive diaphragm design to maximize clutch life, reduce deflection, and increase clamp load.
All diaphragms undergo an exclusive four-stage heat-treating process for performance.
Precision cover stampings on ACT pressure plates provide rigidity and consistency, with some reinforced to reduce flex and enhance the feel of the pressure plate.
ACT pressure plates are made from new units, not rebuilt from worn parts, and are tested and computer balanced for smooth operation at high RPM.
The Xtreme pressure plates from ACT have a moderate to stiff pedal feel and are recommended for use with a race or street disc.
They meet SFI Specification 1.1 and are legal in all racing organizations requiring SFI certification.
The 6-pad race disc from ACT features a spring-center construction to dampen torsional vibrations for quieter operation and resist failure under harsh conditions.
ACT spring retainers use wraparound spring windows and thicker retainer stampings to increase strength, reliability, and provide spring support while reducing stress concentrations.
The heavy-duty torsional dampening springs are provided in optimal sizes and spring rates for the application.
The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat and ensure smoother engagement.
All ACT race discs are certified to meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit also includes a stock replacement release bearing, pilot bearing, and alignment tool.
