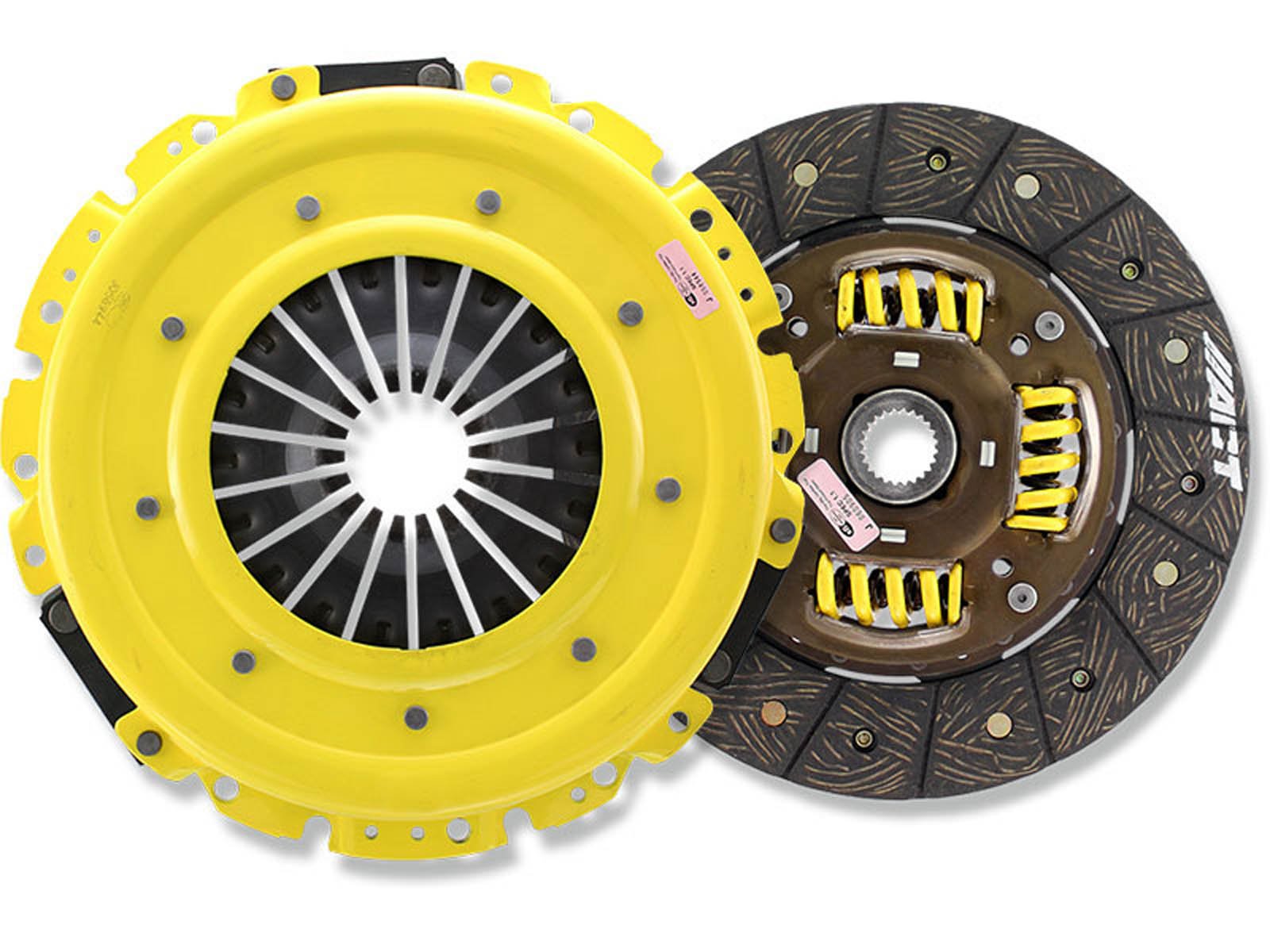

The clutch kit from ACT includes an Xtreme pressure plate, release bearing, pilot bearing, alignment tool, and Performance Street disc.
The Xtreme pressure plate allows for a clamp load increase of 50 to 120 percent over the stock unit.
Exclusive diaphragm design is used in ACT pressure plates to increase clamp load, reduce deflection, and maximize clutch life.
An exclusive four-stage heat-treating process is endured by all diaphragms for performance.
Precision cover stampings are present in ACT pressure plates to provide rigidity and consistency, with some reinforced to reduce flex, improve efficiency, and enhance the feel of the pressure plate.
New units are used to manufacture ACT pressure plates, not rebuilt from worn-out parts.
For smooth operation at high RPM, they are 100 percent tested and computer balanced.
A moderate to stiff pedal feel is characteristic of ACT's Xtreme pressure plates.
Recommended for use with a street or race disc, Xtreme pressure plates meet SFI Specification 1.1 and are legal in all racing organizations requiring SFI certification.

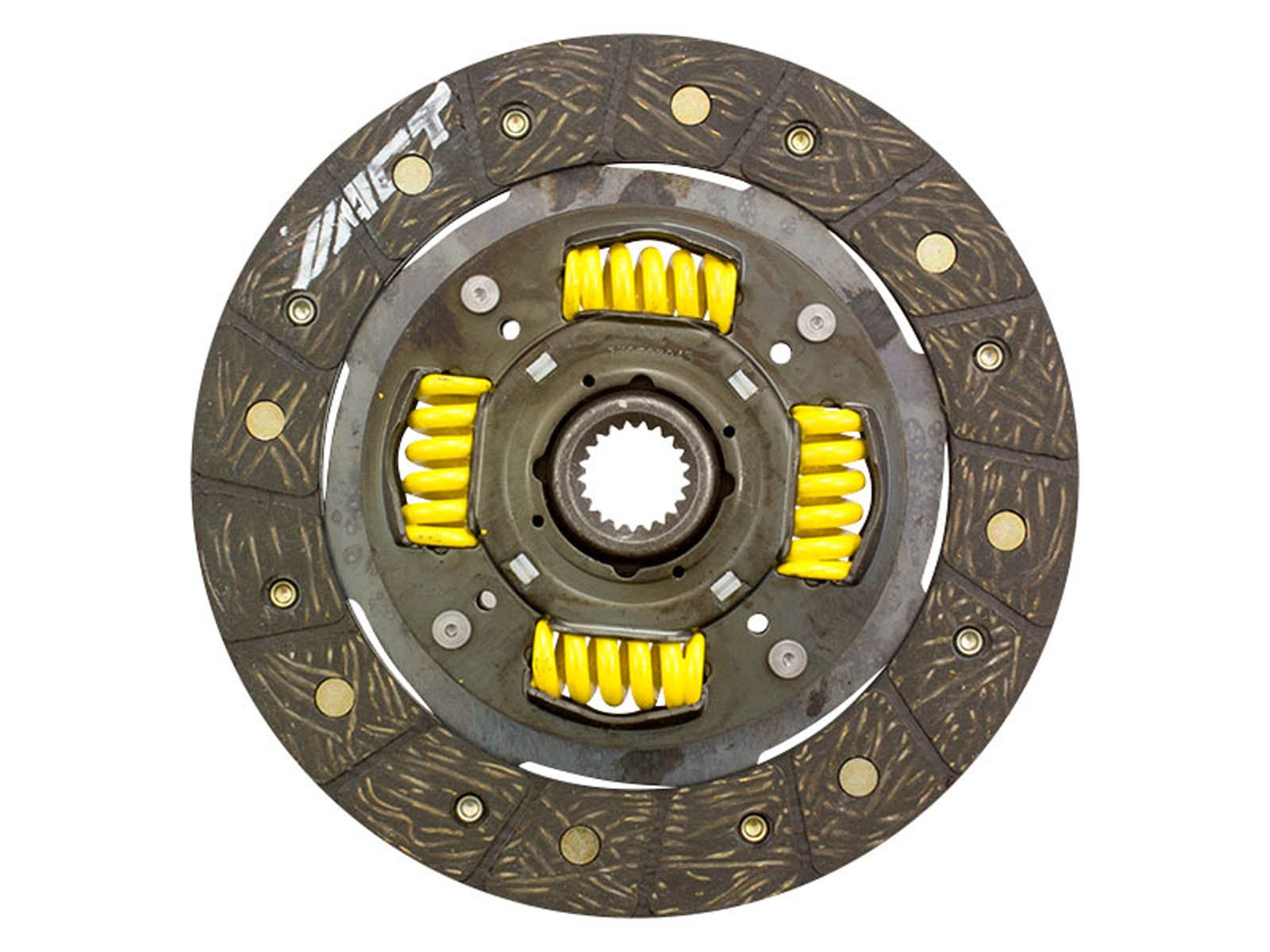

Most popular applications have ACT's Performance Street discs available.
Modified with reduced marcel for faster shift action, these discs complement ACT pressure plates.
Higher copper content friction lining is present in Performance Street discs for heat tolerance, along with steel-backed lining for greater burst strength and durability.
Top-grade rivets are used to securely fasten the part together.
Maximum strength is ensured by carefully selecting the rivet design and materials.
Similar to factory clutch discs, ACT spring-centered assemblies use bushings and cone springs.
This creates frictional dampening, which reduces noise and improves clutch life.
All Performance Street discs are certified as meeting SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit is completed with a release bearing, pilot bearing, and alignment tool.
