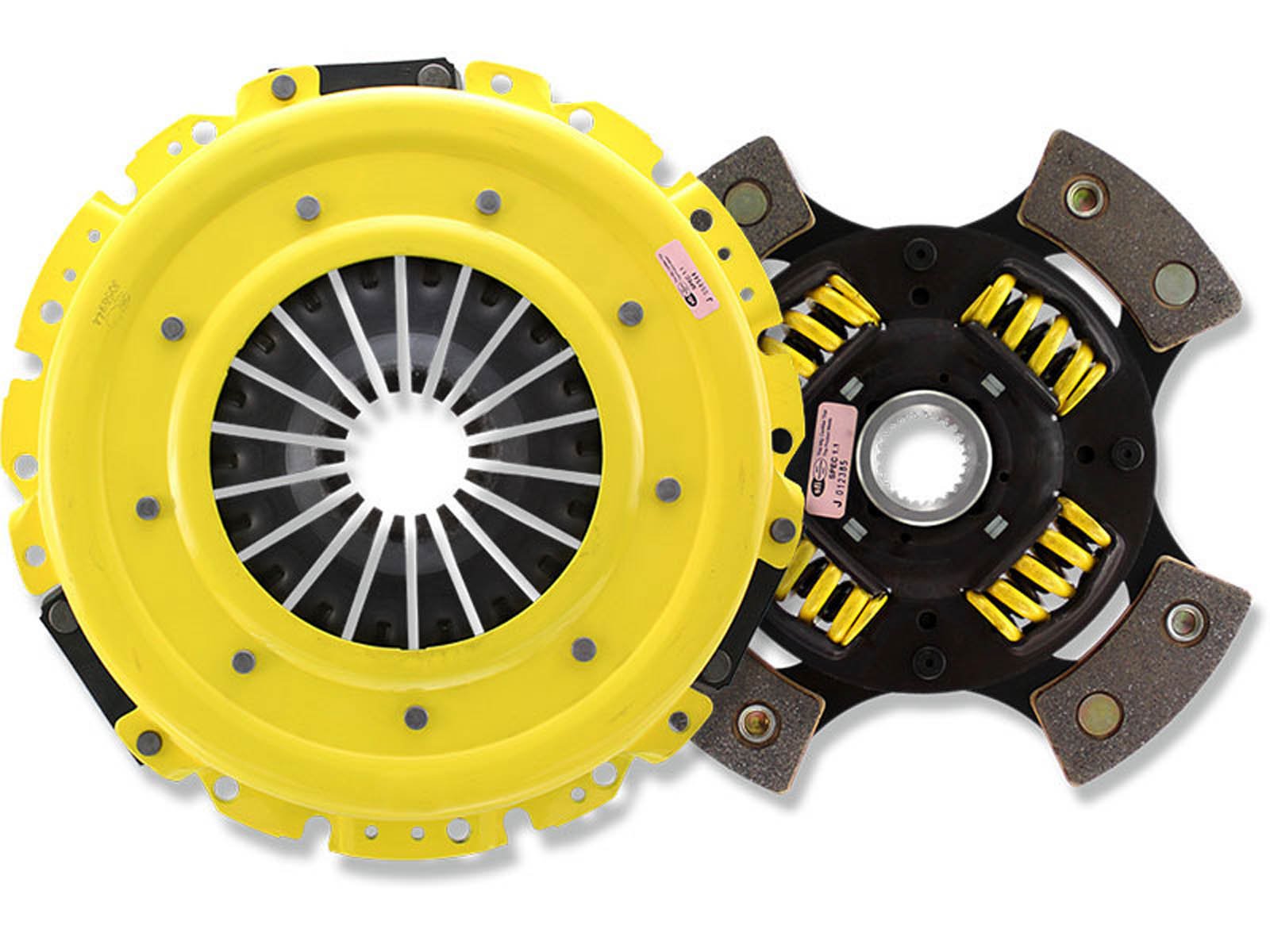

The clutch kit includes an Xtreme pressure plate, release bearing, pilot bearing, alignment tool, and a 4-pad, spring-centered race disc.

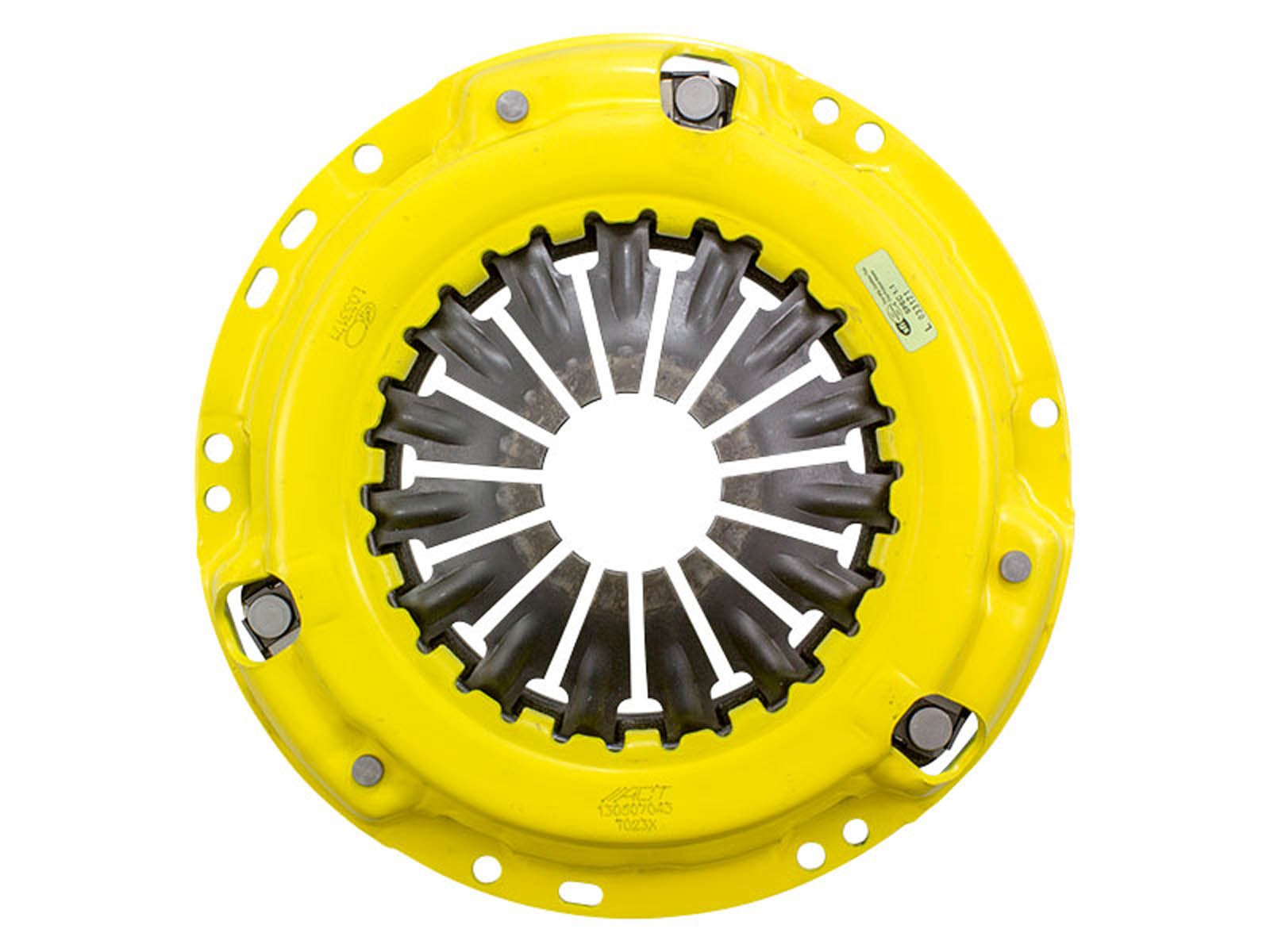

The Xtreme pressure plate allows for a 50 to 120 percent increase in clamp load over the stock unit.
Exclusive diaphragm design in ACT pressure plates increases clamp load, reduces deflection, and maximizes clutch life.
An exclusive four-stage heat-treating process endures for unparalleled performance.
Precision cover stampings in ACT pressure plates provide rigidity and consistency, with some reinforced to reduce flex and improve efficiency and feel.
Xtreme pressure plates from ACT have a moderate to stiff pedal feel and are recommended for use with a street or race disc.
Meeting SFI Specification 1.1, Xtreme pressure plates are legal in all racing organizations requiring SFI certification.

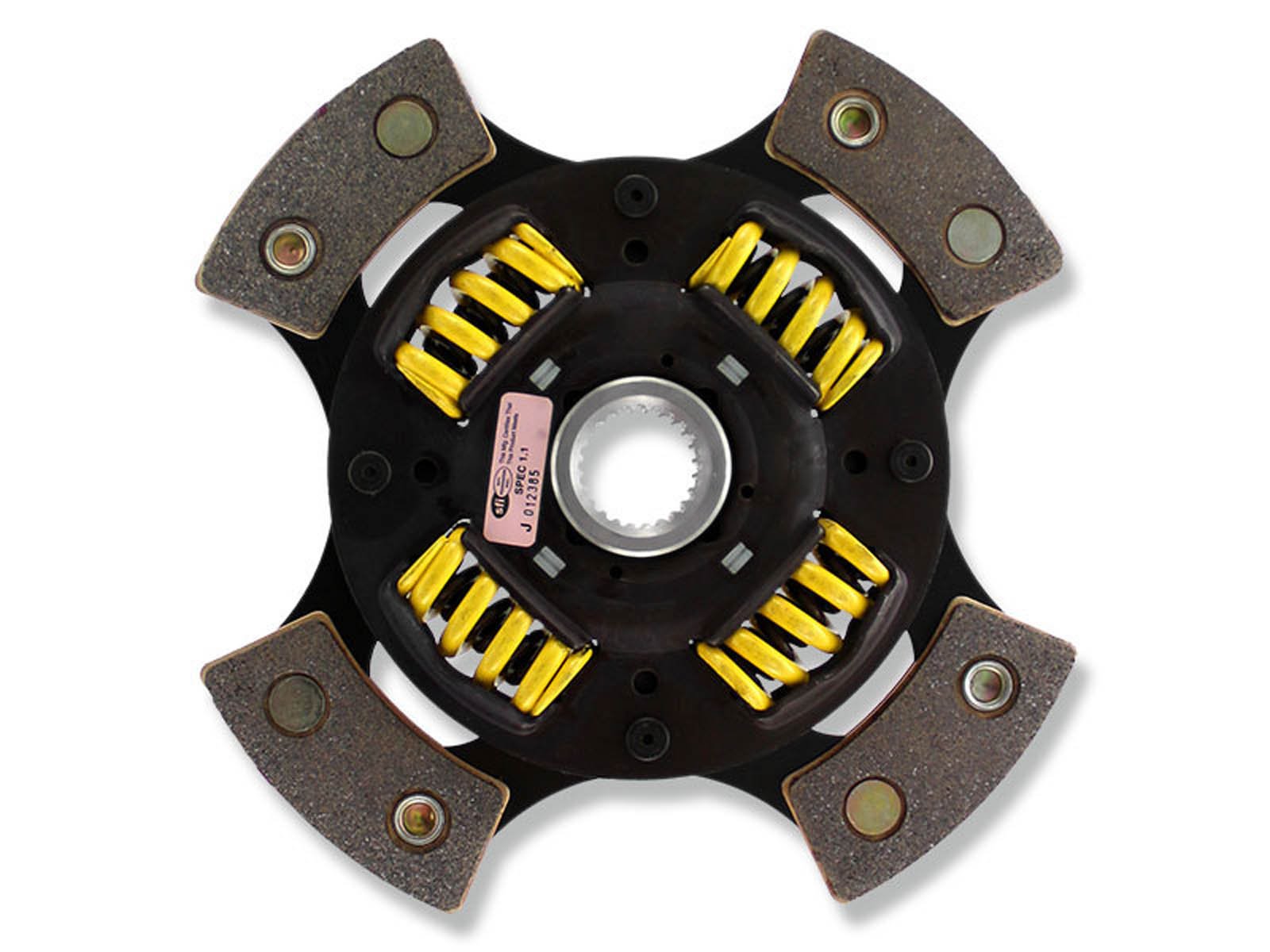

The 4-pad, spring-centered race disc features a spring-center construction to properly dampen torsional vibrations for quieter operation and resist failure even under harsh conditions.
Wraparound spring windows and thicker retainer stampings in ACT spring retainers provide spring support, reduce stress concentrations, and increase strength and reliability.
The heavy-duty torsional dampening springs are stronger than standard springs in most cases and are provided in the best sizes and spring rates to suit the application.
Engagement with the 4-pad, spring-centered race disc is harsher, but shifting is faster.
Well-suited for smaller disc sizes in smaller engines, all ACT race discs meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit is completed with a quality stock replacement release bearing, pilot bearing, and alignment tool.
