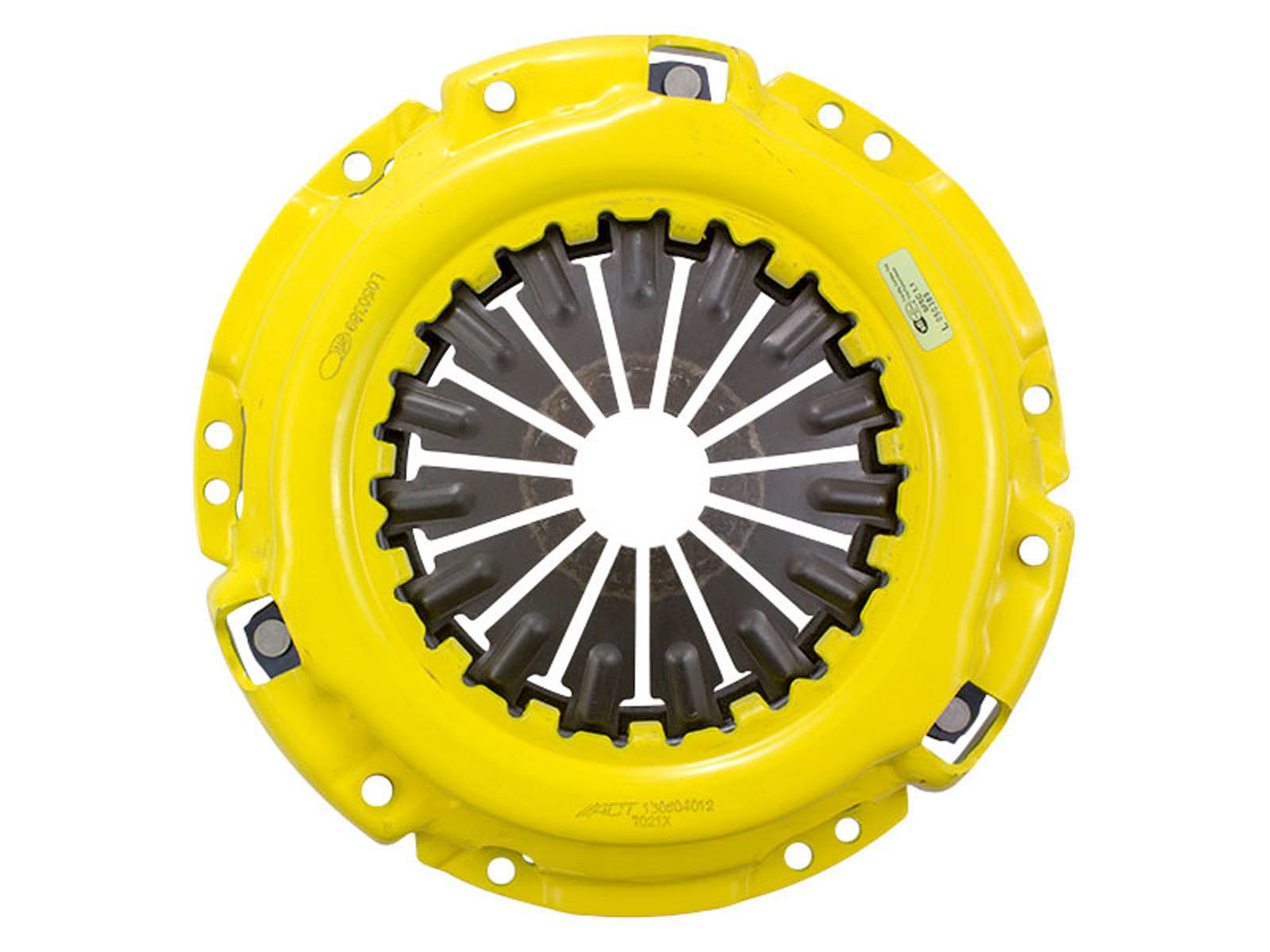

The clutch kit from ACT includes an Xtreme pressure plate, a rigid race disc with 4 pads, a release bearing, a pilot bearing, and an alignment tool.
The Xtreme pressure plate allows for a clamp load increase of 50 to 120 percent over the stock unit.
ACT pressure plates utilize an exclusive diaphragm design to maximize clutch life, reduce deflection, and increase clamp load.
Each diaphragm undergoes a four-stage heat-treating process for performance.
Precision cover stampings on ACT pressure plates provide rigidity and consistency, with some reinforced to reduce flex and enhance the feel of the pressure plate.
Manufactured from new units, ACT pressure plates are not rebuilt from worn parts and are 100 percent tested and computer balanced for smooth operation at high RPM.
The Xtreme pressure plates from ACT have a moderate to stiff pedal feel and are recommended for use with either a street or race disc.
Meeting SFI Specification 1.1, Xtreme pressure plates are legal in all racing organizations requiring SFI certification.
The 4-pad rigid race discs from ACT are constructed with high-quality ceramic friction materials, with all friction pads measured, sorted, and matched before assembly to ensure uniform thickness.
The heat-treated chrome-moly hub provides strength and durability, while the lightweight, rigid design allows for quicker shifts and smooth, trouble-free service.
Engagement with the 4-pad rigid race disc is harsher, but shifting is faster.
This disc is not recommended for street use.
All ACT race discs are certified to meet SFI Specification 1.1 and are legal in all racing organizations that require SFI certification.
The kit is completed with a stock replacement release bearing, pilot bearing, and alignment tool.
