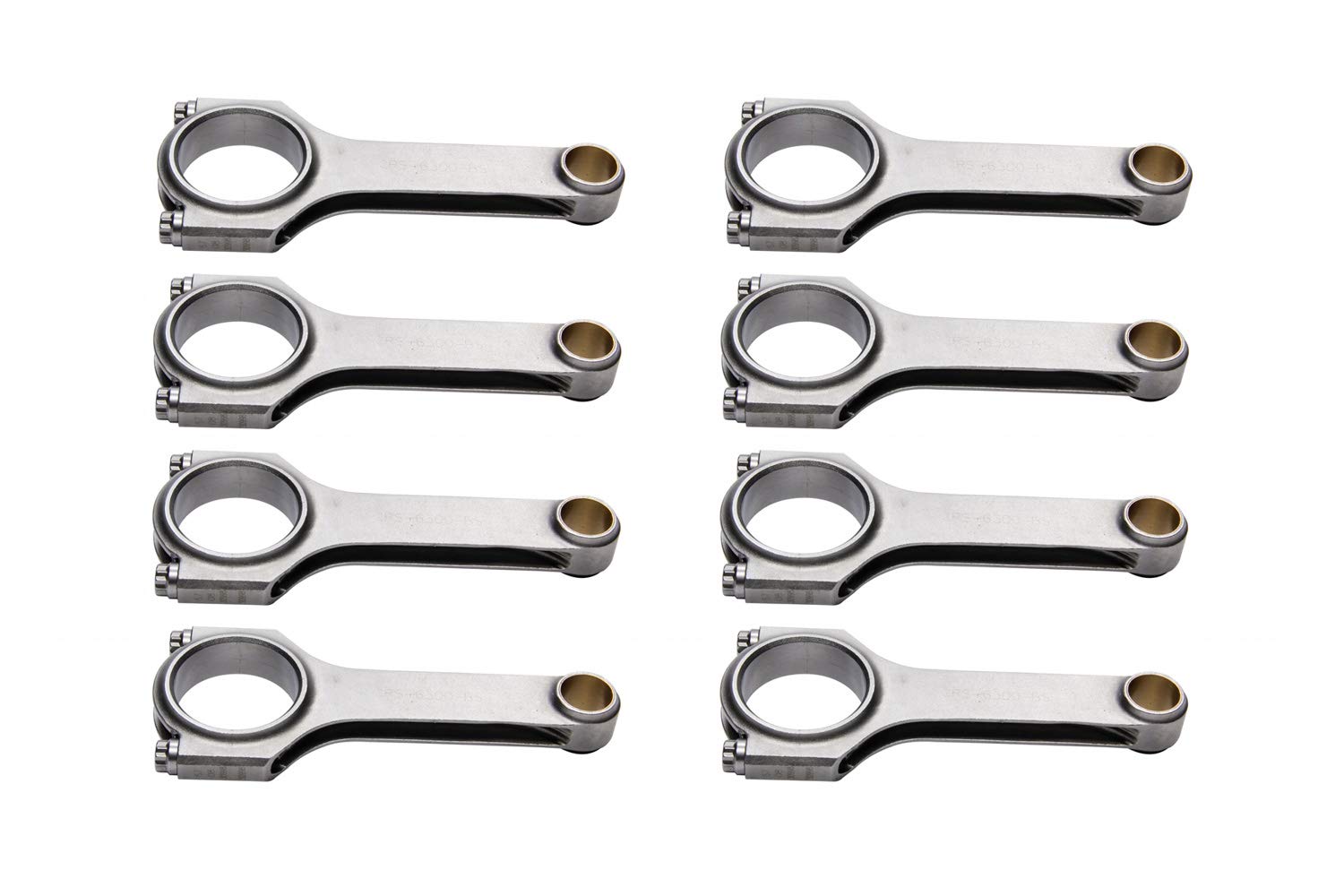

Eagle ESP H-Beam connecting rods upgrade engine horsepower.
Their construction of 2-piece, forged, vacuum-degassed, 4340-certified steel provides outstanding strength while weighing much less than stock rods.
Each rod is multi-stage heat-treated, x-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal.
The rods feature precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and striker models that allow additional cam-to-rod clearance for large stroke combinations.
Standard equipment includes 190,000 PSI rated 7/16 ARP 8740 (750 horsepower rating) and 230,000 PSI rated, 7/16 ARP 2000 rod bolts (1200 horsepower rating) or 265,000 PSI rated 7/16 ARP l-19 bolts (1500 horsepower rating) as upgrades.
Instructions and rod bolt lubrication are included in each set.
