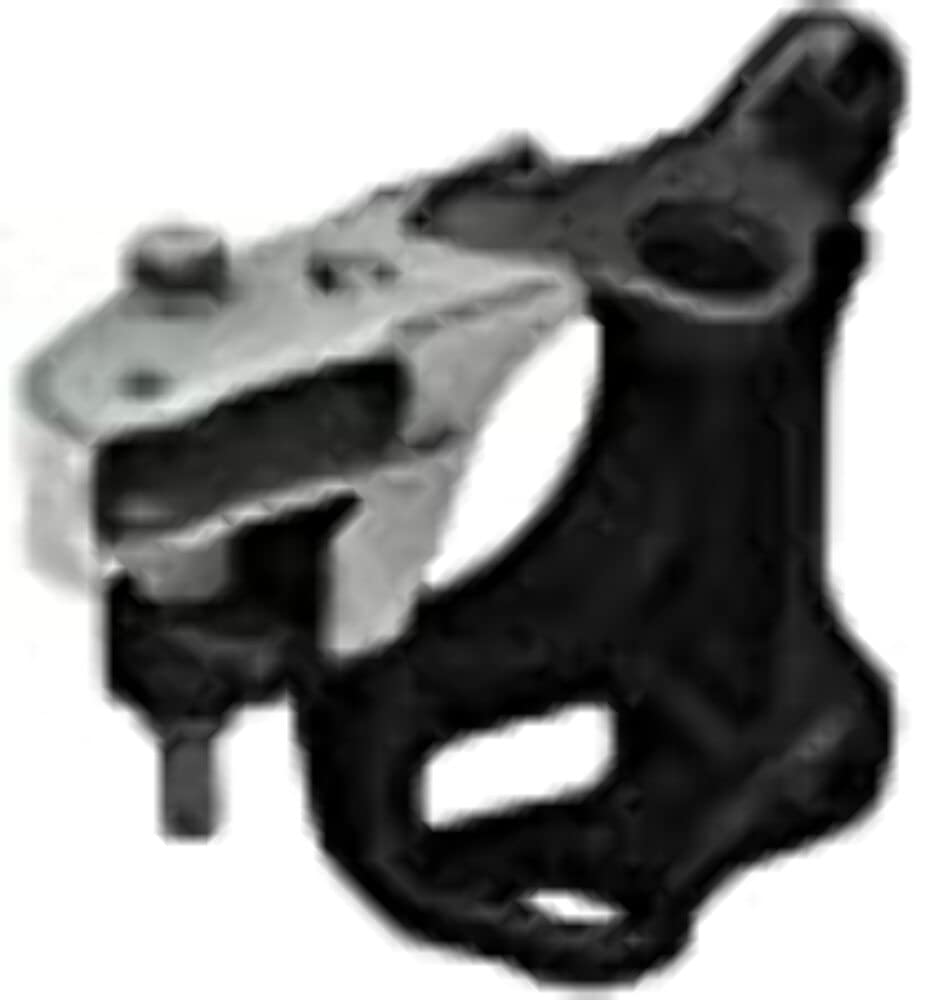

Full Hydro Weld-On High Steer Arms - 05 plus Super Duty.
Weld on arms affordable for the 05 plus Super Duty Knuckles to help eliminate those swap steering issues.
For the best steering geometry and clearances, fully fabricated.
Best alignment of tie rod and hydraulic steering ram is engineered for maximum strength and longevity.
Includes knuckle bolt Kits (8 inch long bolt, sleeve and stover locking nut) and all internal gusseting.
The driver side knuckle hole will need to be drilled out to 3/4 inch.
Ground down will need to be the casting remnants on the front of knuckle.
Knuckles from 05-10 are slightly different than 11 plus, so we've etched a trim line on the laser cut part that will need to be trimmed off.
Minor fabrication and welding are required.
This kit is recommended to be installed only by a competent welder.
Features: Sold as Each.
Best used with our new Super Duty 60 Full Hydro Ram Mount.
LINK Included Knuckle Bolts and tapered spacers for tight fit and increased strength.
Welds directly to factory knuckles (2005 and up Super Duty).
3/4 inch bolt holes for uncompromising steering strength.
Precision Laser Cut from 1/4 inch steel and CNC Bent for accurate fitment.
Minimal modification to OEM knuckle needed.
Rod end bolts not included.
