One of the top selling recreational marine Hydraulic Steering Systems for boats powered by Outboard engines from the leader in marine steering technology, SeaStar Solutions (formerly Teleflex Marine).

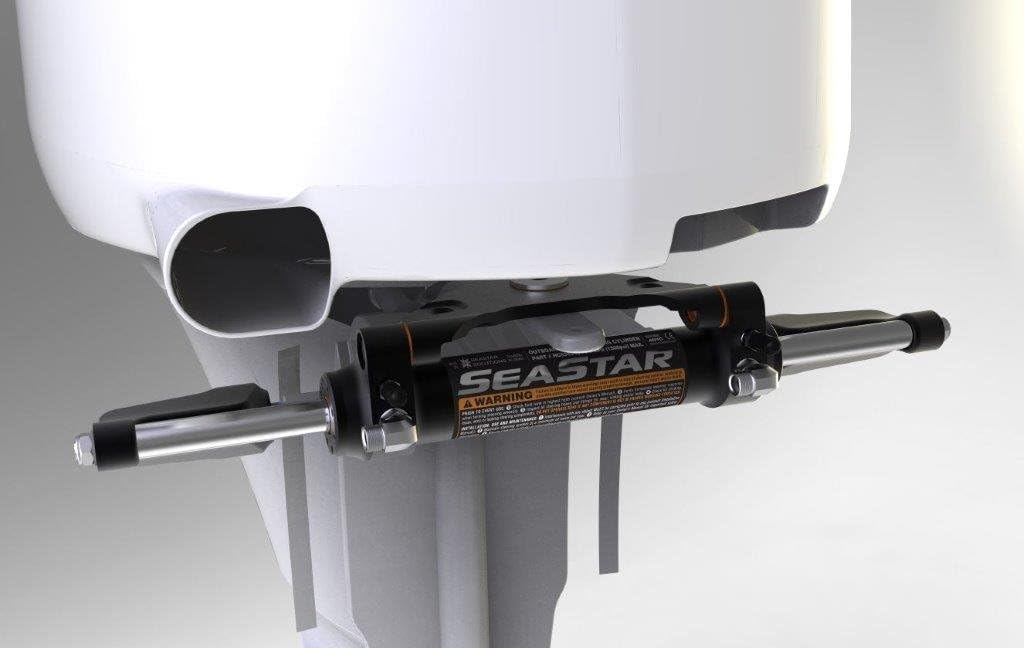

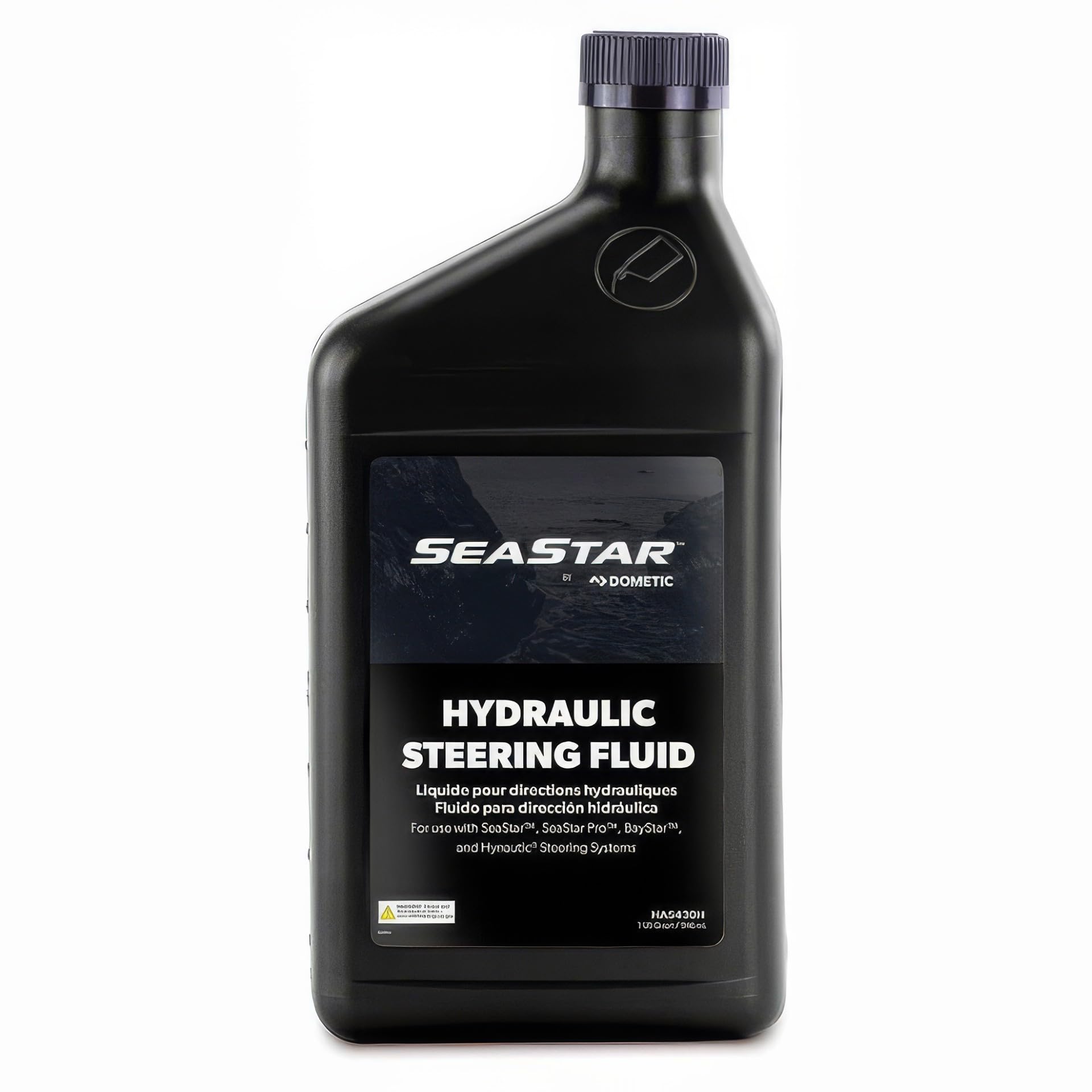

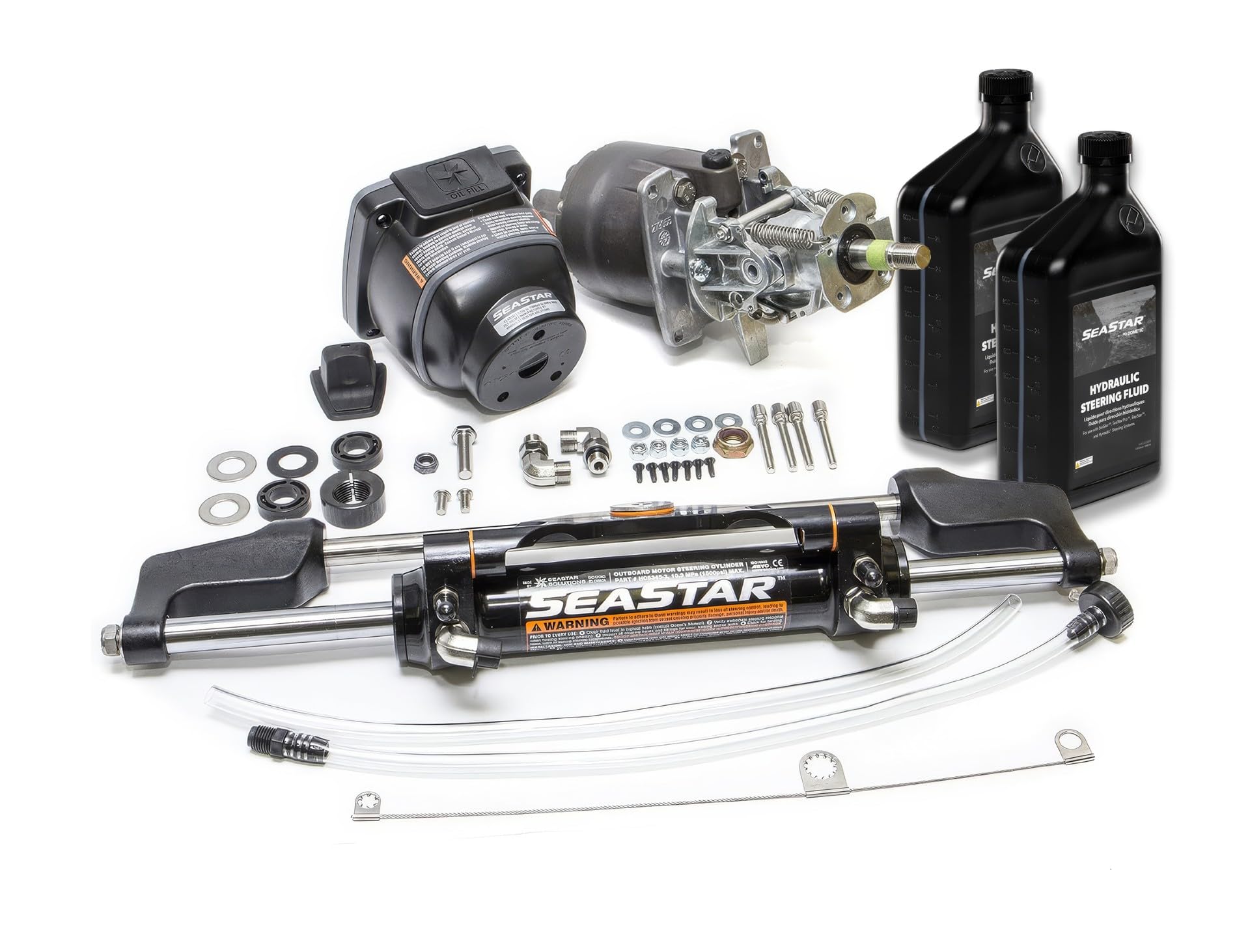

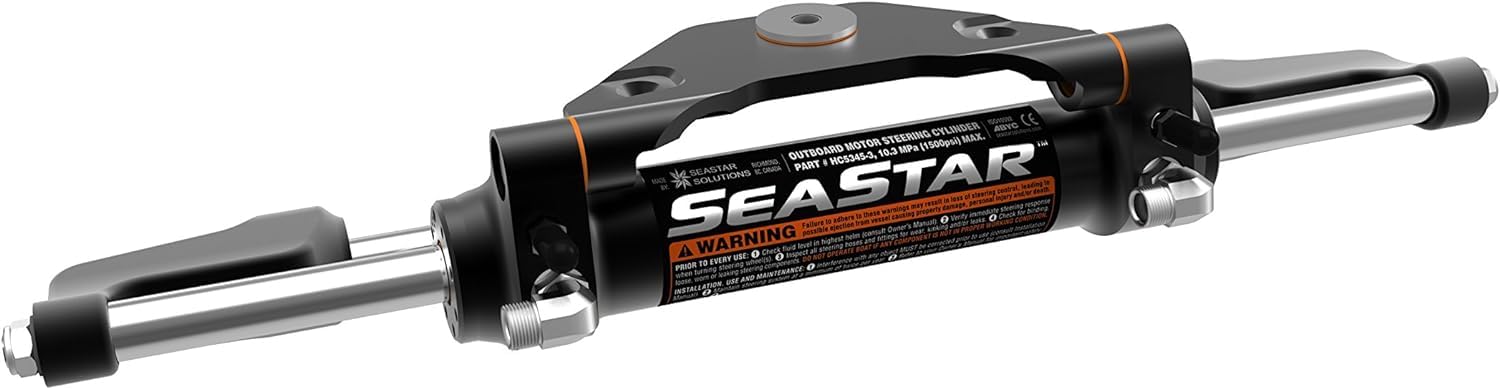

The Steering System HK6400TC-3 includes HC5345-3 Outboard Steering Cylinder with Positionable Stainless Steel O-Ring (ORB) Fittings for easy Hydraulic Hose Routing (hoses sold separately), HH6541-3 Helm with updated ORB Fittings and Anodized Protection against saltwater, two Quarts of SeaStar HA5430 proprietary Hydraulic Steering Fluid for maximum performance and protection along with Installation Instructions.
Components in the HK6400TC-3 meet ABYC and NMMA certification standards and are designed and manufactured in North America.
This Steering Kit is ideal for cruisers, runabouts, center console boats, offshore fishing boats and many more.

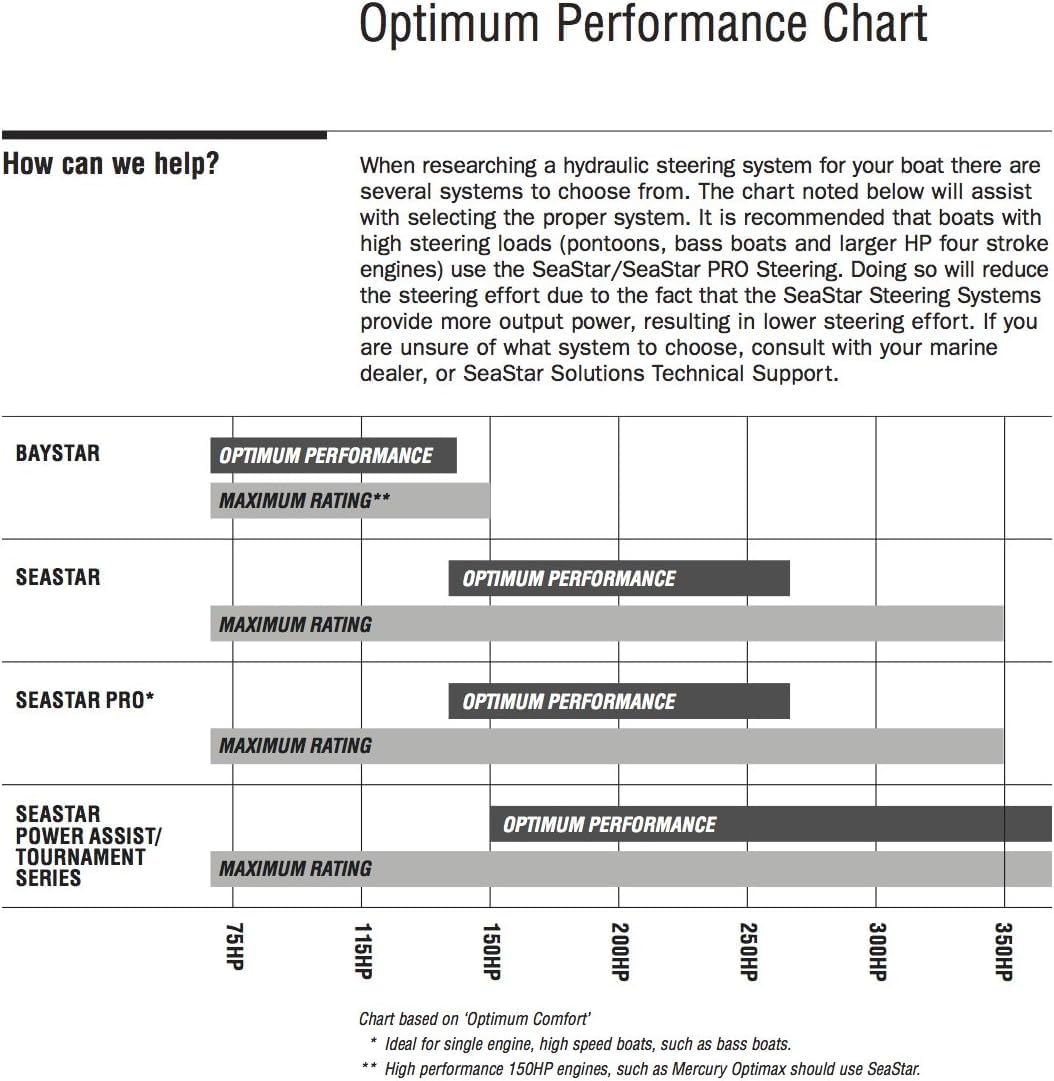

It is suitable for single and dual non-power-assisted outboard engines up to 350 HP (700 combined HP for counter-rotating dual engines) that have ABYC Standard Engine Tilt Tube.
It is also suitable for speeds up to 60 MPH and dual station use (with purchase of extra helm, hose fittings sold separately).
Do NOT attempt to install an NPT pipe fitting into a -3 helm hose fitting port.
Doing so will lead to irreparable damage to the helm.
Upgrade Options to Consider: Stainless Steel Bulkhead Hose Fittings SeaStar Power Assisted Steering.
SeaStar Products are backed by a two-year recreational user warranty against manufacturing defects.
SeaStar Hydraulic Steering Systems are tested and certified using only SeaStar Hydraulic Fluid and SeaStar Hydraulic Hoses.
Use of non-certified products to install SeaStar products may VOID warranty and could cause loss of steering control.
