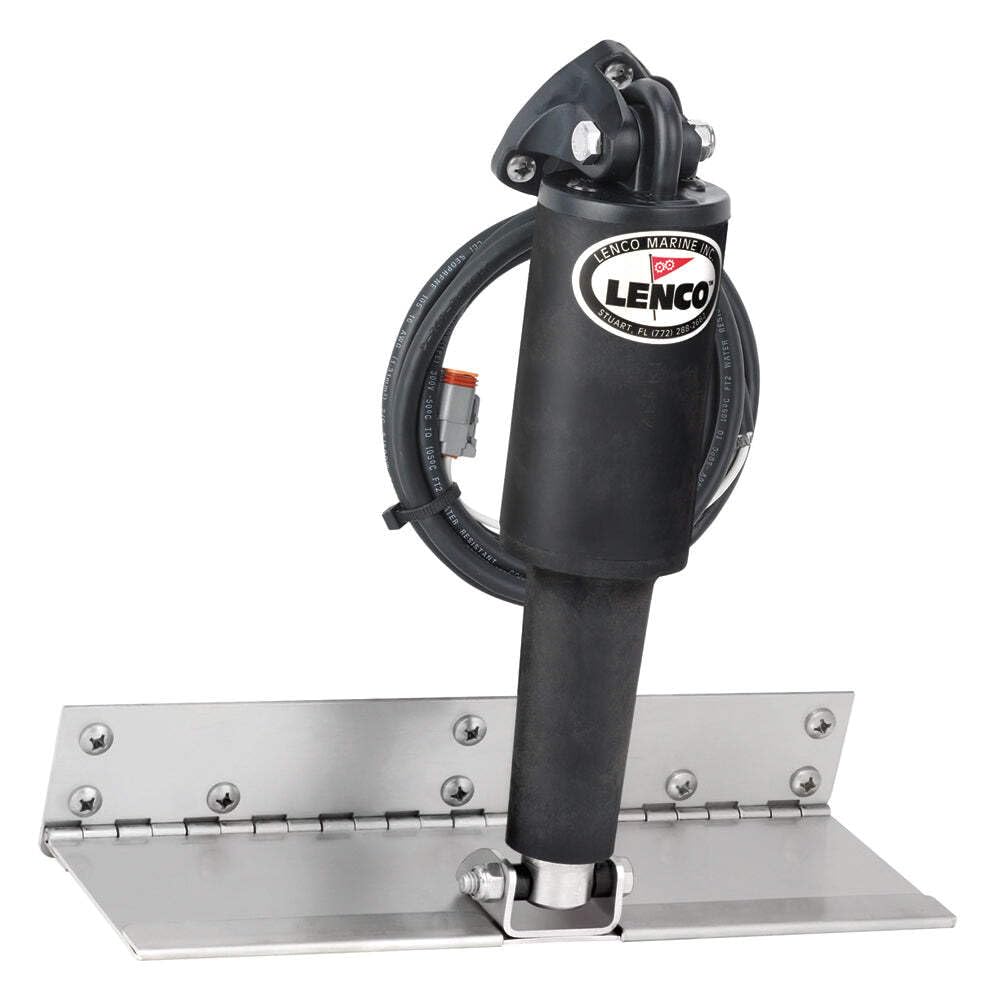

Limited Space Trim Tab Kit 4" x 12" w/o Switch Kit -12V - Standard Finish - Short Actuator.
Lenco Electric Limited Space Trim Tab Kits are ideal for boats with a swim platform and/or ladder.
They can be fitted to transoms that have a limited mounting area.
The blades are 12 gauge - 304 SS with the front of the blade folded to provide a smooth trailing edge and a 1/8" diameter hinge pin.
Fast response electric actuators allow for precise control.
All units have Plug and Play connections and are fully submersible.
Kit Contents: 2 each of 12-gauge 304 stainless steel trim tab blades, 2 each of #15057-001 XD actuator with 6' lead and Deutsch plugs, 2 each of #30133-103 20' actuator extension wiring harnesses, 2 each of #15085-001 (116) upper mounting bracket with gland seal, 1 each of the Lenco owner’s / installation manual, and all necessary stainless steel mounting hardware.
Specifications: Suggested Boat Length: 14' to 25', Length of Tab: 4", Width of Tab: 12", Minimum Transom Height: 13", Blades: 12 Gauge Stainless Steel, Finish: Standard, Switch Kit: Sold Separately, Class: Fuel Efficient, Compliance: CE Certified, Compatibility: Any Boat, Actuators: 12-volt.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm.
For more information go to P65Warnings.ca.gov.
Specifications: Actuator Type: Electro-Mechanical, Construction: Stainless Steel, Box Dimensions: 4"H x 13"W x 14"L WT: 14 lbs, UPC: 874847004749.
