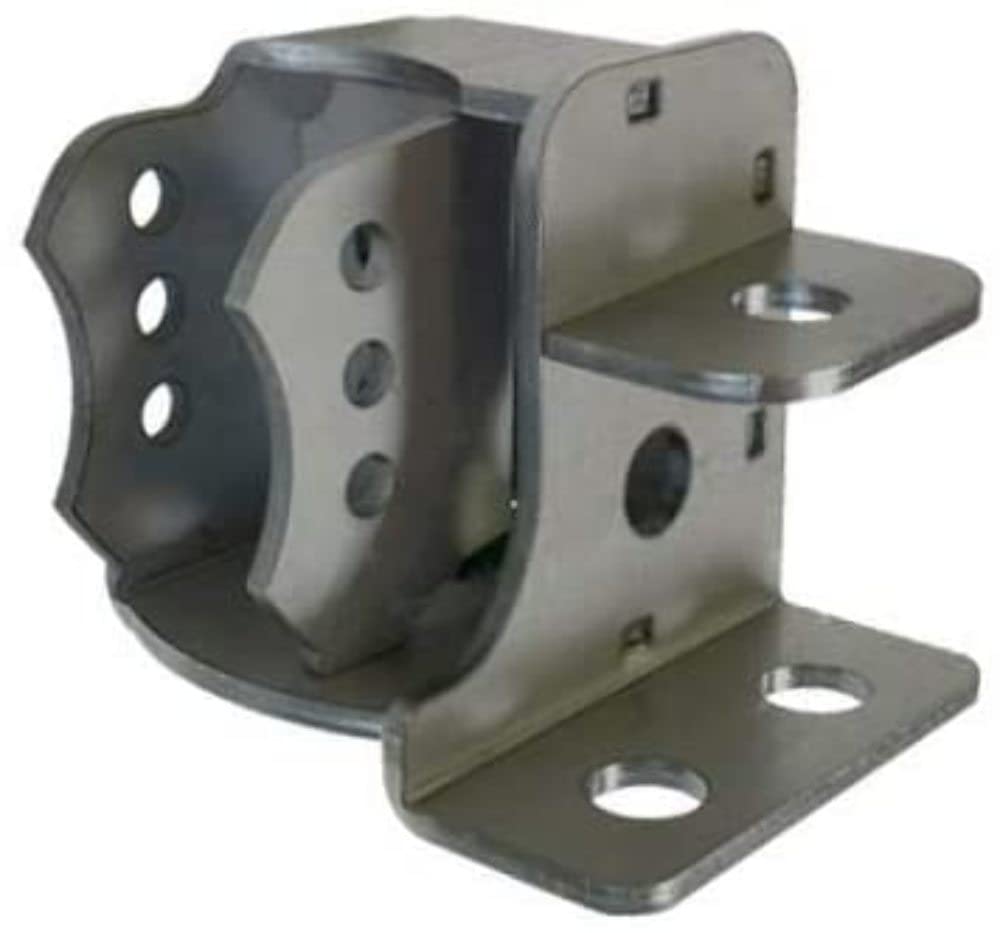

Adjustable Inner Frame Bracket (single).
The ideal complement to your Spring Over Axle (SOA) swap and Artec Modular Truss.
U-bolts are eliminated to increase strength by spreading load to 4 bolts instead of 2.
Truss end caps are included for seamless transition between Artec Modular Trusses.
Three leaf pin positions allow for one inch adjustments forward or back.
The bracket's style gives a unique, custom one-off look typically associated with high dollar fabrication shops.
No longer are there brackets that resemble modified pieces of angle iron or c-channel; instead, they are formed pieces of artwork to display.
Details: Sold as Each Angle: 10 degrees Side: Front Driver/Rear Passenger Side Is Based On Front Application (i.e.
Front Driver) One inch separation exists between each hole for adjustability.
A floating top gusset allows for any height frame.
The frame plate adds strength and provides a surface to weld the bracket to with jigs for easy assembly.
The mounting width is 2.625 inches with a 9/16 inch bolt hole for common sized Cartridge Joints (Johnny, Flex, Ballistic, etc).
It can be drilled out to a larger hole size for 1.25 inch rod ends with spacers.
Modifications can be easily made for smaller joints.
Made from 1/4 inch thick boxed steel plate for strength and impact resistance.
Grease fitting access is located on top to allow easy maintenance of your most abused joint.
The skid plate at the bottom of the bracket wraps around the joint, protecting it from direct impact and reducing premature wear on the joint.
This results in longer life and fewer replacements.
The skid plate design does not restrict joint movement.
