Auburn Gear Ected Max Differential Open To Lock 545033 Dana 80 35 Spline 4.10 Gear Ratio Up Auburn Gear Ected Max Differential

More about this item : Auburn Gear Ected Max Differential Open To Lock 545033 Dana 80 35 Spline 4.10 Gear Ratio Up Auburn Gear Ected Max Differential

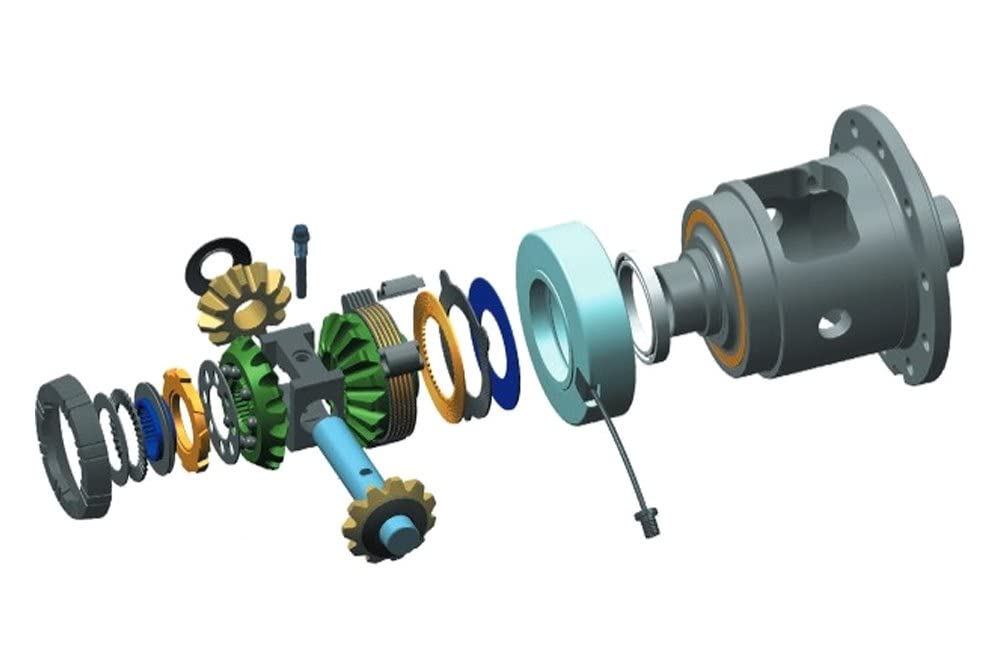

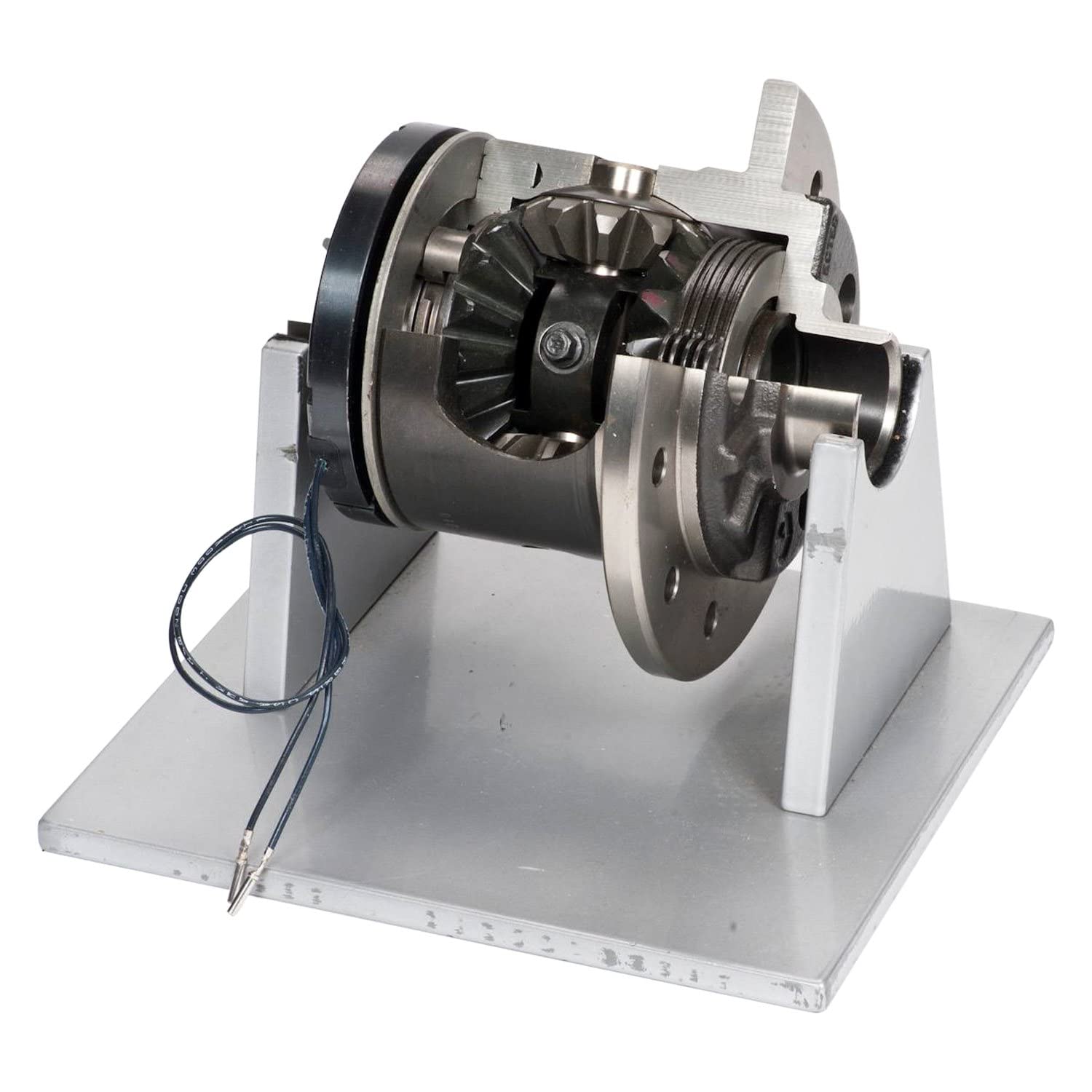

Auburn Gear ECTED Max Rear Open to Lock Differential (545033).

The ECTED Max is a selectable traction device; an on/off switch is mounted near the driver.

When in the 'off' position, the clutch pack, located behind the side gear, provides the limited slip mode.

As torque increases, the forces separating within the differential gears increase, causing the clutch pack to compress and provide bias torque to the high traction wheel - your performance limited slip differential action.

When in the 'on' position, current is sent to the electromagnetic coil.

The coil is held by a clip that fits over one of the bearing cap bolts, making it non-rotational.

The coil rides on a ball bearing, which spins with the differential case.
