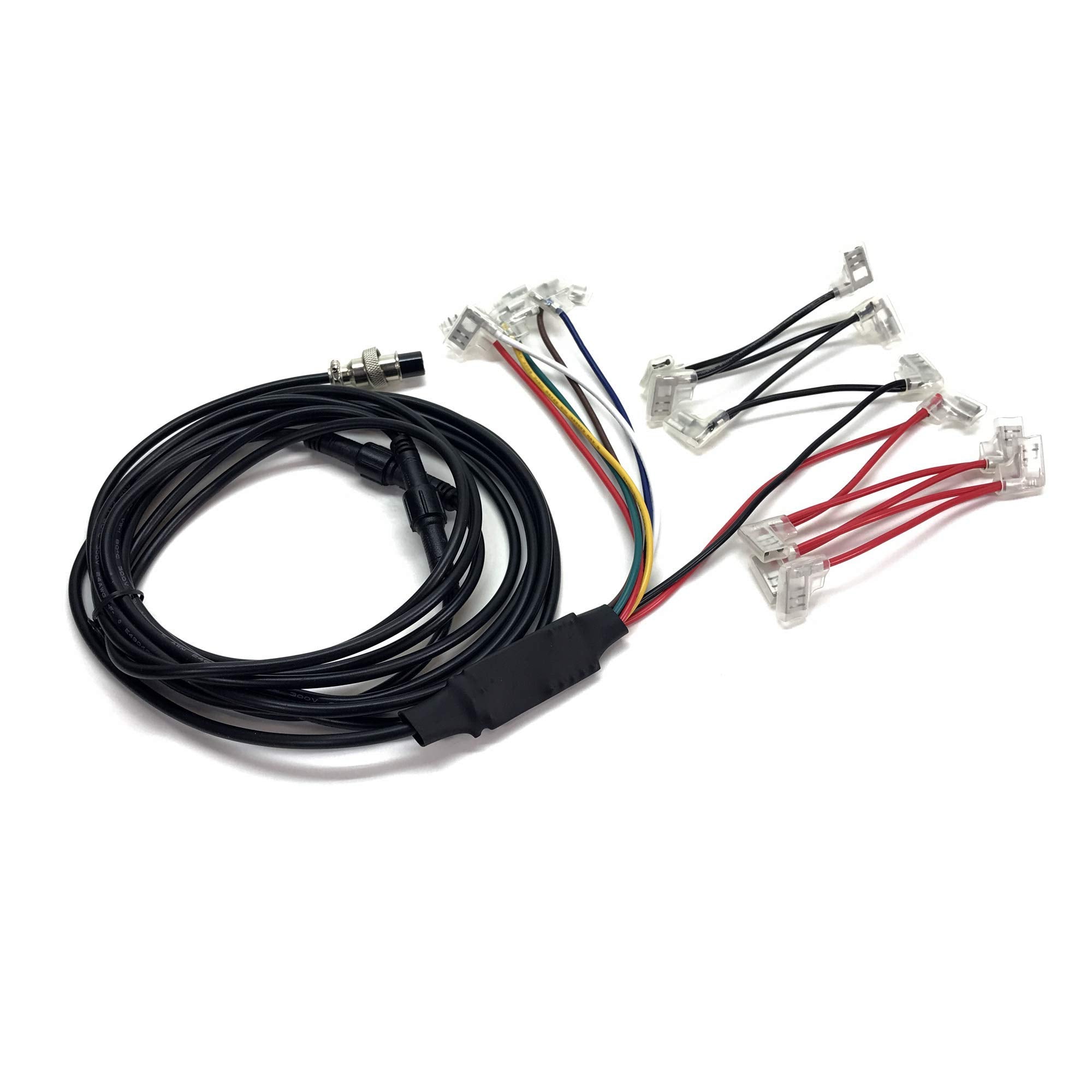

Connect our TRIGGER ACS DIN Connector Harness for manual control of conventional rocker switches using the built-in DIN connector on the Trigger 6 Shooter or 4 Plus.
Important: Before inserting the connector, ensure power is off when installing the DIN cable to the controller.
The yellow wire on the controller is power on/off; ensure it has no power before connection.
The harness and DIN connector allow you to use conventional rocker switches with Trigger.
For example, if you have accessories wired in the traditional way with mechanical relays and a nest of wires, you can remove the mechanical relays and wiring currently powering your accessories.
Connect the conventional rockers to the Trigger via the DIN harness, and then connect the accessories to the Trigger.
The conventional rockers send a signal through the DIN harness to the Trigger, which controls power distribution to the accessories.
Make sense?
The end result is a cleaner installation, eliminating the relay/wiring mess.
You now have four different ways to control your accessories through the Trigger: 1) buttons on the control box, 2) RF remote, 3) App on your phone, and 4) conventional rockers with the DIN harness.
Wire Color Codes: Ch.
1 = Red Ch.
2 = Green Ch.
3 = Blue Ch.
4 = Yellow Ch.
5 = White Ch.
6 = Brown Ground = Black.
