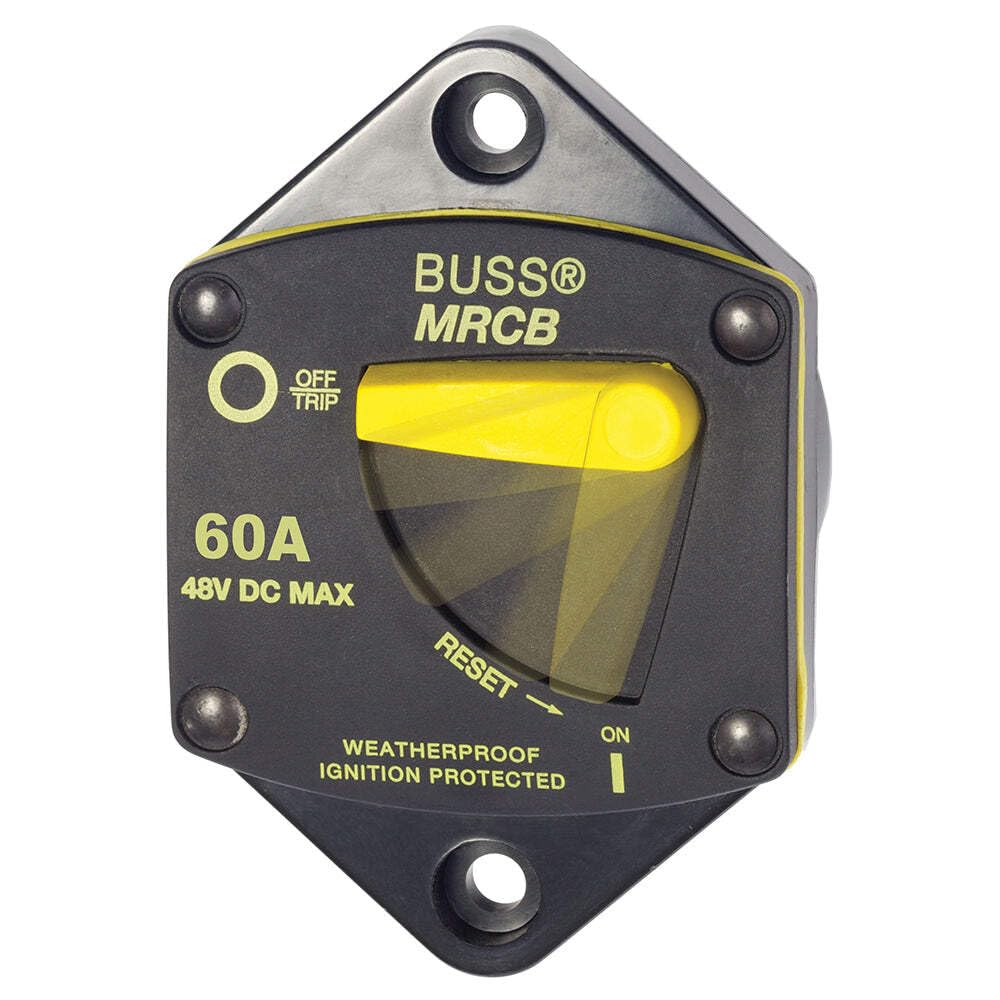

187 - Series Thermal Circuit Breakers - Panel Mount 60 Amp Circuit Breaker PN: 7040.
Features: Combines circuit protection and switching into a single device.
All components meet SAE J1171 external ignition protection requirements.
Clear, single lever operation.
'Trip Free' design cannot be held 'ON' during fault current condition.
Waterproof.
Recessed mounting holes for a clean appearance.
Self-trimming case eliminates the need for mounting panels or trim bezels.
Round case permits easy installation with a standard sized hole saw.
Large clearance around terminal studs accepts heavy gauge wire lugs.
Robust 5/16 terminals provide high torque connections.
Large lever with vertical/horizontal orientation provides indication of trip status.
Ignition protected - safe for installation aboard gasoline powered boats.
Specifications Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @ 12 Volts DC, 3,000 Amperes @ 24 Volts DC, 1,500 Amperes @ 42 Volts DC Operating Temperature Range: -25C° to +82C°.
