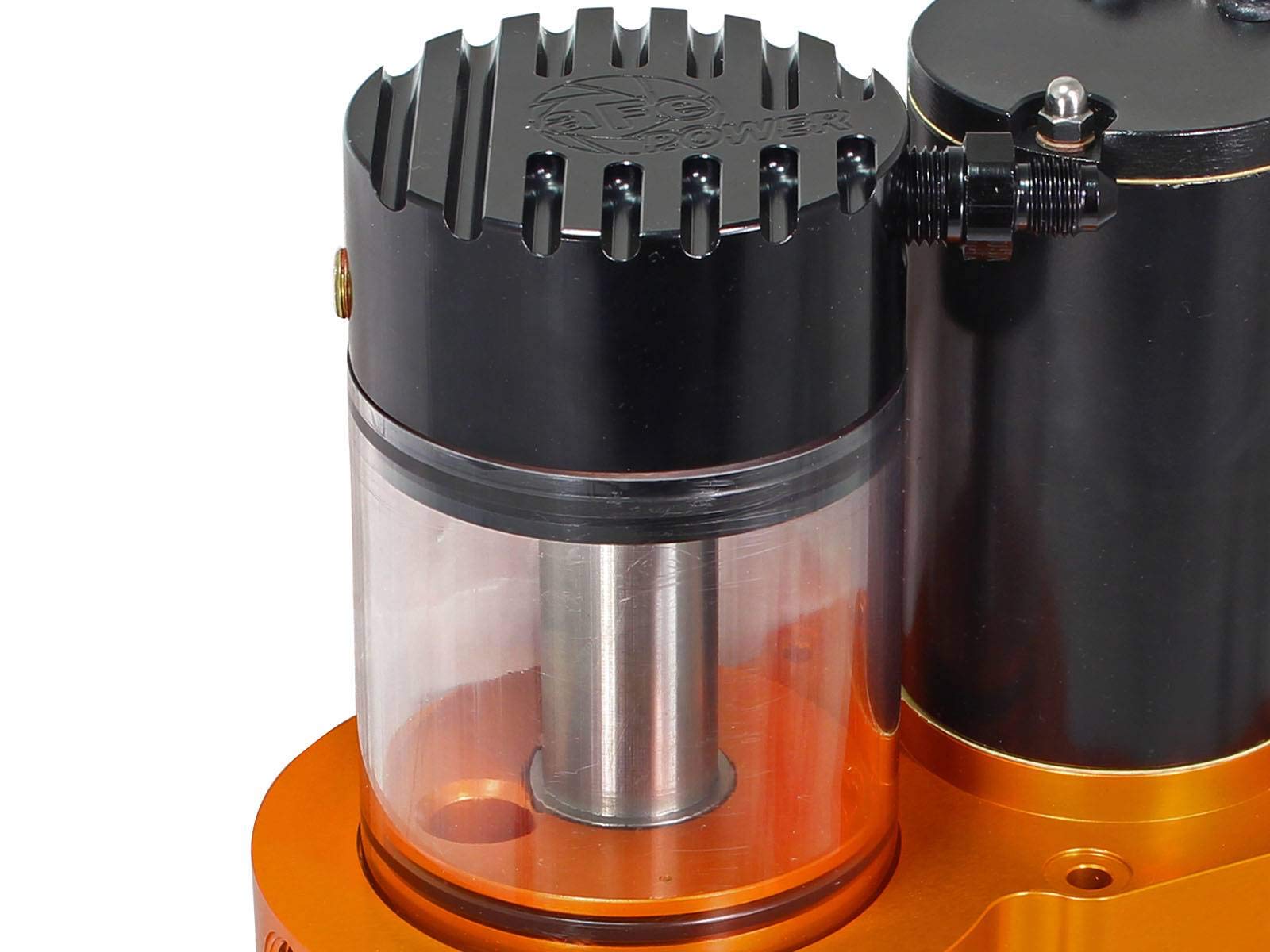

Clear High-Impact Polycarbonate Sight Glass: Visual inspection of fuel is allowed.

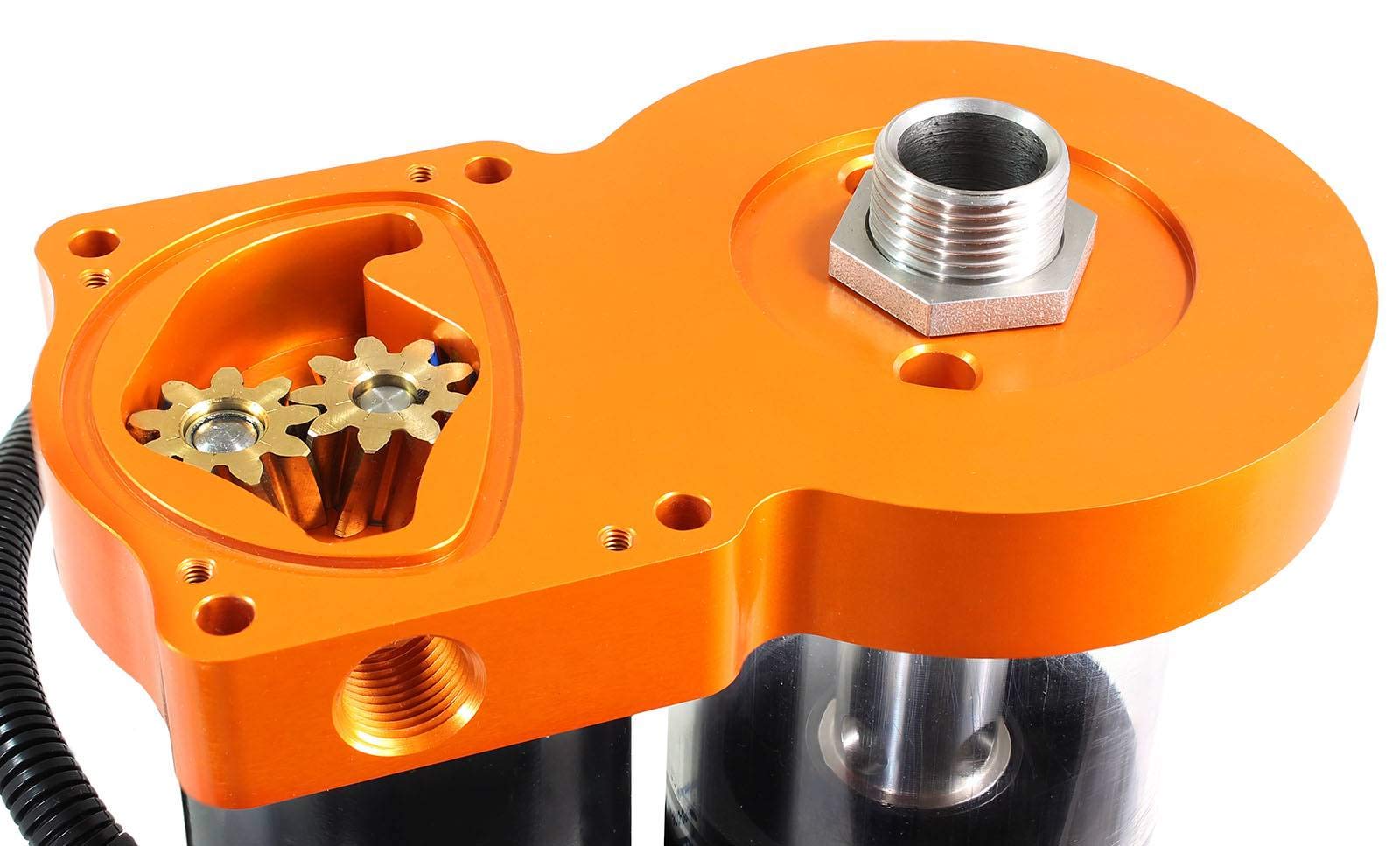

Helical Bronze Spur Gears: More forgiving of contaminants than steel gears are bronze gears.
The helical spur gear design runs quieter than straight cut gears.
Billet 6061-T6 Aluminum Manifold: Concerns with porosity are eliminated with cast aluminum.
"Marine Grade" Motor: Protected against powerful water jets and dust intrusion.

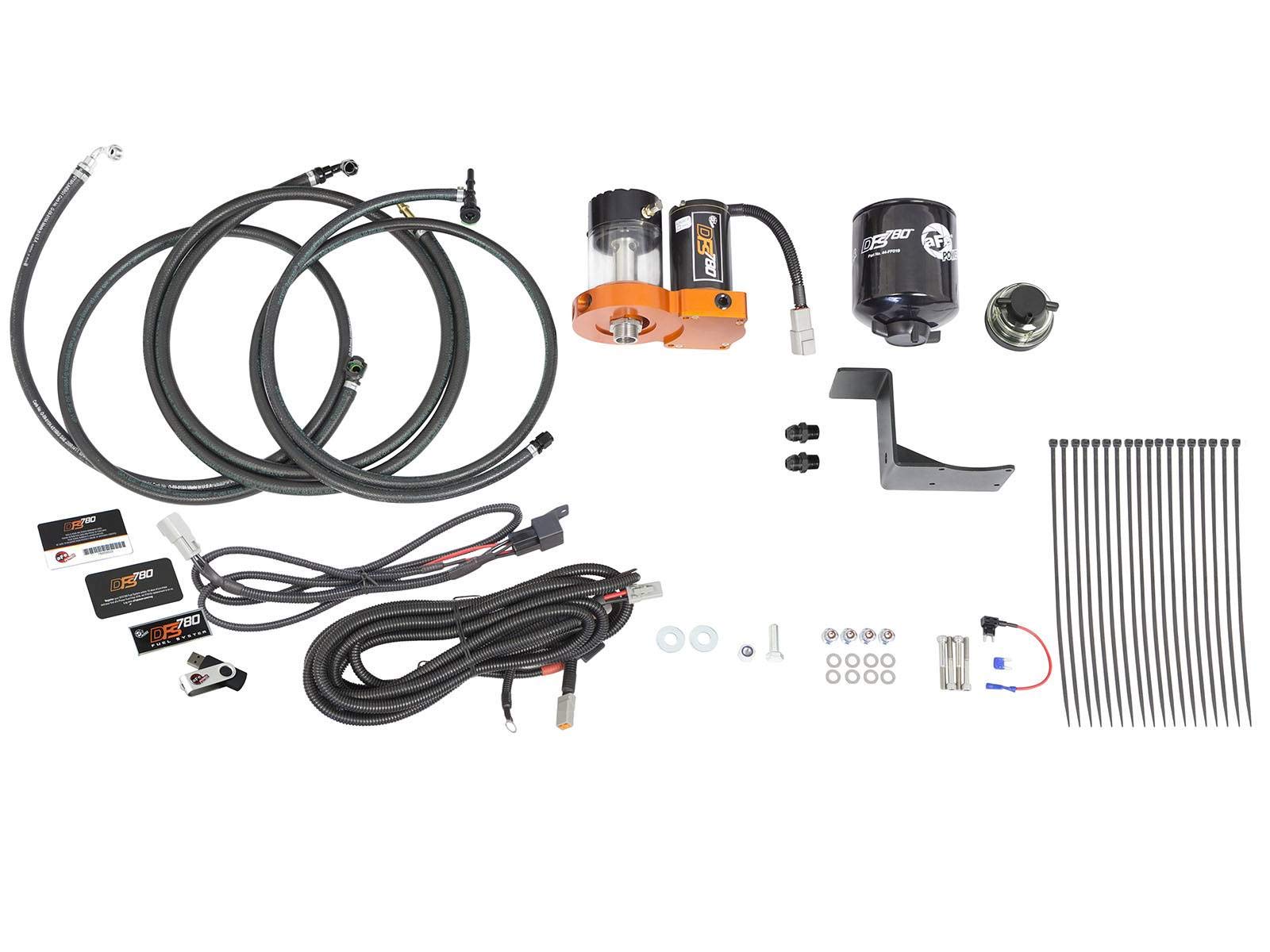

Plug & Play Installation: Directly to battery attaches the supplied harness and utilizes Deutsch weather-proof connectors.

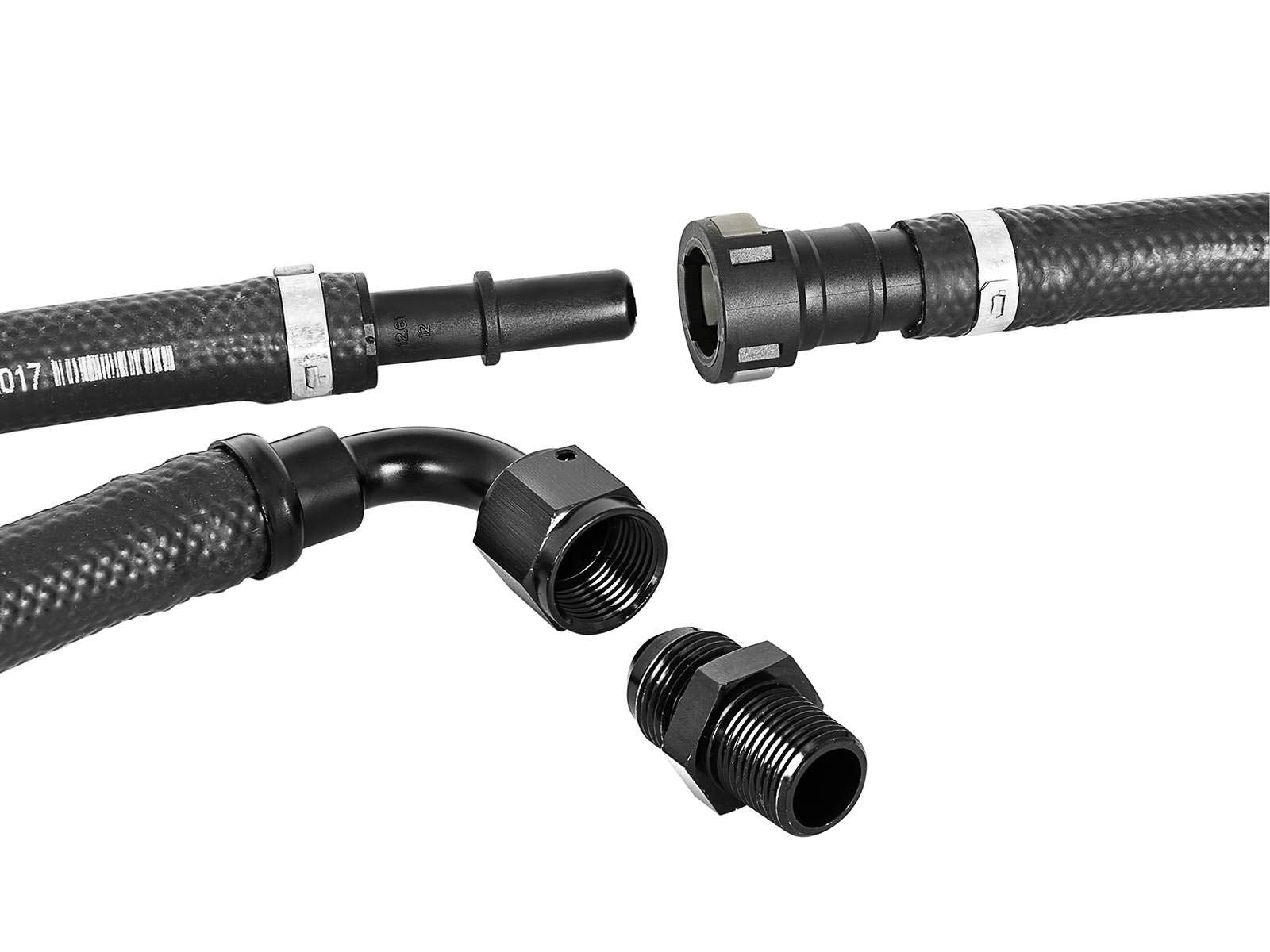

Modifications or cutting of the stock fuel lines are not required.
The vehicle can easily be returned to stock.
Relay Controlled: Your ignition powers the DFS780 and can be run in parallel with the stock fuel transfer pump.
PEEK Bearing Wear Surfaces: The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.
Contoured CNC Machining Of Manifold Passages: Flow through the manifold is enhanced to reduce pressure drop due to flow restrictions.
Direct Bolt-on Steel Mounting Bracket: Heavy duty bracket mounts to the frame and utilizes existing holes to secure.
Fuel Pressure Gauge Port: 1/8" NPT port allows an external pressure gauge to monitor fuel pressure to be attached.
O.E Quality Viton Seals: Diesel and biodiesel fuels are compatible.
Note: This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.
