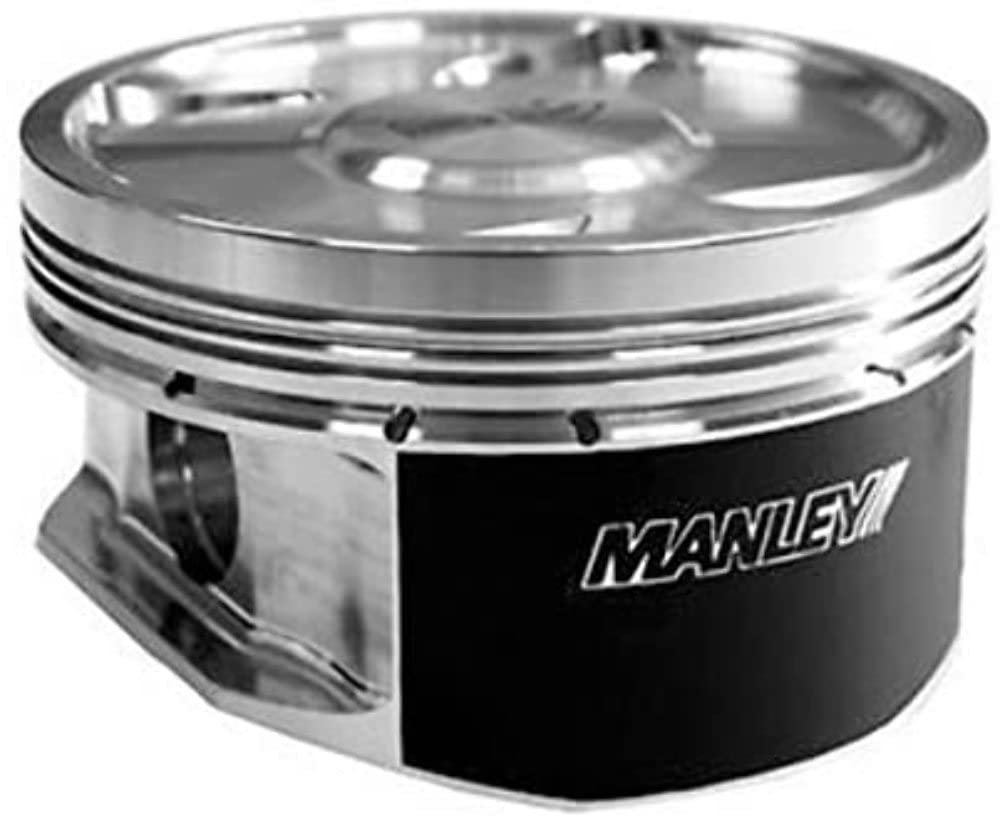

Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c

$1,131.06 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Manley
Manley 696700-8 BB-Chevy Inverted Dome Pistons have a 4.500 bore and -20cc dome volume.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c
Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c
View Detail
Type
Forged
Title
Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c
Price
$1,131.06 USD
Vendor
Manley
Description
BB-Chevy Inverted Dome Pistons 4.500'' Bore -20cc Dome Volume 541ci - 6.385'' Rod w/4.250'' Stroke (Std Deck) 604ci - 6.535'' Rod w/4.750'' Stroke (Tall Deck) 1.270'' Comp.Height 8/pkg.Technical Specs: Compression Ratio (4.500'' Bore x 4.250'' Stroke): 8.6:1 (112cc); 8.3:1 (118cc); 8.0:1 (124cc) Compression Ratio (4.500'' Bore x 4.750'' Stroke): 9.5:1 (112cc); 9.1:1 (118cc); 8.8:1 (124cc) Compression Height: 1.270'' Piston Weight: 621 grams Inverted Dome Top: -20cc Pin Size: 0.990'' dia, 2.930'' long, .180'' wall (170 grams) Spiral Locks: .042'' wide (4 per piston) Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .006'' measured 1.100'' from bottom of the oil ring Valve Notch: .300'' Intake Exhaust Valve: +.090''

More about this item : Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c

BB-Chevy Inverted Dome Pistons 4.500'' Bore -20cc Dome Volume 541ci - 6.385'' Rod w/4.250'' Stroke (Std Deck) 604ci - 6.535'' Rod w/4.750'' Stroke (Tall Deck) 1.270'' Comp.

Height 8/pkg.

Technical Specs: Compression Ratio (4.500'' Bore x 4.250'' Stroke): 8.6:1 (112cc); 8.3:1 (118cc); 8.0:1 (124cc) Compression Ratio (4.500'' Bore x 4.750'' Stroke): 9.5:1 (112cc); 9.1:1 (118cc); 8.8:1 (124cc) Compression Height: 1.270'' Piston Weight: 621 grams Inverted Dome Top: -20cc Pin Size: 0.990'' dia, 2.930'' long, .180'' wall (170 grams) Spiral Locks: .042'' wide (4 per piston) Ring Grooves: 1/16'' Top; 1/16'' Middle; 3/16'' Bottom Piston Clearance: .006'' measured 1.100'' from bottom of the oil ring Valve Notch: .300'' Intake Exhaust Valve: +.090''

Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c
Key Features
  • BB-Chevy Inverted Dome Pistons with 4.500'' bore
  • Dome volume of -20cc
  • Compression height of 1.270''
  • Piston weight of 621 grams
  • Pin size of 0.990'' diameter and 2.930'' long
  • Ring grooves of 1/16'' top, 1/16'' middle, and 3/16'' bottom
Technical Specifications
  • Length : 9.0 lb
  • Width : 9.0 lb
  • Height : 7.75 lb
  • Weight : 10.0 lb
Product Identifiers
  • ASIN B07H9H8Y83
  • UPC: 807298028880
Shipping Information
  • Ships From : United States
  • Brand : Manley

Frequently Asked Questions About : Inverted Dome Manley 696700-8 BB-Chevy Pistons 4.500 Bore -20cc Dome Volume 541c

01 What is the bore size of the pistons?

The bore size of the pistons is 4.500''.

02 What is the dome volume of the pistons?

The dome volume of the pistons is -20cc.

03 What is the compression height of the pistons?

The compression height of the pistons is 1.270''.
