Sensor performance specifications include an accuracy of more than 2 degree centigrade / 3.6 degree Fahrenheit and an operating temperature range of -40 Celsius to 200 Celsius / -40 Fahrenheit to 392 Fahrenheit.
The dissipation constant is 12 megawatt per degree centigrade, and the ratio of the change in the power dissipation of the sensor to the resultant temperature change of the Thermistor is at a specified ambient temperature.
Silicone oil is the test medium, and the thermal time constant is 10 sec.
This is the time required for the sensor to achieve 63.2 percent of its steady state value when subjected to a step change in ambient temperature [Tc= (Tf-Ti) x63.2%+Ti].

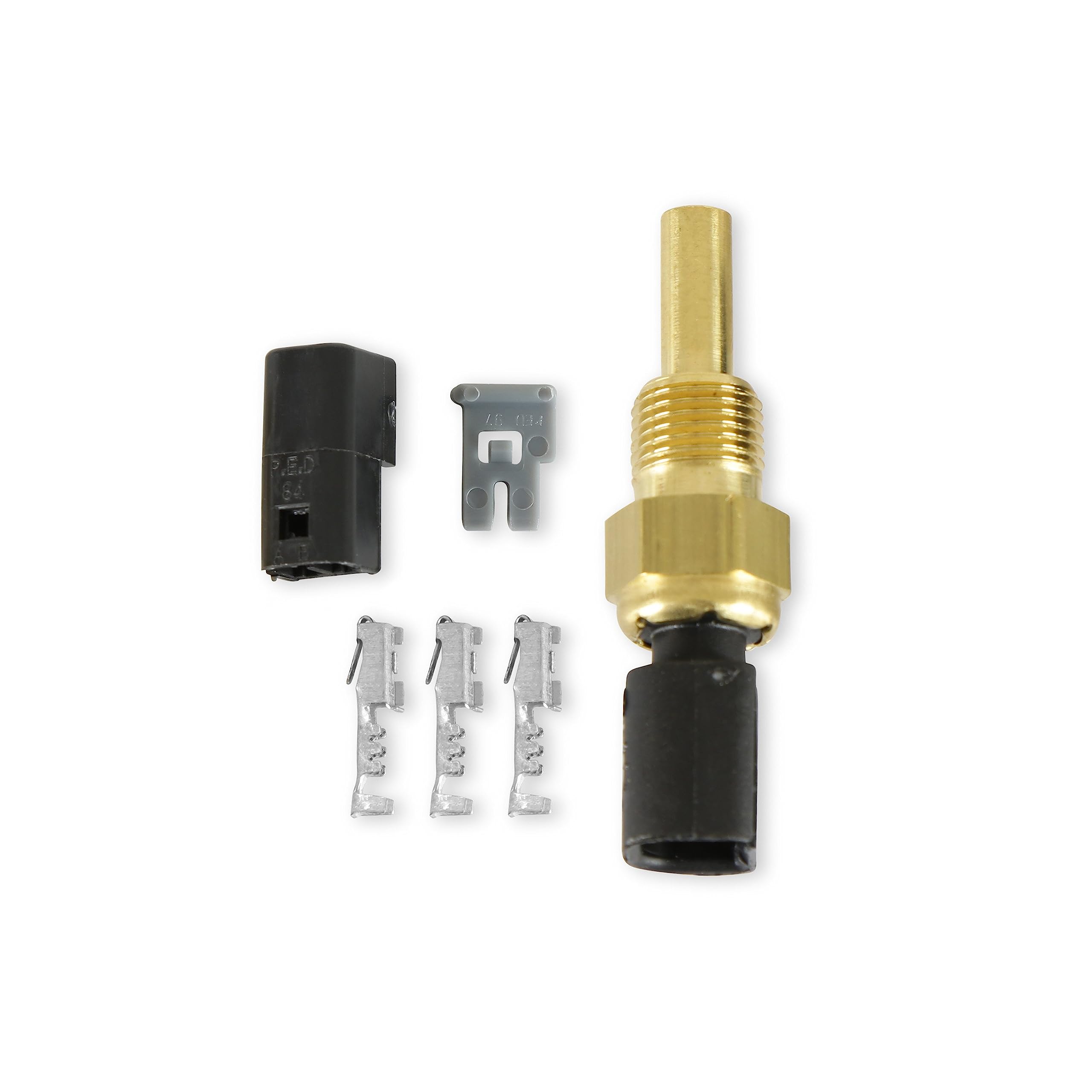

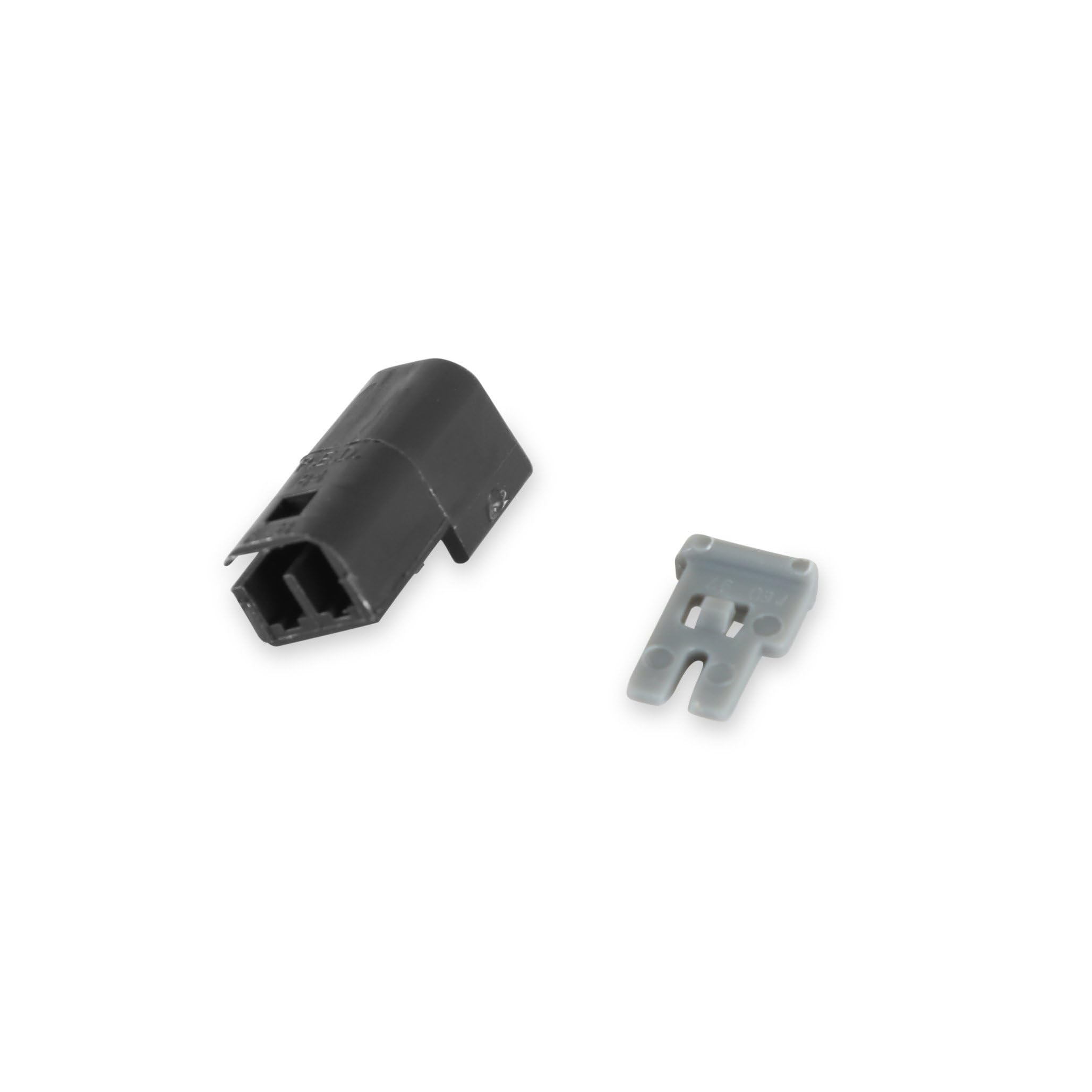

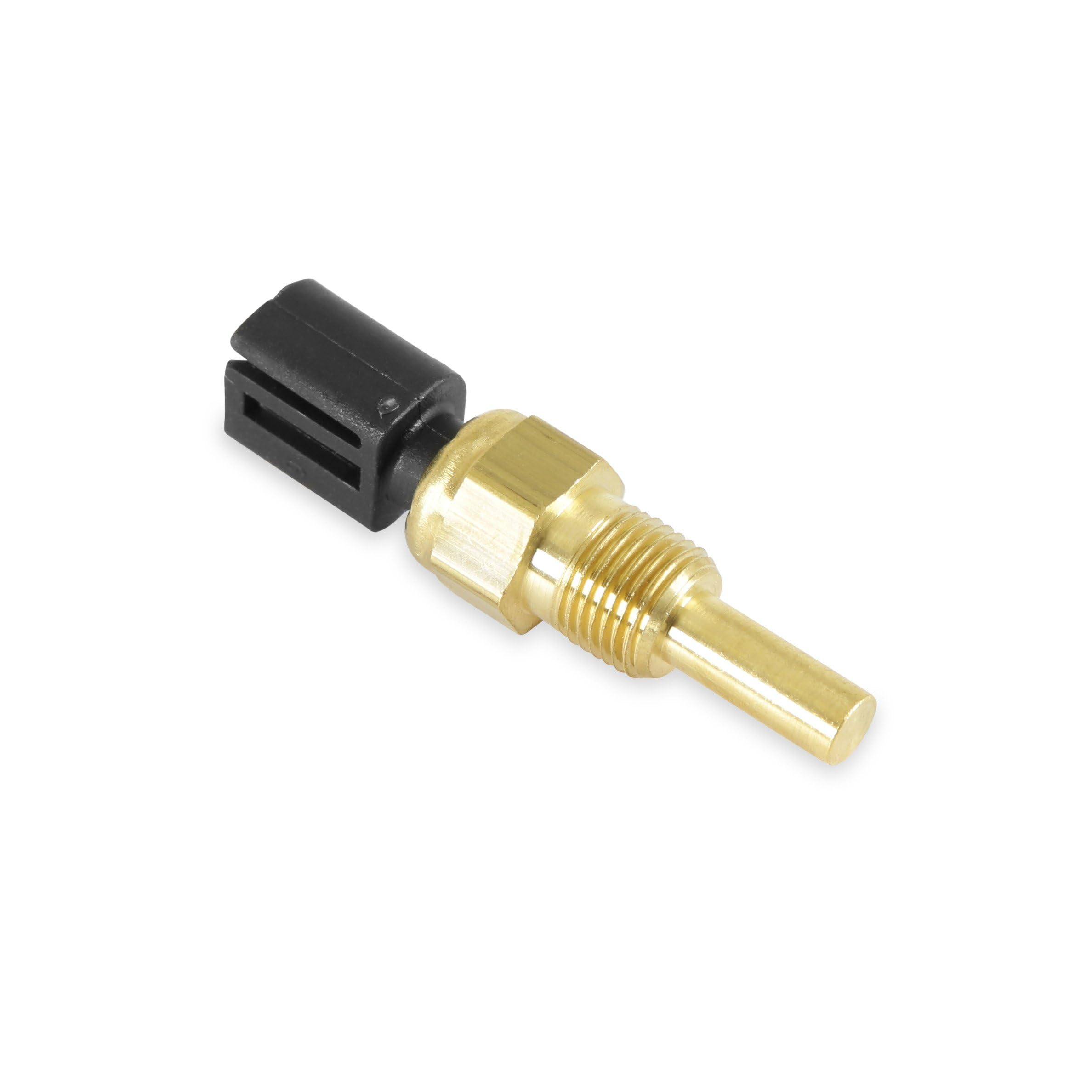

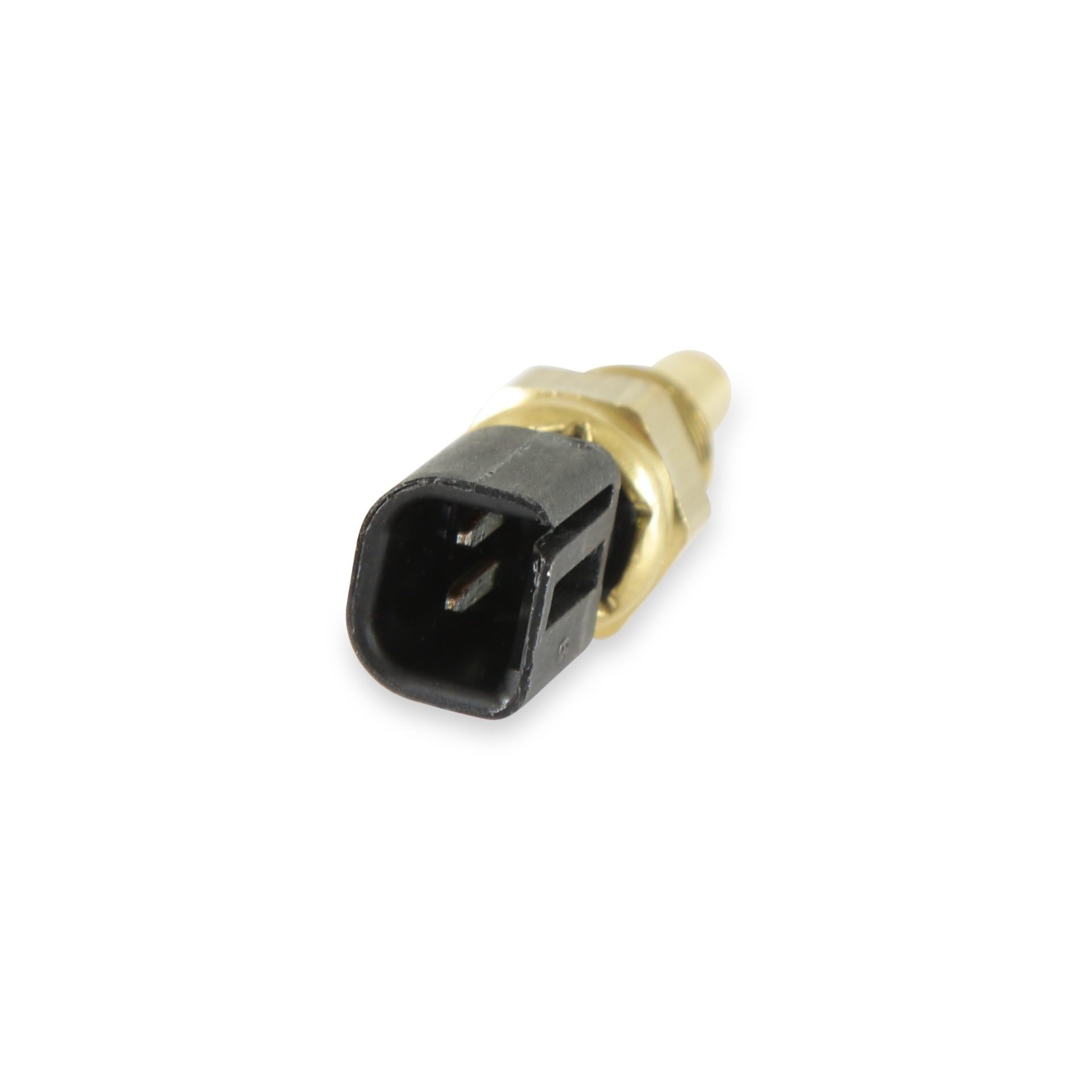

The sensor body material is brass, with a thread size of 1/8 inches -27 PTF, a hex size of 1/2 inches, an installation torque of 13.5Nm / 10 feet-pounds, a weight of 12.2 grams, a supply current of 5 Volt DC, and the electric termination includes a connector with a mating connector, pins, and pin lock.
